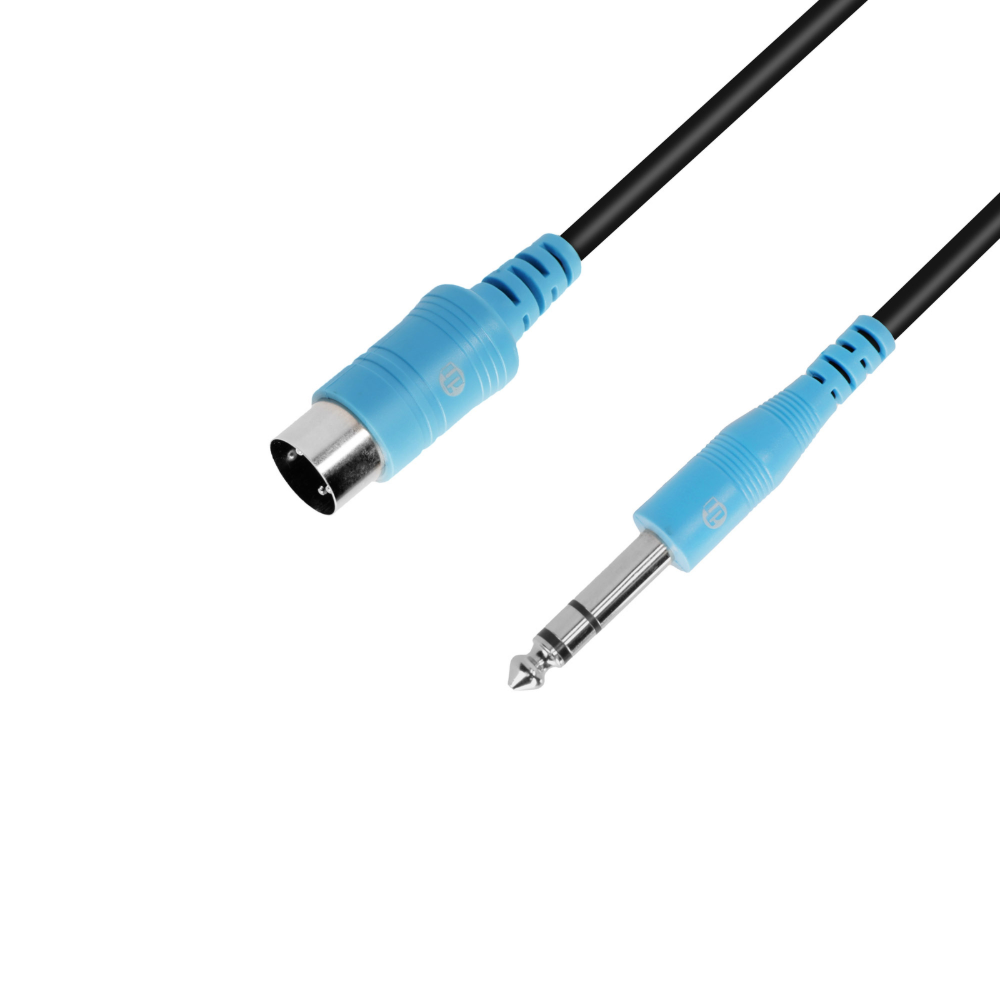

3 STAR BV MIDI

• General & Construction
  • Series: 3 STAR BV MIDI
  • Available lengths: 0.6 m / 0.9 m / 1.5 m / 3 m
  • Cable sheath: Flexible PVC (5 mm diameter)
  • Color: Black
  • Standard: MIDI Association TRS/MIDI Type A
• Connections & Materials
  • Connector 1: MIDI male (5-pin DIN)
  • Connector 2: 6.3 mm Jack TRS (Stereo Tele)
  • Finish: Nickel-plated contacts for optimal durability
• Conductors & Environment
  • Material: OFC (Oxygen Free Copper)
  • Conductor area: 2 x 0.14 mm²
  • Operating temperature: -20 °C to +70 °C

Description of the product

3 STAR BV MIDI - The bridge between classic and modern MIDI

As music equipment becomes increasingly compact, the MIDI standard has evolved. Since MIDI transmission in practice only uses three poles, the idea was born to replace the bulky 5-pin DIN connectors with more flexible TRS (telephoto) jacks. 3 STAR BV MIDI is the adapter cable that allows you to connect your classic synthesizers and controllers with modern equipment that uses 6.3 mm telephoto jacks for MIDI.

The cable complies with the official Type A standard set by the MIDI Association. This is crucial, as incorrectly wired cables (Type B) will not work with most major manufacturers on the market. With oxygen-free copper (OFC) conductors, you can rely on your clock signals, note data and program changes to arrive with perfect timing.

Whether you need a short 0.6m patch cable for the pedalboard or a longer 3m cable to reach between different shelves in the studio, the 3 STAR series offers a robust solution with molded connectors and reliable strain relief.
