3 STAR LOOM 8 FV

• General & Construction
  • Series: 3 STAR LOOM 8
  • Type: 8-pair balanced multicore
  • Available lengths: 3 m / 5 m
  • Cable diameter: 12,8 mm
  • Cable sheath: Flexible PVC (Black)
• Connections & Identification
  • Side 1: 8 x XLR 3-pin Female
  • Side 2: 8 x 6.3 mm Jack TRS (Stereo Tele)
  • Material: Nickel plated contacts (Adam Hall)
  • Marking: Individually numbered channels (print on sleeve) + color coding on TRS connectors
• Conductors & Environment
  • Configuration: 8 x 2 x 0.22 mm²
  • Material: OFC (Oxygen Free Copper)
  • Operating temperature: -20 °C to +70 °C

Description of the product

3 STAR LOOM 8 FV - Organized and balanced signal transmission

3 STAR LOOM 8 FV is an eight-channel studio loop or subcore designed for environments with moderate mechanical stress. This cable is the ultimate problem solver for connecting, for example, a sound card to external preamps, or for routing signals between mixing desks and rack equipment without creating a cluttered mess of cables.

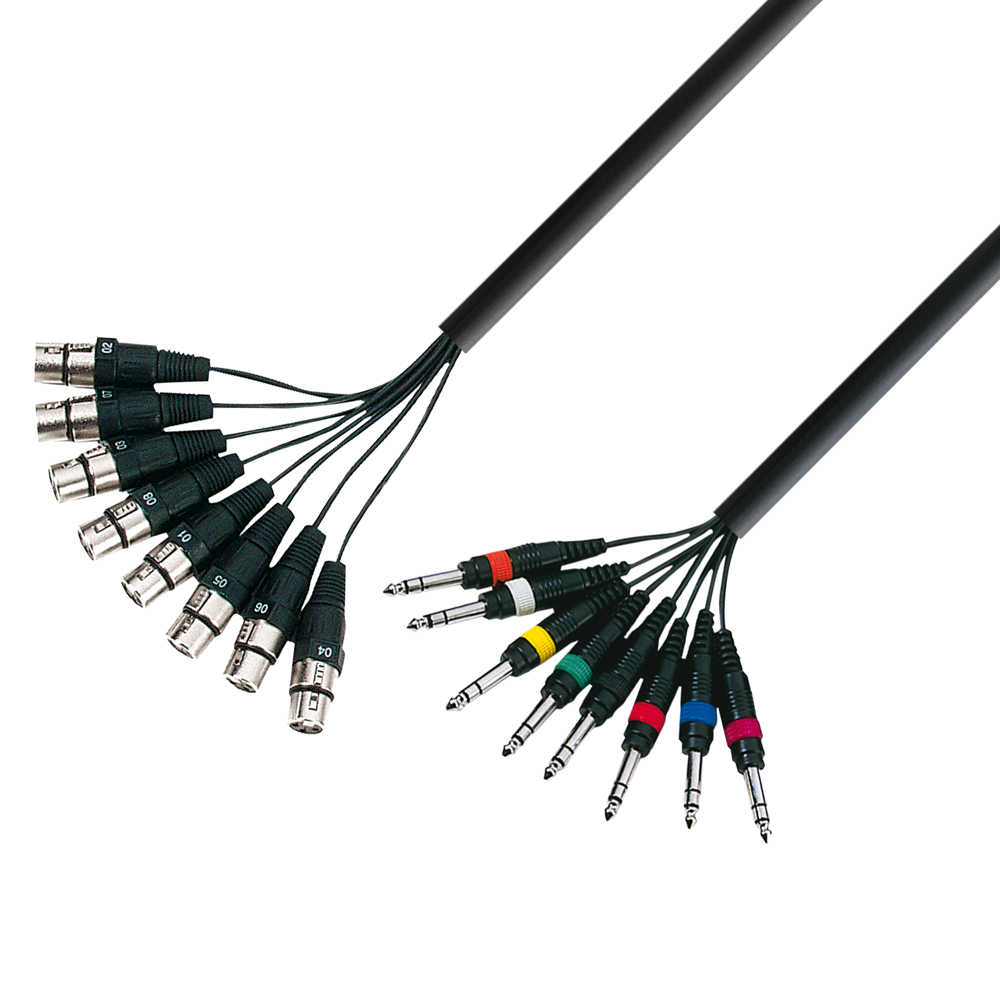

The cable is equipped with eight robust XLR female connectors at one end and eight 6.3 mm TRS (stereo) connectors at the other. To facilitate quick and error-free connection, each channel is clearly numbered on the connector sleeve. In addition, the TRS connectors have complementary color markings, making it easy to identify the correct channel even in dark studio environments or behind a cramped rack.

Thanks to the use of oxygen-free copper (OFC), the highest possible signal integrity is maintained across all eight channels, which is essential for noise-free recordings and crystal-clear sound. The flexible PVC jacket makes the cable easy to handle and pull neatly along floors or in cable ladders.
