4 STAR ECON CAT5E

• General
  • Cable length: 3 m - 10 m
  • Cable jacket: TPU (Thermoplastic Polyurethane) - Highly flexible & LSZH
  • Cable diameter: 6,4 mm
  • Color: Black
• Network performance
  • Category: Cat.5e
  • Compatibility: EtherSound compatible
  • Construction: 4 x 2 x 0.15 mm² (OFC)
  • Capacitance: 60 pF/m
• Contacts
  • Model: Adam Hall K4CCAT5YS (RJ-45 with etherCON® housing)
  • Function: Removable connector housing for connection in standard RJ45 sockets
  • Feature: Professional strain relief and locking mechanism
• Conductors & Shielding
  • Material: OFC (Oxygen Free Copper)
  • Shielding: Braided copper shield

Description of the cable

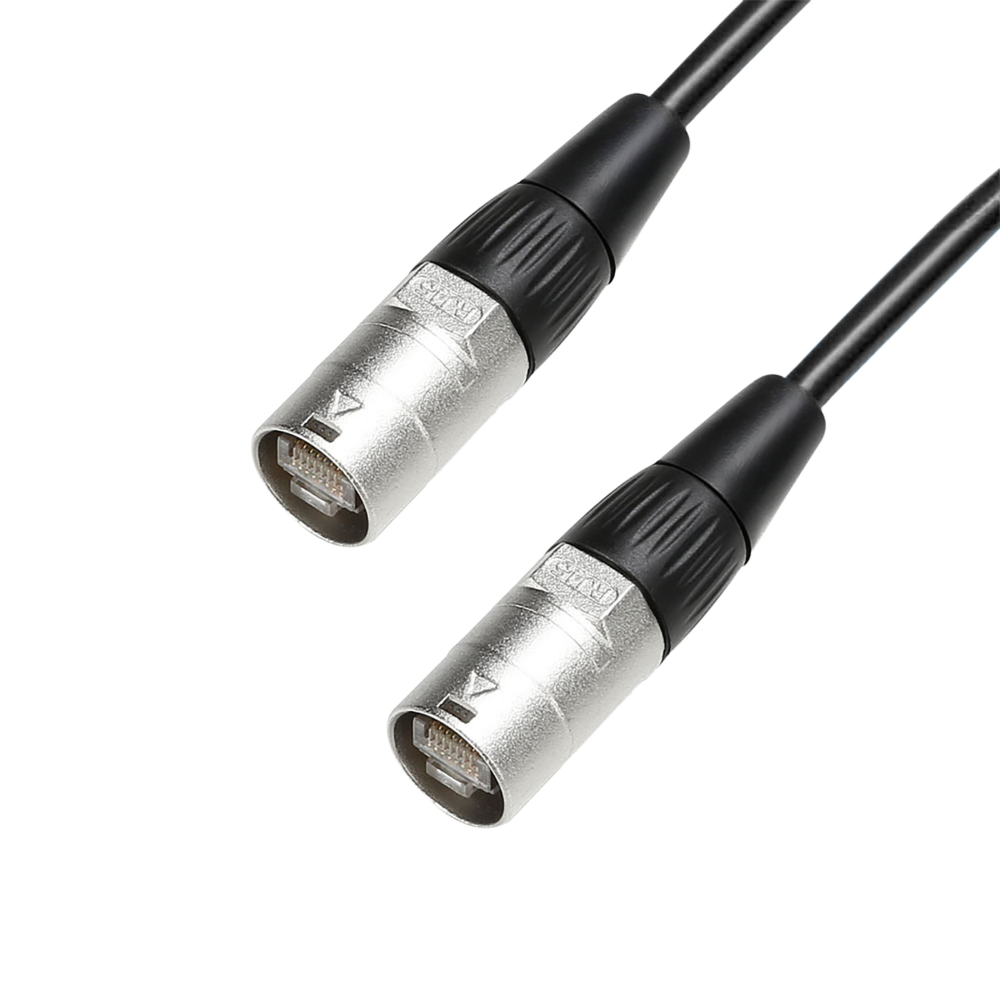

4 STAR ECON CAT5E - Highly flexible network cable for EtherSound and stage use

4 STAR ECON CAT5E is a professional network cable from our 4-star series, specially designed for the unique requirements of live events and stage technology. Thanks to its TPU sheath, the cable offers exceptional flexibility similar to a regular rubber cable, making it incredibly easy to roll in and out, even in cold environments.

One of the smartest features is the removable etherCON® sheath. It allows you to use the cable in robust, lockable chassis connectors on stage, but quickly unscrew the housing if you need to connect it to a regular router, switch or laptop with standard RJ45 jacks.

The cable is fully EtherSound compliant and equipped with a braided copper shield that effectively eliminates external interference. With oxygen-free copper (OFC) conductors and a low capacitance, a stable and secure data transmission is guaranteed for both audio and control signals. In addition, it is LSZH (Low Smoke Zero Halogen) rated, making it safe for fixed installations in public premises.
