3 STAR BV MIDI

Product benefits

✓ TRS MIDI cable (Type A) - industry standard for modern MIDI communication

✓ Connects devices with 6.3 mm jack to traditional 5-pin DIN devices

✓ Correctly wired according to Type A standard: Tip=5, Ring=4, Sleeve=2

✓ Available in several lengths (0.6m to 3m) to fit everything from pedalboard to studio

✓ High quality molded connectors for reliable data transmission without latency

Specifications

General
- Cable length: 0.6 m - 3 m
- Cable sheath: PVC (Polyvinyl chloride)
- Cable diameter: 5 mm
- Color: Black
Connectors
- Connector 1: MIDI 5-pin male
- Connector 2: 6.3 mm Tele (TRS) male
- Surface treatment: Nickel plated contacts
Conductors & Standard
- Material: OFC (Oxygen Free Copper)
- Conductor area: 2 x 0.14 mm²
- Standard: MIDI Association TRS/MIDI Type A
Environment/Ambient
- Operating temperature: -20 - 70 °C

Description of the device

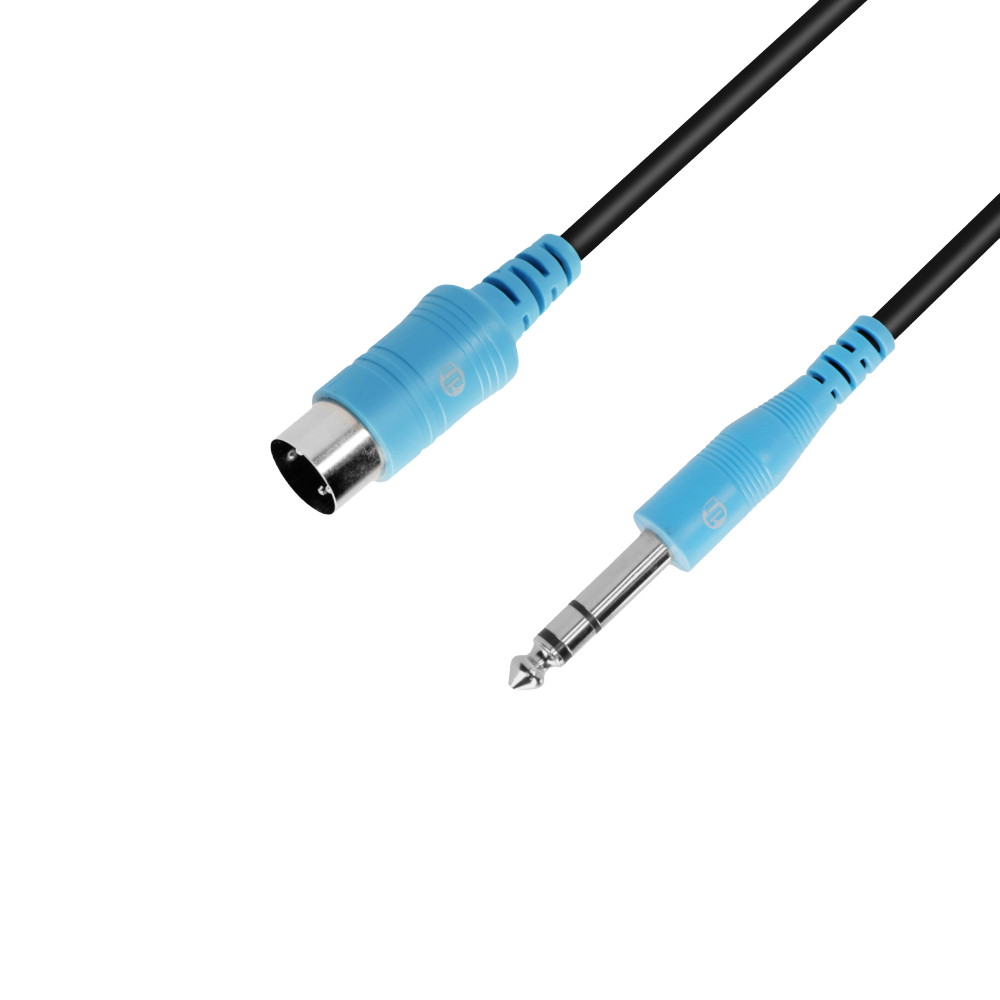

3 STAR BV MIDI - The bridge between classic and modern MIDI

In MIDI transmission, traditionally only three poles are used, even in the classic 5-pin connectors. This led to the innovation of equipping modern, more compact devices with the less sensitive TRS telecom connectors, as these too can handle three poles.

To enable you to connect your faithful 5-pin MIDI devices to new devices with tele inputs, we have developed this handy adapter cable. 3 STAR BV MIDI naturally follows the official TRS/MIDI Type A standard defined by the MIDI Association, ensuring full compatibility between your devices.

The cable is made with Oxygen Free Copper (OFC) conductors for a stable data transmission without delay or signal errors. Whether you're connecting a modern synth to a classic sequencer or an effects desk to a controller, this cable gives you a robust and reliable solution. Available in multiple lengths to suit your studio or stage rig.
