CABLESPower CablesHybrid cables5 STAR H PCON A

5 STAR H PCON A

Product Highlights

✓ Premium hybrid cable for simultaneous transmission of power and audio, made in the EU

✓ Equipped exclusively with original Neutrik® connectors for highest quality

✓ Audio conductors with silver-plated XLR connectors and power supply via powerCON®

✓ powerCON® connectors that can be switched under load according to the highest industry standard

✓ Powerful construction: 0.22 mm² audio conductor and 2.5 mm² power conductor

✓ Sheath of special soft PVC for maximum flexibility

✓ Supplied with Velcro and transparent shrink tubing for labeling

Specifications

General
- Cable length: 1.5 m - 10 m
- Split length: 40 cm (at the ends)
- Total diameter: 17 mm
- Color: Black
Audio Connections (Audio)
- Connector 1: XLR 3-pin female (Neutrik NC3FXX-BAG)
- Connector 2: XLR 3-pin male (Neutrik NC3MXX-BAG)
- Contact surface: Silver plated
- Conductors: 2 x 0.22 mm² OFC (Oxygen Free Copper)
- Shielding: Copper spiral shield
Power connections (Power)
- Contact 1 (Output): Neutrik powerCON® Grey (NAC3FXXB-W-L)
- Contact 2 (Input): Neutrik powerCON® Blue (NAC3FXXA-W-L)
- Conductor area: 3 x 2.5 mm² OFC (Oxygen Free Copper)
- AWG: 13
Technical data
- Capacitance: 55 pF/m
- Conductor impedance: 85 Ohm/km
- Cable sheath: Durable PVC

Description of the cable

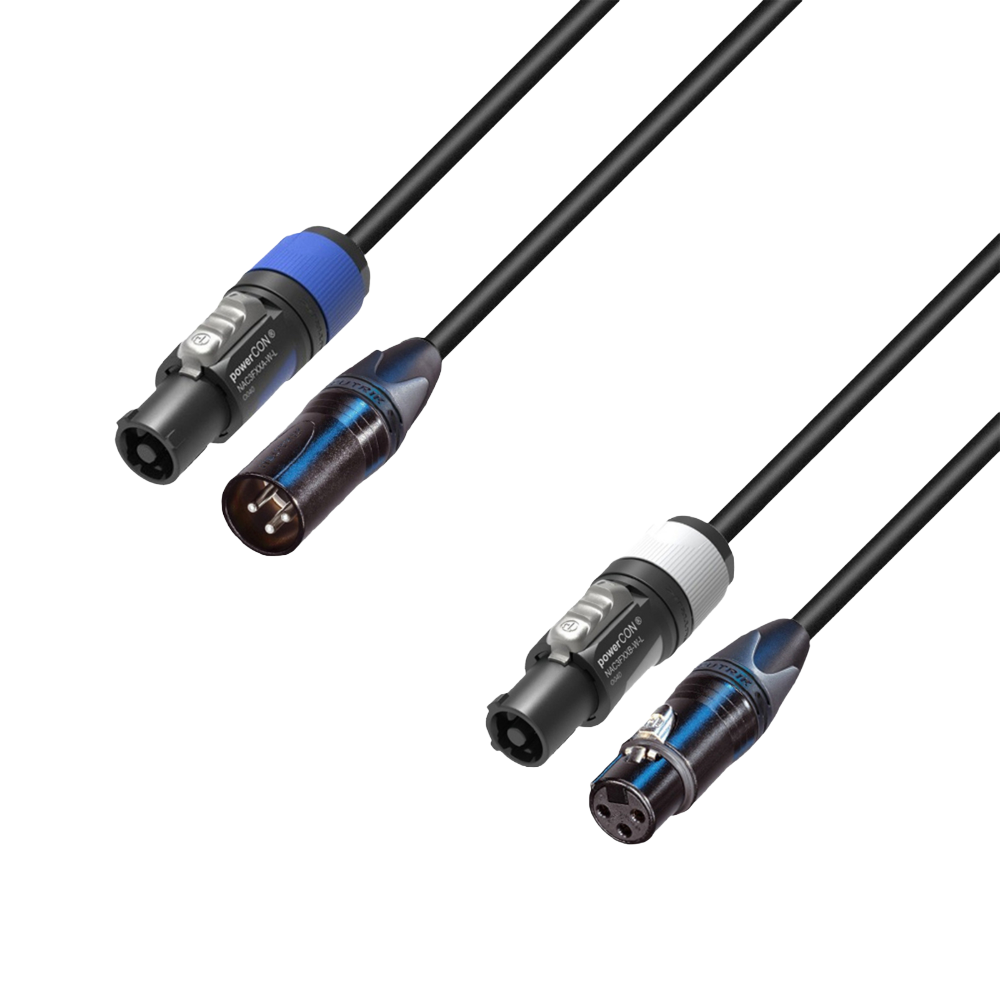

5 STAR H PCON A - Professional hybrid cable for audio and power

5 STAR H PCON A is a high-performance hybrid cable from our 5-star series, designed for audio engineers who require maximum efficiency and order in their rigs. This cable allows simultaneous transmission of both balanced audio signals and power, drastically reducing the number of cables on the stage floor and simplifying the rigging of active systems.

To ensure world-class signal transmission, the cable is equipped with original Neutrik® connectors. The heavy-duty power section with 2.5 mm² conductors minimizes voltage drop even at longer lengths, while the audio section with spiral shielding protects the audio from interference. Thanks to the silver-plated contact surfaces, perfect contact is maintained throughout the show.

Whether for concert productions, theater productions or corporate events, this hybrid cable is the ultimate solution for reliability and fast handling. With its European craftsmanship and uncompromising choice of materials, 5 STAR H PCON A is built to keep the show going, night after night.
