CABLESPower CablespowerCON® & mains connector cables3 STAR H C13 A

3 STAR H C13 A

Product Highlights

✓ High quality hybrid cable from our 3 STAR SERIES

✓ Combined power and audio cable with 3 x 1.5 mm² & 2 x 0.22 mm² conductor area

✓ Equipped with XLR and IEC to Schuko (XLR male/female & IEC C13 to Schuko)

✓ Generous splice length of 40 cm for easy connection

✓ Perfectly suited for professional audio applications (e.g. active speakers)

Specifications

General
- Cable length: 5 m - 10 m
- Split length: 40 cm (at the ends)
- Total diameter: 15 mm
- Color: Black
Audio Connections (Audio)
- Connector 1: XLR 3-pin female (Adam Hall K3CXF3BLK)
- Connector 2: XLR 3-pin male (Adam Hall K3CXM3BLK)
- Contact surface: Silver plated
- Conductors: 2 x 0.22 mm² OFC (Oxygen Free Copper)
- Shielding: Copper spiral shield
Power connections (Power)
- Connector 1: IEC C13 (Female/Equipment connector)
- Connector 2: Schuko (grounded) male - Angled
- Conductor area: 3 x 1.5 mm² OFC (Oxygen Free Copper)
- AWG: 16
Environment & Design
- Operating temperature: -20 - 70 °C
- Cable sheath: Abrasion resistant PVC
- Capacitance: 125 pF/m

Description of the cable

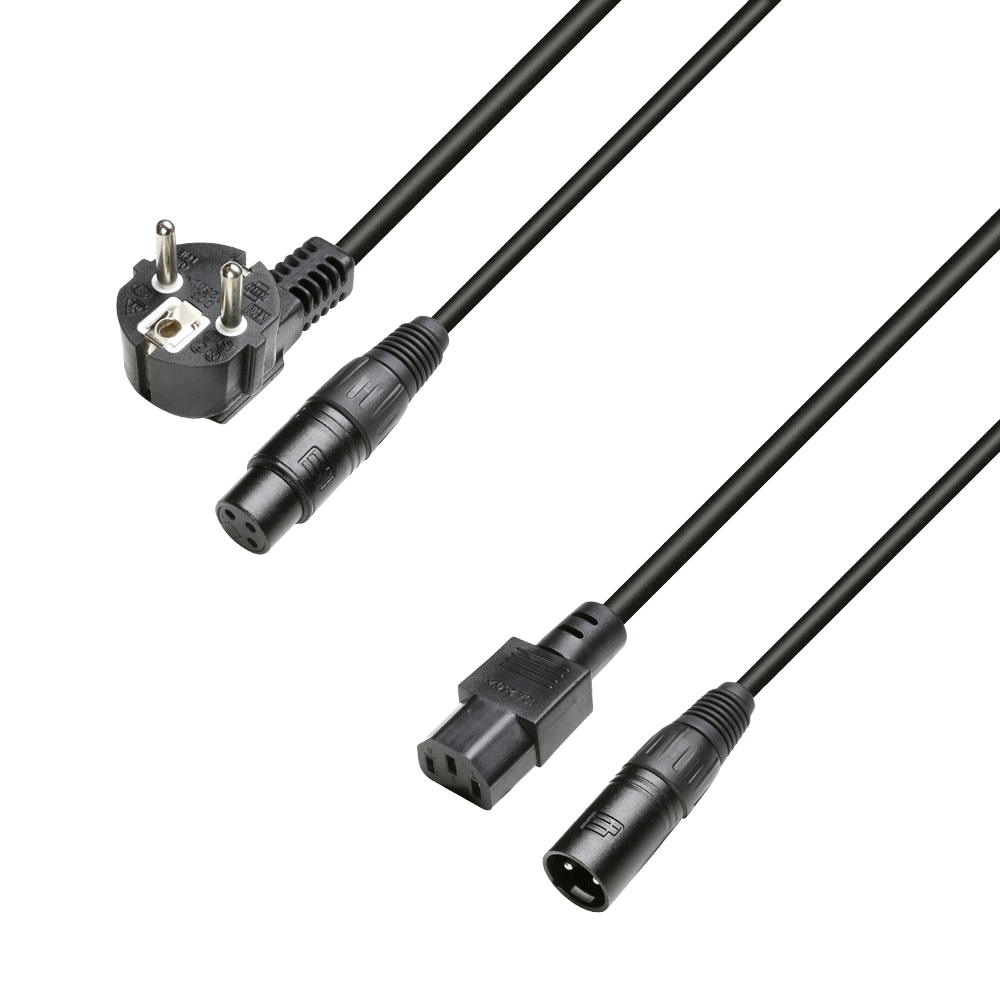

3 STAR H C13 A - Smart hybrid cable for active speakers

3 STAR H C13 A is a high-quality hybrid cable from our 3-star series, designed to simplify the connection of active audio equipment. By integrating both a balanced XLR cable and a power cable in the same jacket, you halve the number of cables that need to be run to your speakers or monitors.

The power section is equipped with an angled Schuko plug, which is ideal for saving space at wall outlets or in power strips on the stage floor. At the other end is a standard IEC C13 plug, suitable for most active speakers, monitors and instrumentation amplifiers.

The audio section consists of a reliable XLR link with silver-plated connectors and effective spiral shielding to ensure interference-free signal transmission. With oxygen-free copper (OFC) conductors in both the power and audio sections, you get a durable, high-performance solution that makes your rigging faster, neater and more professional.
