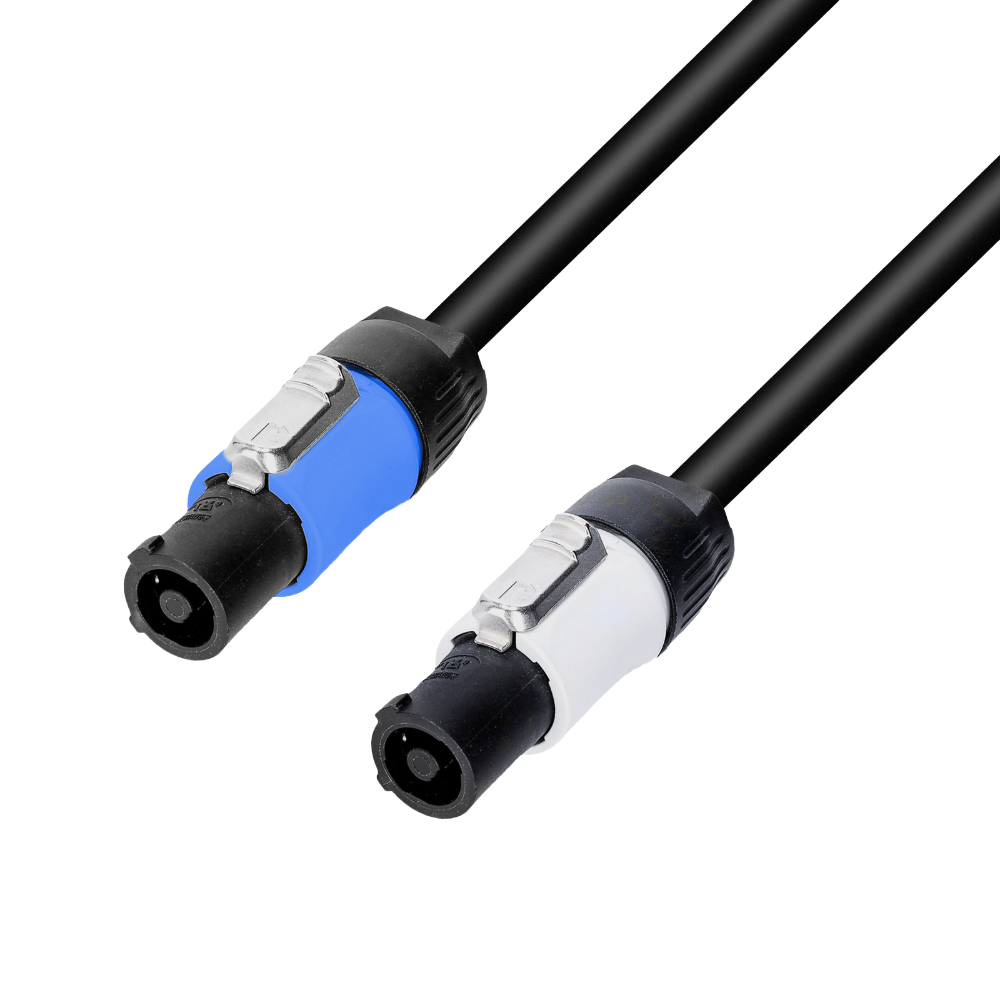

4 STAR PCONL

• General
  • Cable length: 1.5 m - 10 m
  • Cable sheath: Heavy rubber (H07RN-F)
  • Color: Black
• Connectors
  • Connector 1 (Input): REAN® G-Series Power-In (RCAC3I-G), Blue
  • Connector 2 (Output): REAN® G-Series Power-Out (RCAC3O-G), Gray
  • Feature: Lockable connectors; not compatible with each other to prevent miswiring
  • Standard: Fully compatible with powerCON® chassis connectors
• Conductors & Construction
  • Material: OFC (Oxygen Free Copper)
  • Conductor area: 3 x 1.5 mm²
  • AWG: 15
• Environment/Ambient
  • Operating temperature: -20 - 70 °C
  • Applications: Stage technology, industry, office and studio

Description of the product

4 STAR PCONL - Affordable and safe power link with REAN® G-Series

4 STAR PCONL is a robust power link from our 4-star series, designed to offer a stable and safe power supply through series connection. Equipped with REAN® G-Series connectors (from the Neutrik family), this cable delivers durability suitable for stage lighting as well as industrial installations.

The connectors are color-coded in blue (Power-In) and gray (Power-Out) to make rigging quick and intuitive. An important safety feature is that the two ends are not physically compatible with each other, eliminating the risk of accidentally connecting the wrong ends of a power chain.

The cable is based on the reliable H07RN-F rubber sheath that withstands mechanical stresses and maintains its flexibility even at low temperatures. Inside, we find 1.5 mm² conductors of oxygen-free copper (OFC), which ensures efficient current transfer with minimal voltage drop - a prerequisite for the safe operation of your equipment.
