PCL 10 PRO

Name: PCL 10 PRO
Brand: Adam Hall
Availability: OutOfStock

Product Highlights

✓ Reliable protection against overvoltage and voltage peaks

✓ Efficient high frequency filter against mains interference

✓ Central power supply with 8 switchable IEC sockets

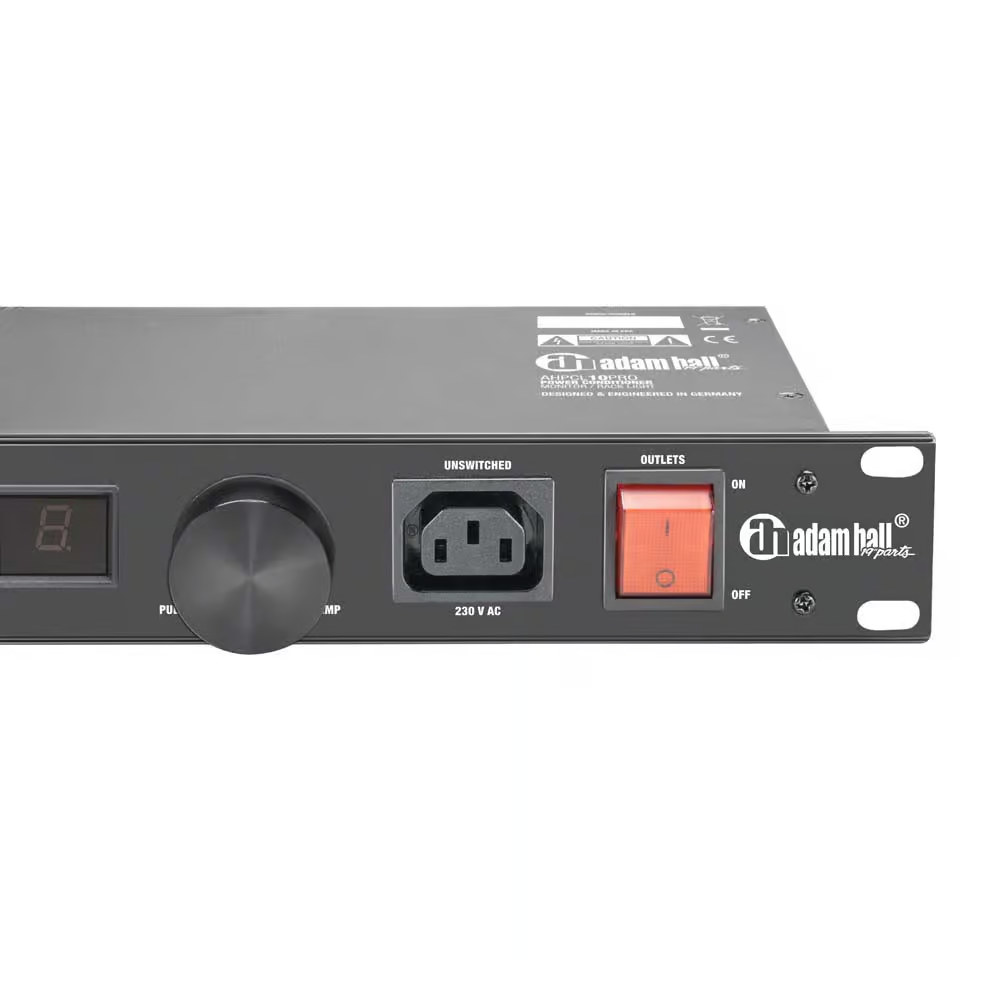

✓ Extra convenience socket on the front (not connected via switch)

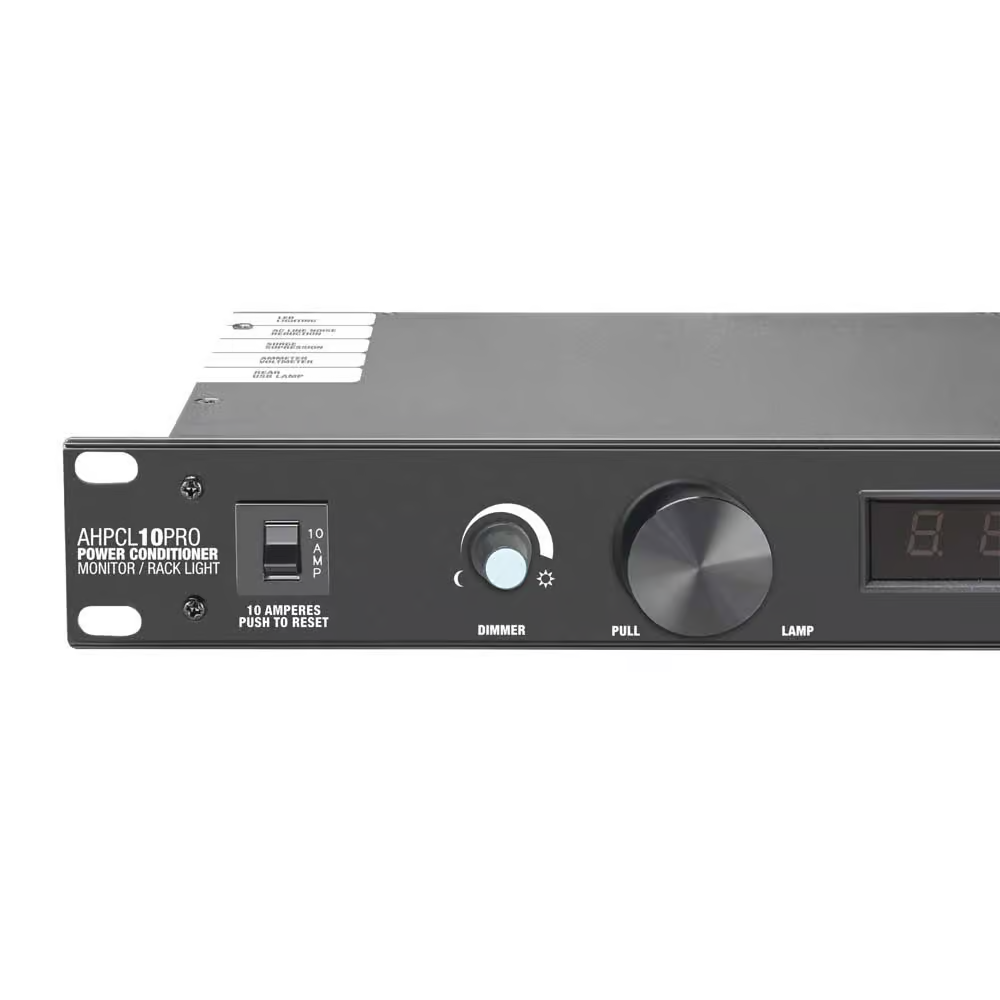

✓ Resettable circuit breaker directly on the front panel

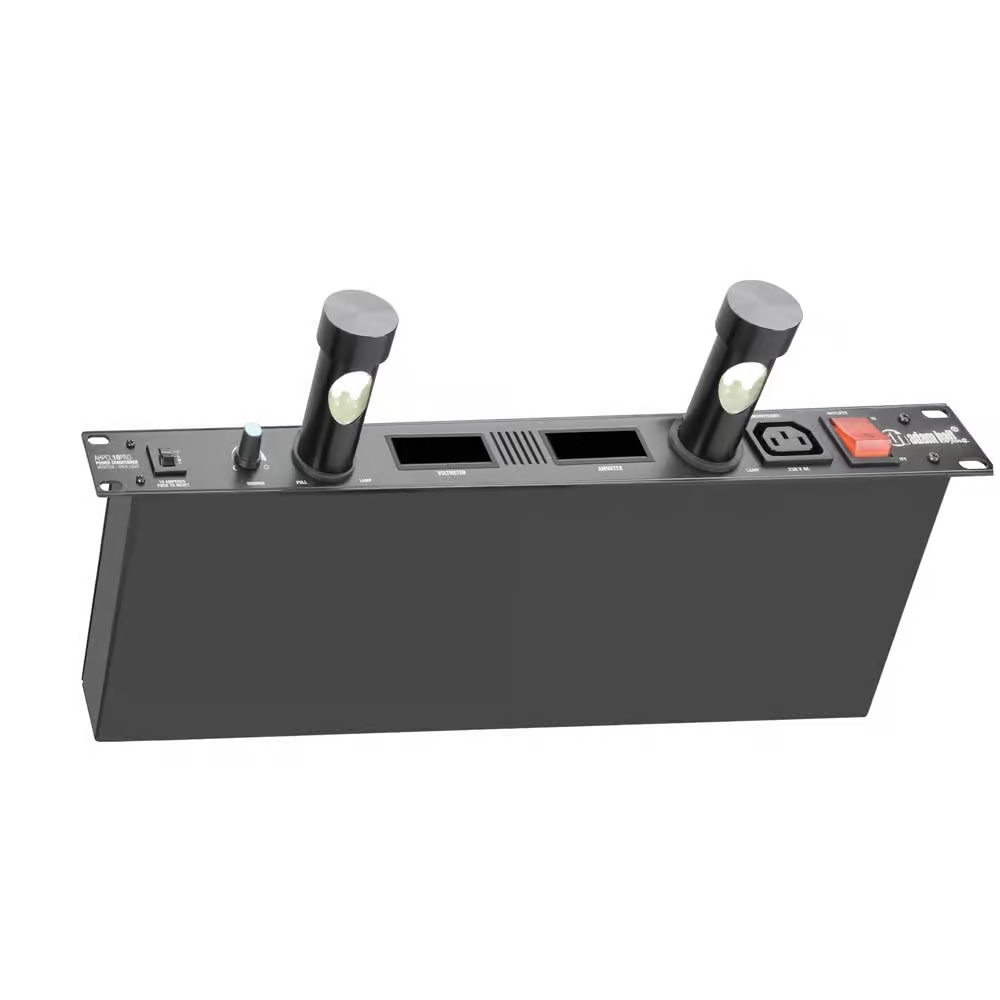

✓ 2 retractable LED rack lights with dimmer function

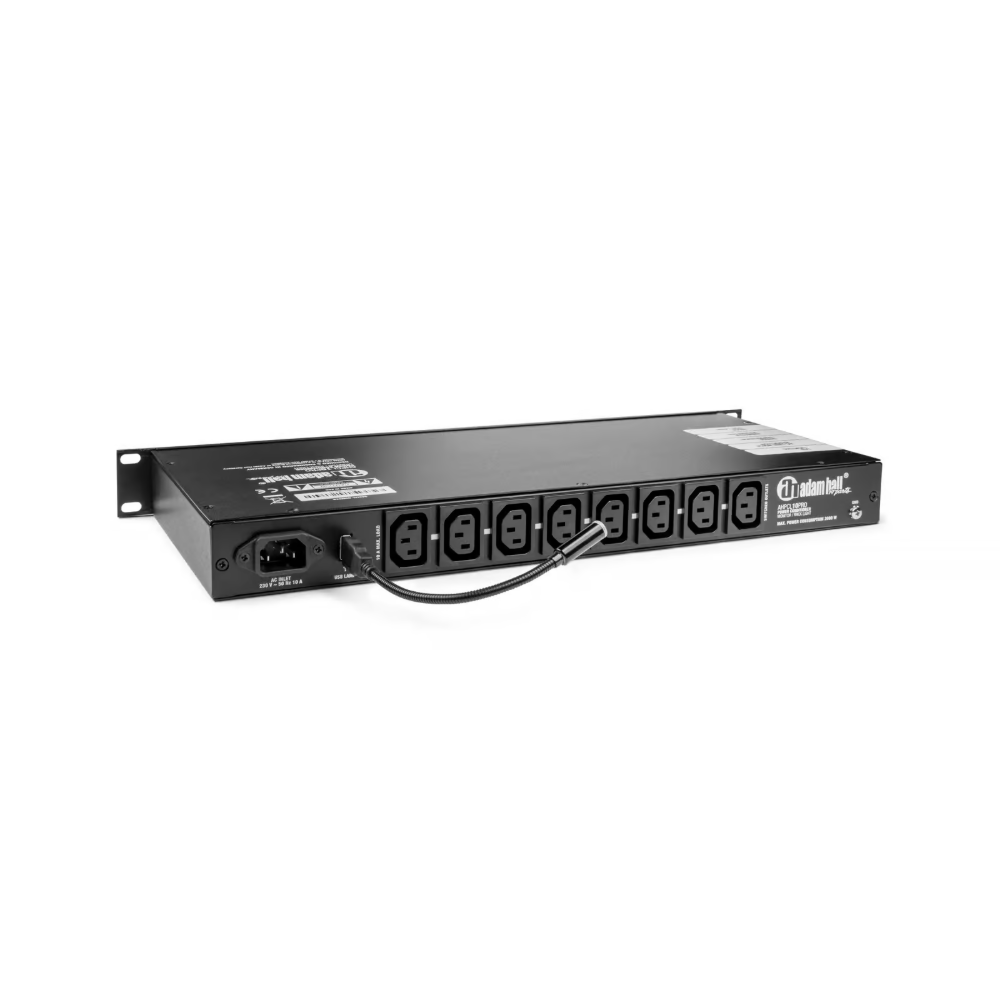

✓ Includes LED gooseneck lamp with USB connection for optimal rack lighting

✓ Built-in volt and ammeter with clear display

Specifications

General & Construction
- Format: 19" / 1U rack mount
- Material: Robust, powder-coated steel
- Number of outputs: 9 (8 rear, 1 front)
- Color: Black
Power & Protection Features
- Operating voltage: 230 V AC / 50 Hz
- Max current: 10 A (automatic switch on the front)
- Surge protection: Yes, with 1 ns response time
- Noise Canceling: Min. 20 dB (1.5 - 200 MHz)
- Max shock energy per contact: 70 J
Connections
- Input: Fixed cable (1.8 m) with angled Schuko connector

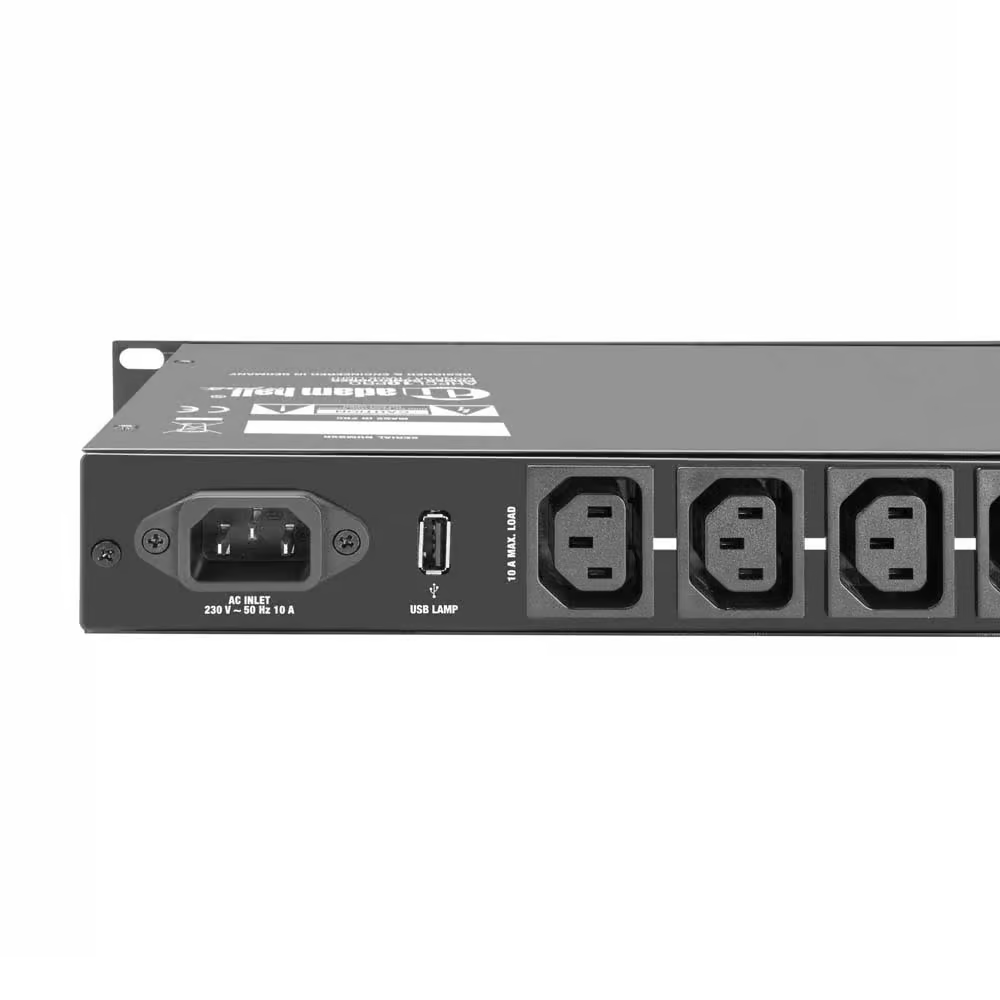

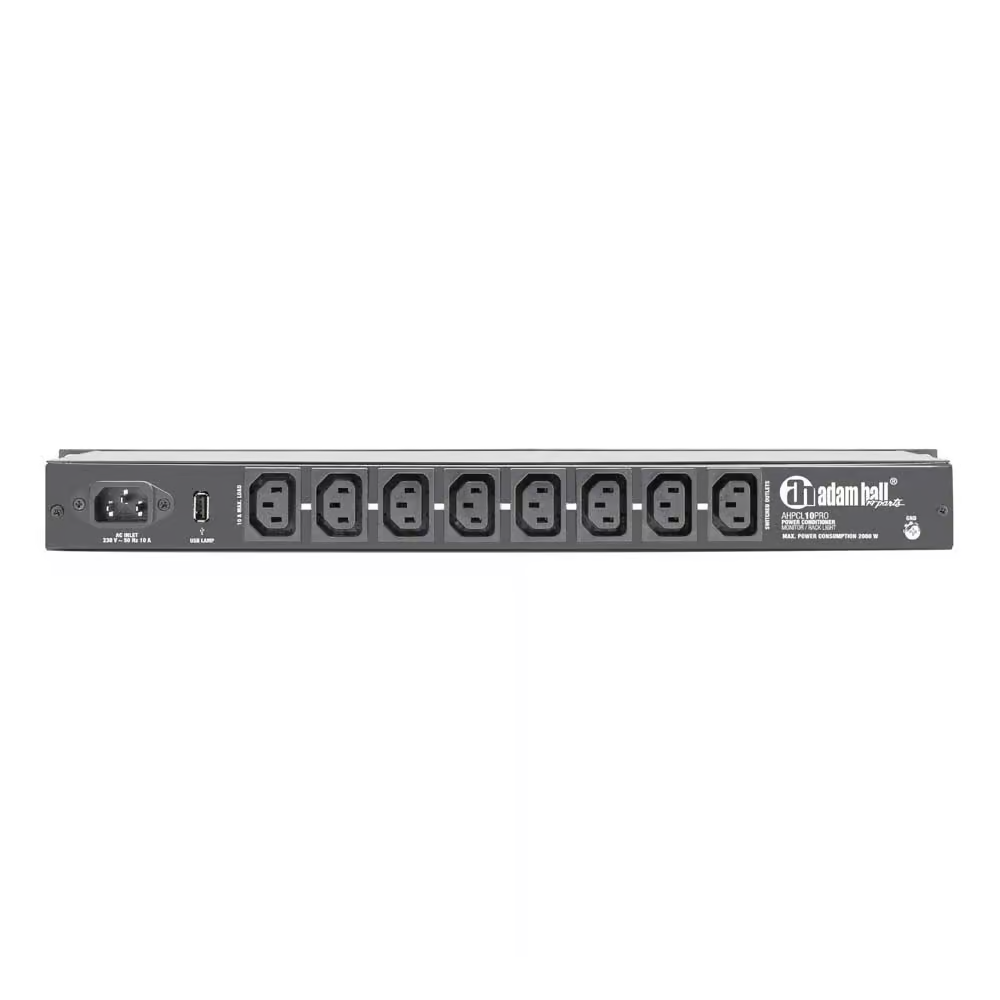

- Outputs (Rear): 8 IEC C13 (switchable via main switch)
- Output (Front): 1 IEC C13 (always active/not via switch)
Display & Lighting
- Measuring instruments: Separate Voltmeter and Ammeter for voltage and consumption
- Rack lighting: 2 retractable LED lamps (dimmable)

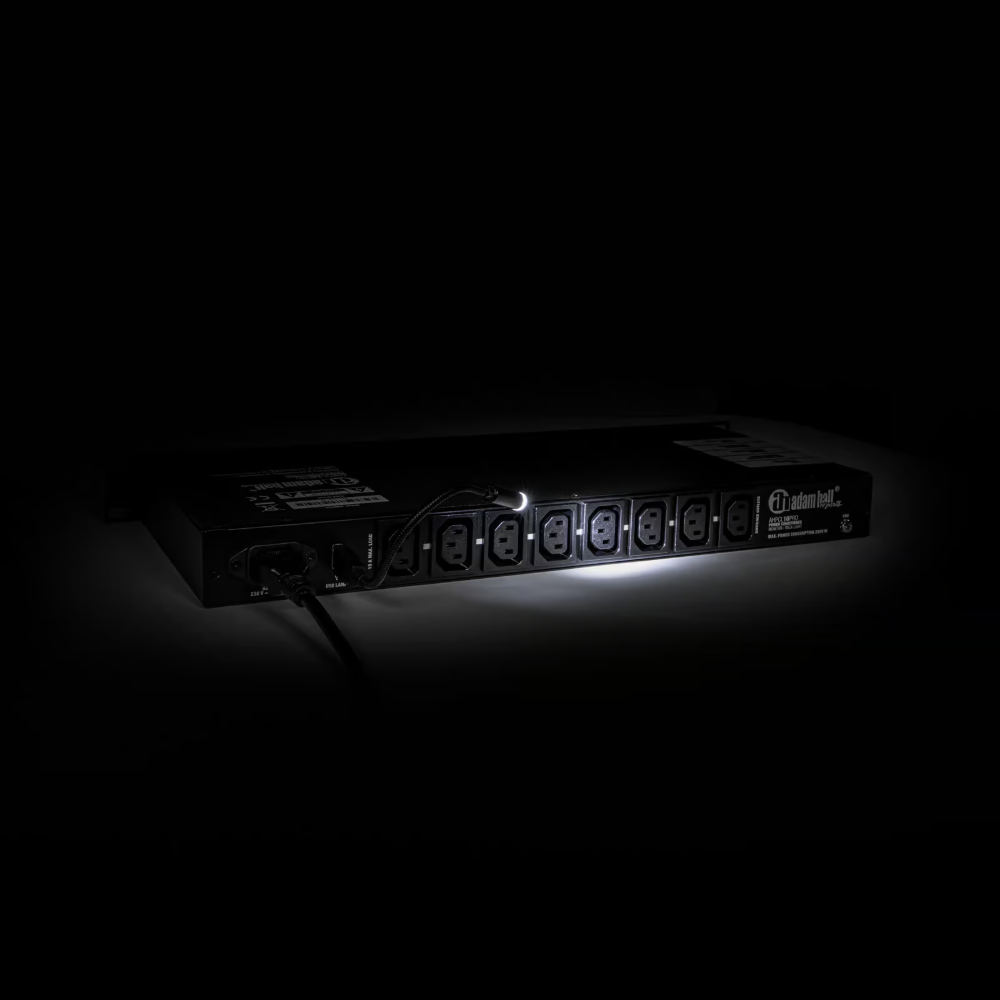

- Additional lighting: Socket for gooseneck lamp (included)

Description of the unit

PCL 10 PRO - Professional Power Conditioner with Meter and Lighting

The PCL 10 PRO is the ultimate solution for securing and organizing the power supply in your rack. In addition to serving as a centralized power source, this 19-inch unit offers effective protection against surges and spikes with an impressive response time of only 1 ns. The built-in high-frequency filter ensures high immunity to interference and prevents electrical noise from reaching your sensitive audio or video equipment.

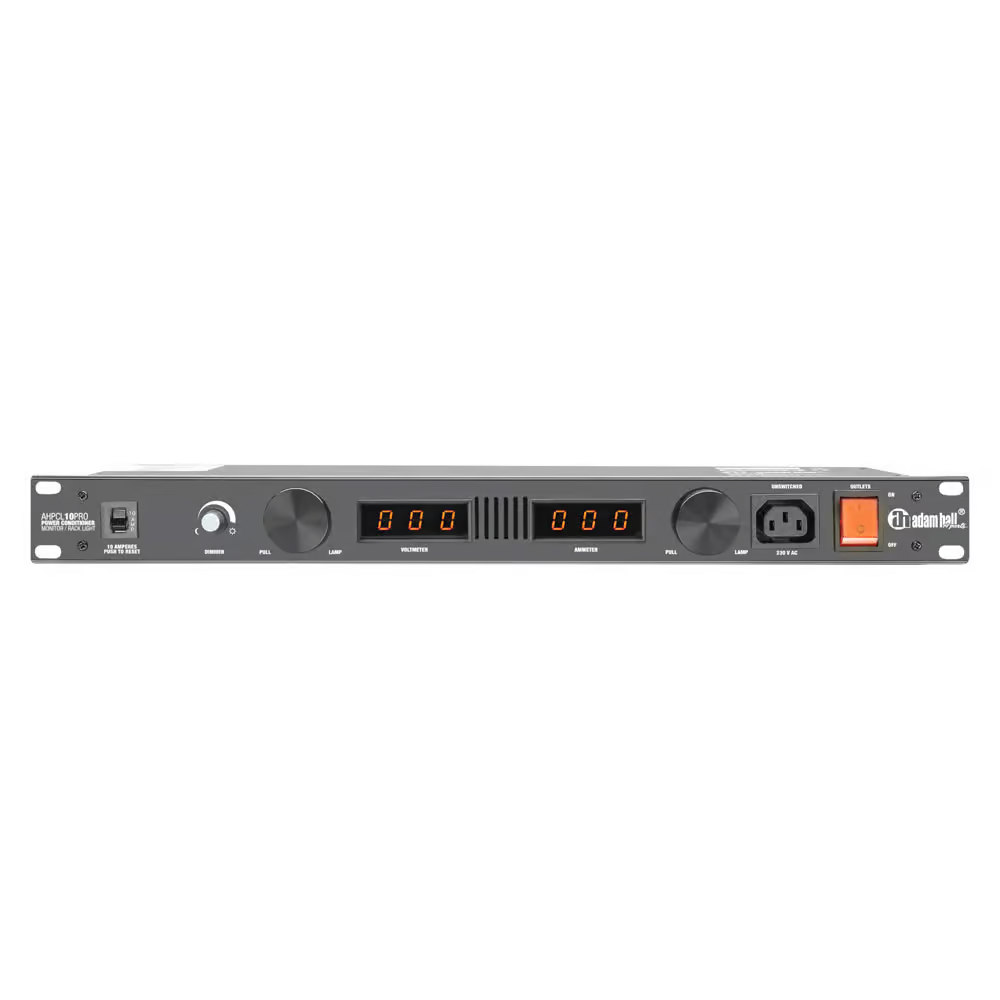

The front panel is equipped with clear digital displays for both the voltmeter and ammeter, allowing you to monitor the mains voltage and total power consumption in real time. For working in dark environments, the unit has two retractable, dimmable LED lights, as well as an included gooseneck light that plugs into the back.

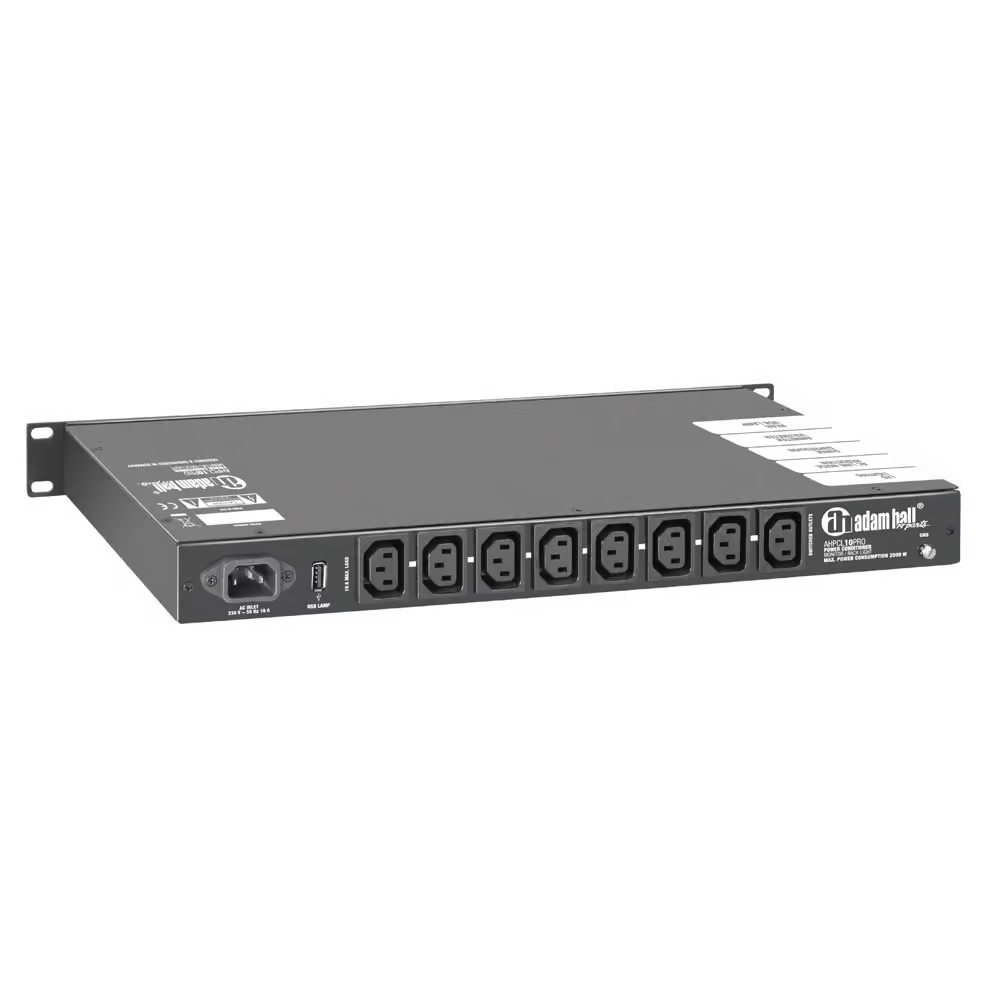

With eight IEC sockets at the rear controlled via an illuminated main switch, as well as an additional socket on the front that is always active, the PCL 10 PRO provides maximum flexibility. The robust steel construction and easy-to-access 10A circuit breaker make this a reliable partner for both mobile rigs and fixed installations in studios or premises.

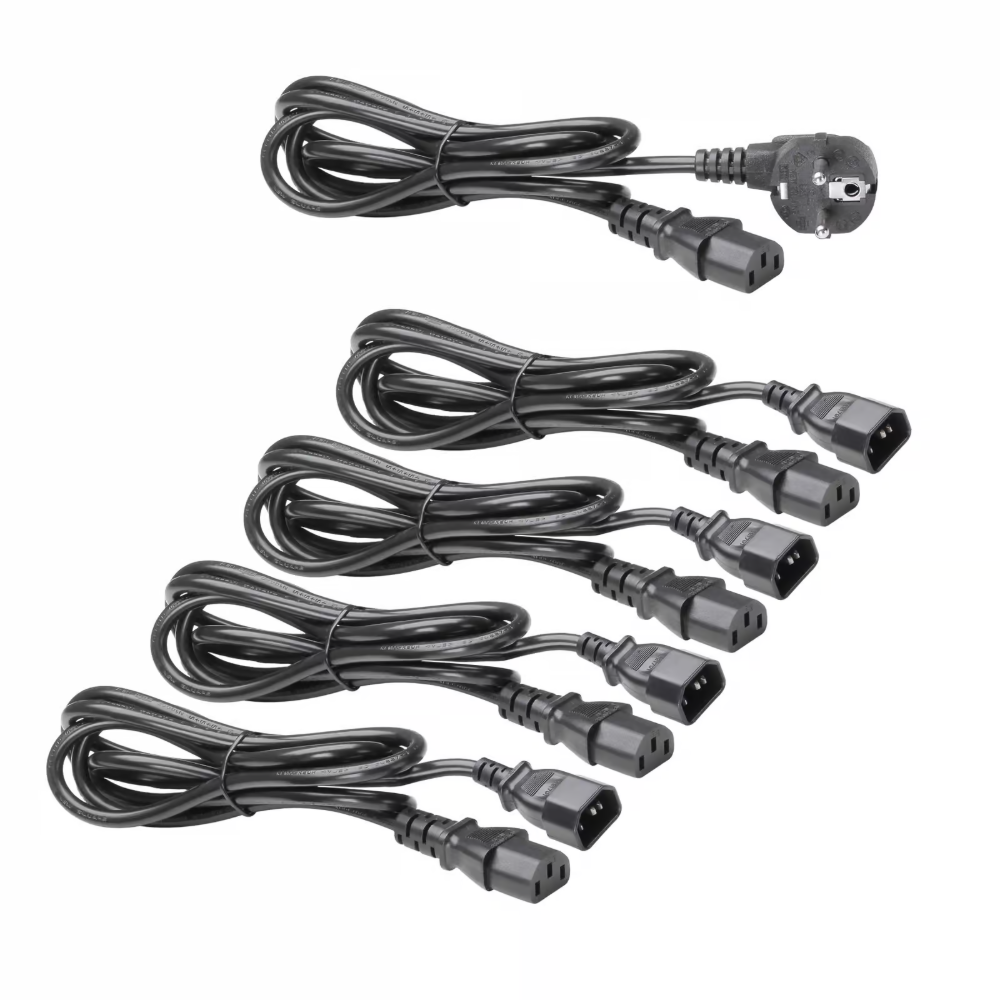

*All AH Power Conditioners are supplied with four IEC connection cables.
