PCS 10

• General & Construction
  • Format: 19" / 1U rack mount
  • Material: Robust, powder-coated steel
  • Number of outputs: 9 (8 rear, 1 front)
  • Color: Black
• Power & Protection Features
  • Operating voltage: 230 V AC / 50 Hz
  • Max current: 10 A (automatic fuse on the front)
  • Surge protection: Yes, with 1 ns response time
  • Noise reduction: Min. 20 dB (1.5 - 200 MHz)
  • Max impact energy: 70 J per contact
• Connections

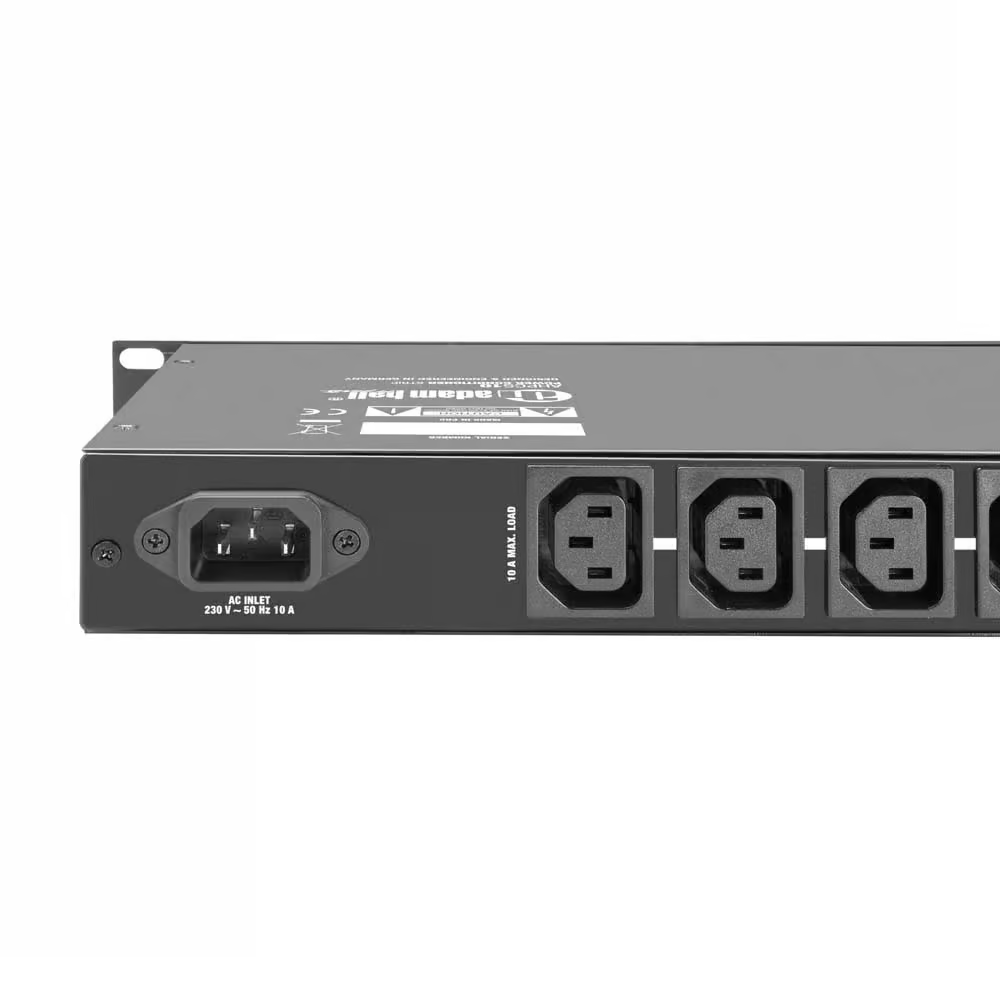

  • Input: 1.8 m cable with angled Schuko connector

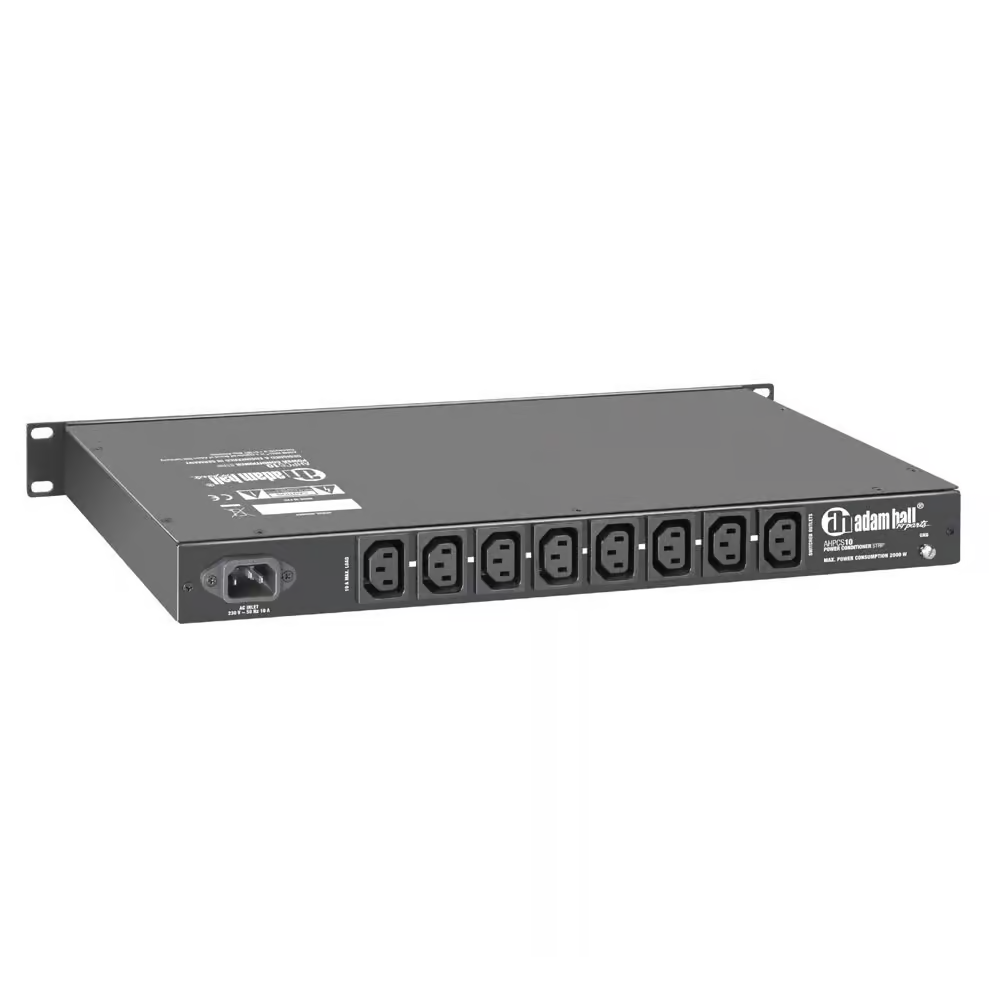

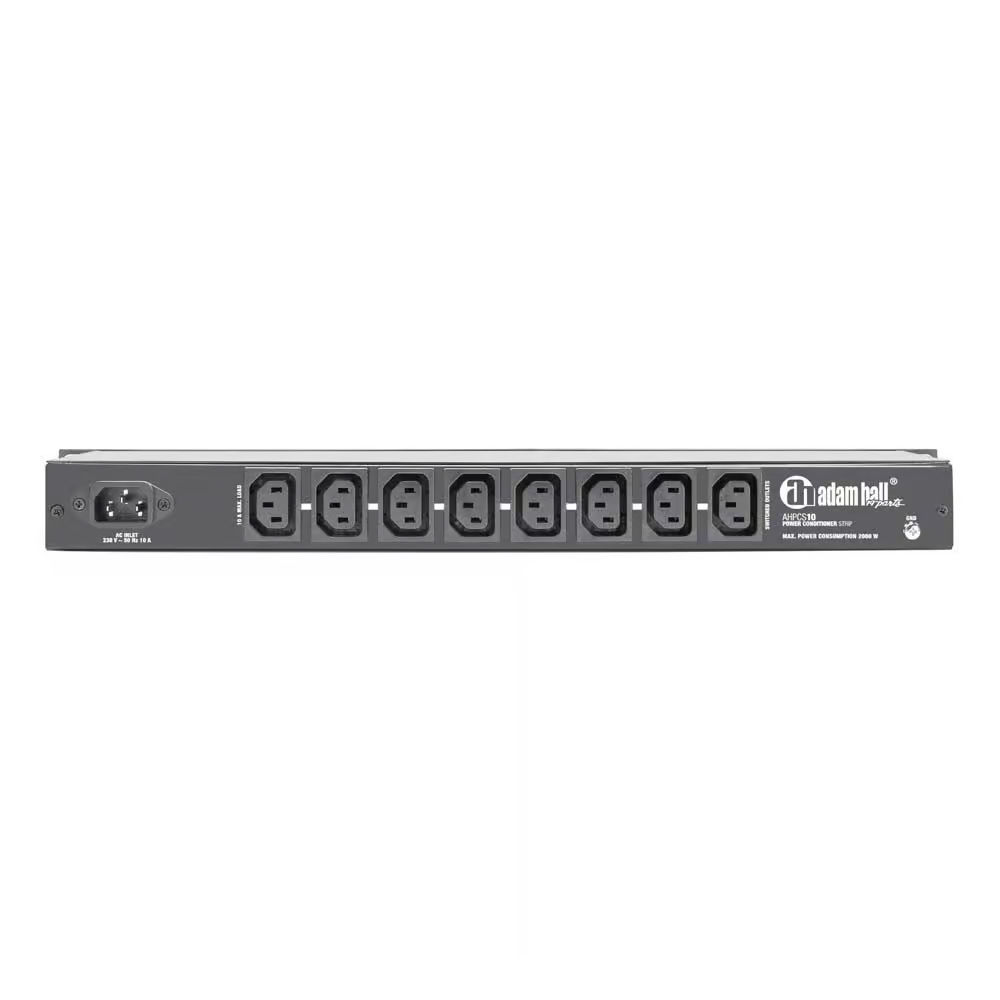

  • Outputs (Rear): 8 IEC C13 (activated via illuminated main switch)

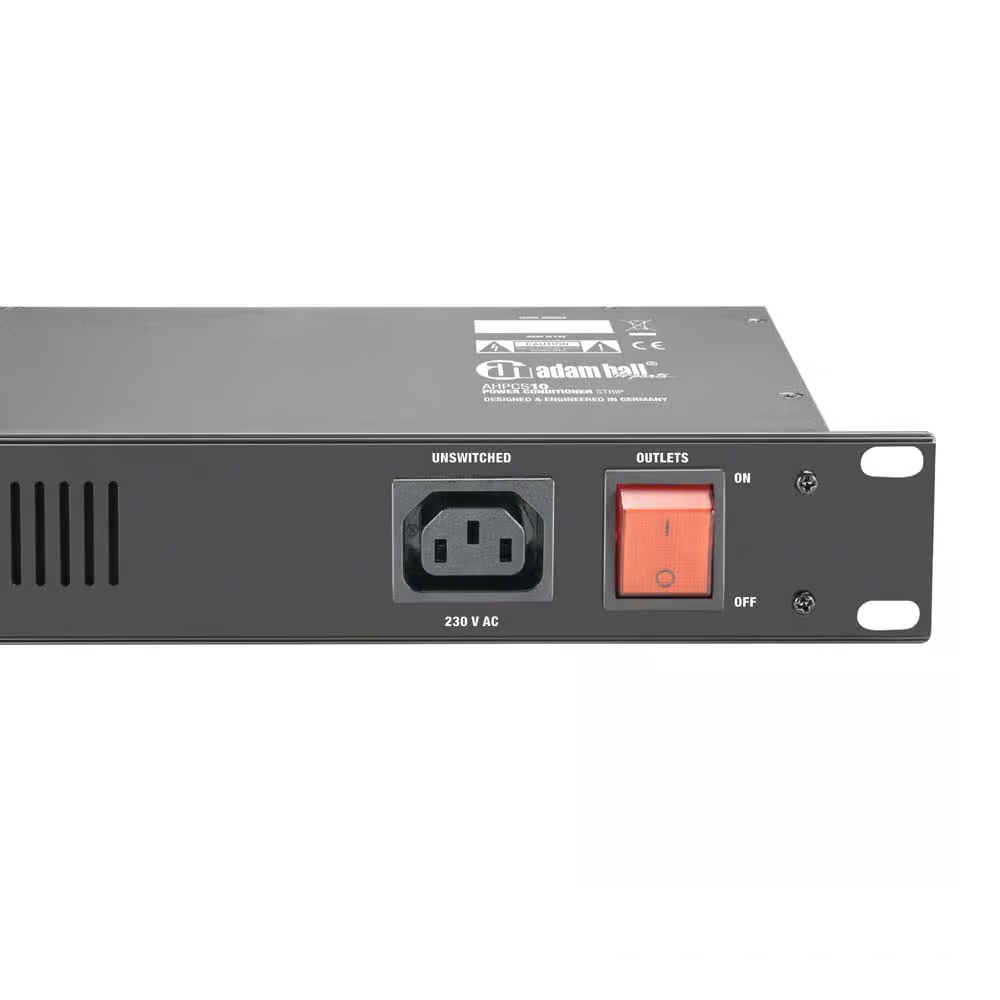

  • Output (Front): 1 IEC C13 (always energized/not via switch)

Description of the device

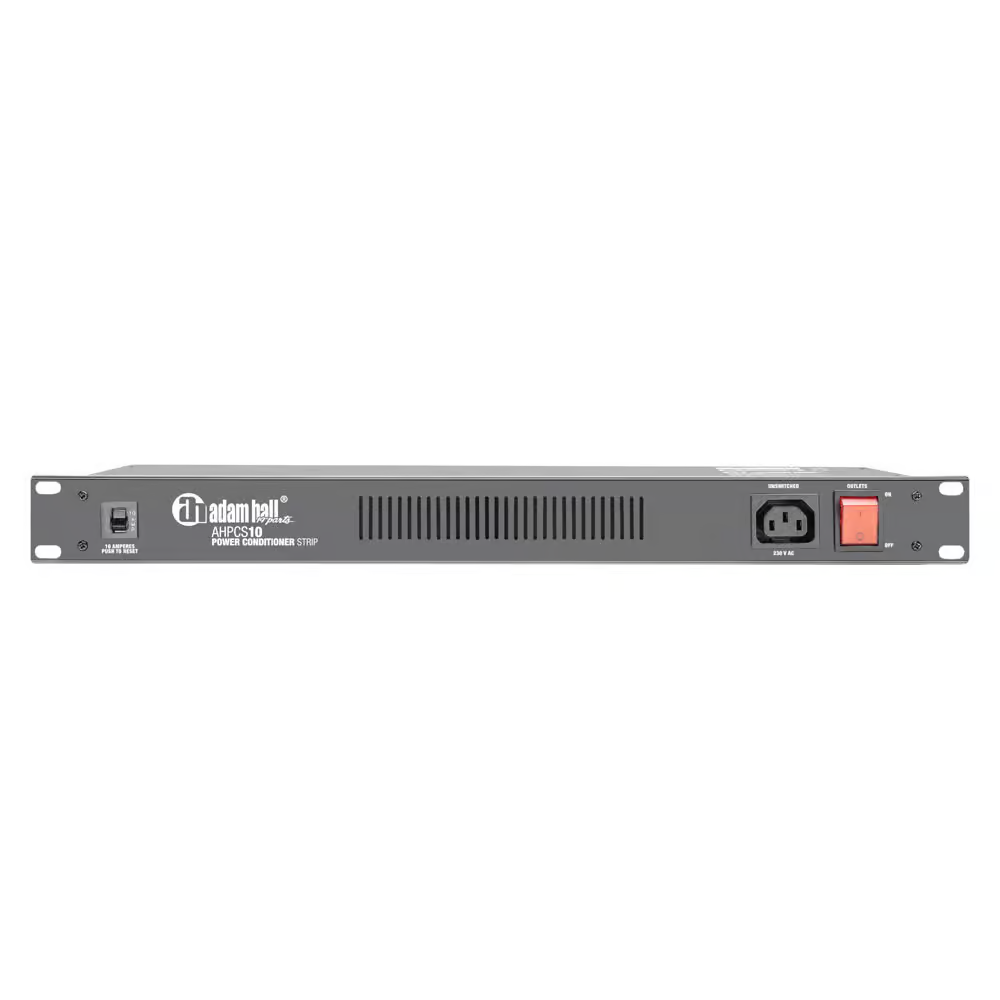

PCS 10 - Efficient power protection and distribution for professional racks

PCS 10 is a pure power conditioner from Adam Hall's series, designed to be the stable core of your power supply. In addition to providing a central point to power your entire rack, it provides invaluable protection against voltage spikes and transients with a response time of only 1 nanosecond.

The device is equipped with advanced high-frequency filters that ensure high immunity to electrical interference. This prevents noise from the mains from finding its way into your connected devices, which is critical for maintaining a clean signal path in audio and video systems. The eight rear sockets are easily controlled with a large rocker switch on the front, while the ninth socket on the front is always powered to allow you to quickly plug in temporary equipment.

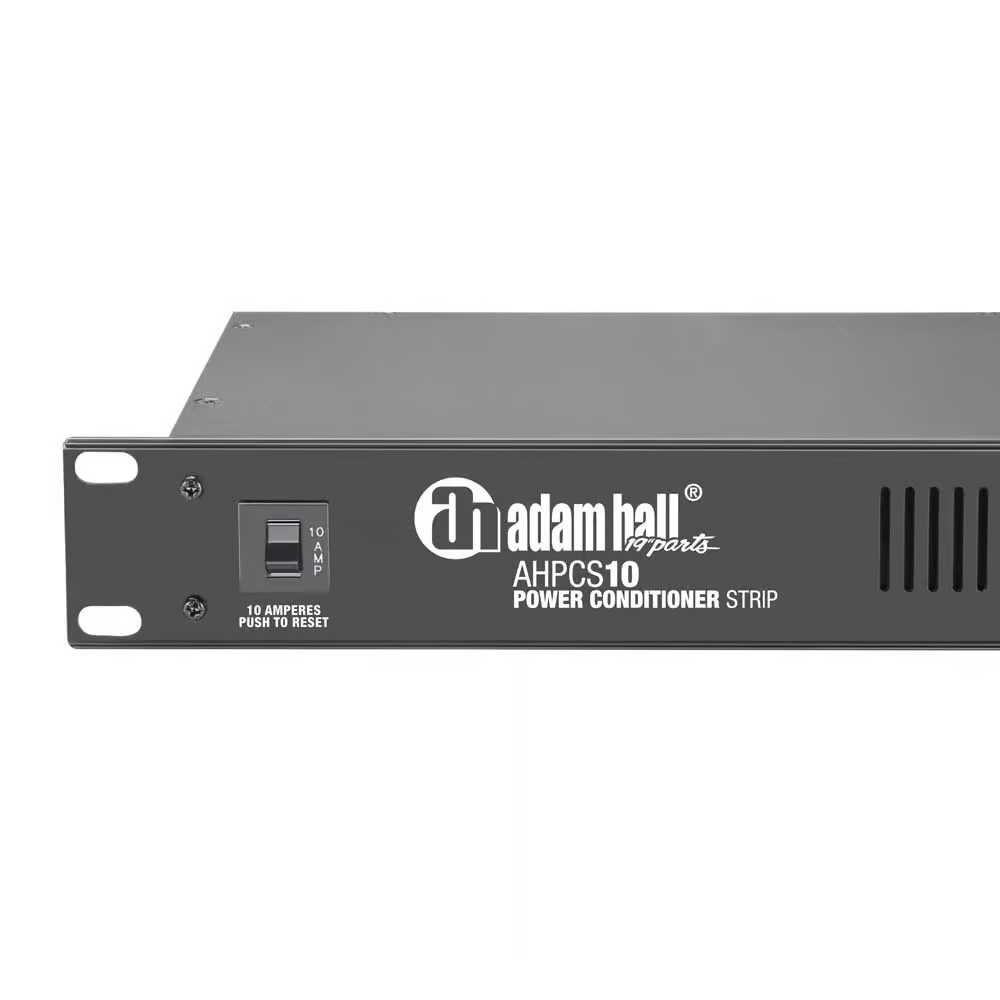

PCS 10 is built to last. The rugged 1U steel enclosure withstands rough handling in both mobile touring rigs and fixed installations. Should an accident occur and the system overloads, you can easily restore power with the 10A circuit breaker located within easy reach on the front panel.

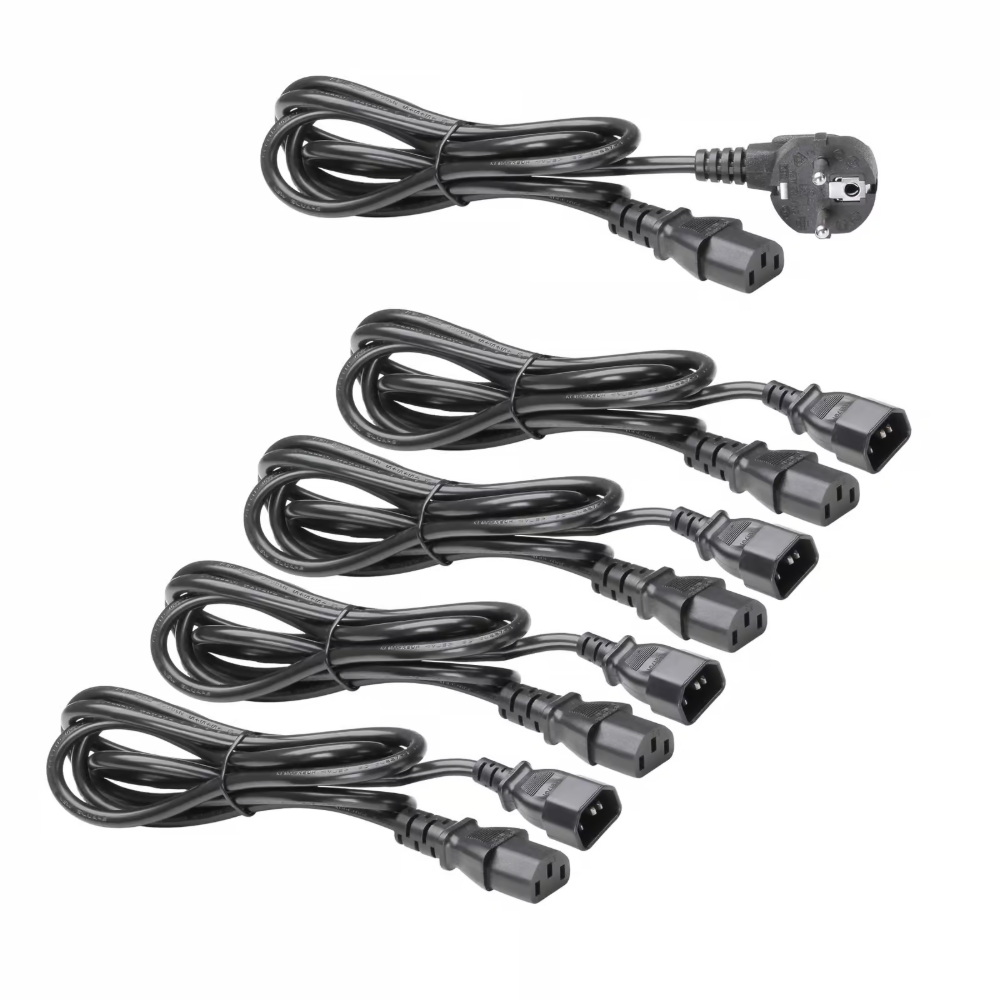

*All AH Power Conditioners are supplied with four IEC connection cables.
