RACK PDU 10S C13

• General & Dimensions
  • Format: 19" / 1U rack mount
  • Width: 485 mm
  • Height: 44 mm
  • Depth/Installation depth: 44 mm
  • Weight: 911 g
• Power & Connections
  • Operating voltage: 100 V AC - 250 V AC / 50 - 60 Hz
  • Maximum current: 16 A
  • Input: IEC C14 male (cable 1.4 m included)
  • Outputs: 10 IEC C13 (female)
  • Power switch: Yes, illuminated On/Off on the front
• Cable & Conductors
  • Material: OFC (Oxygen Free Copper)
  • Conductor area: 3 x 1.5 mm²
  • Cable sheath: PVC (6 mm diameter)
  • Cable detachable: Yes
• Construction
  • Material: Robust combination of aluminum and plastic
  • Color: Black

Description: Black

19" Power Strip 1U IEC - Maximize power distribution in your IT rack

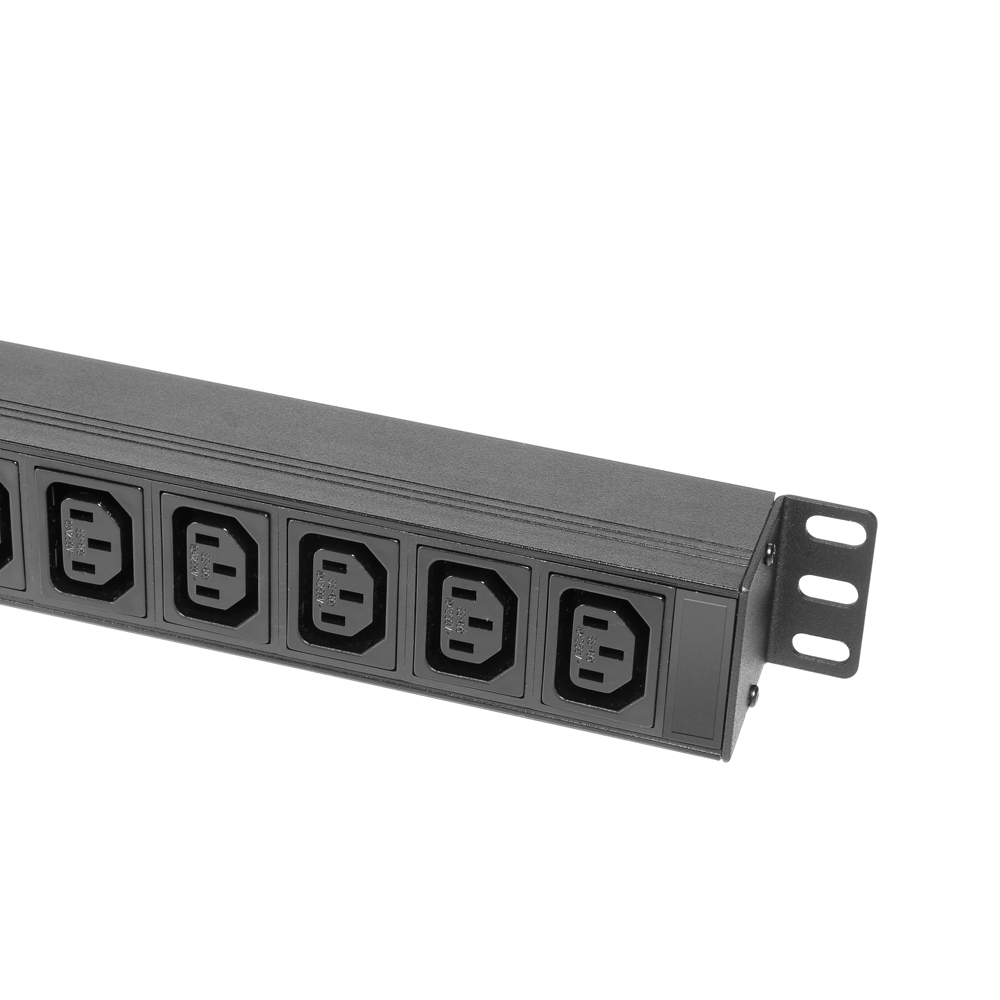

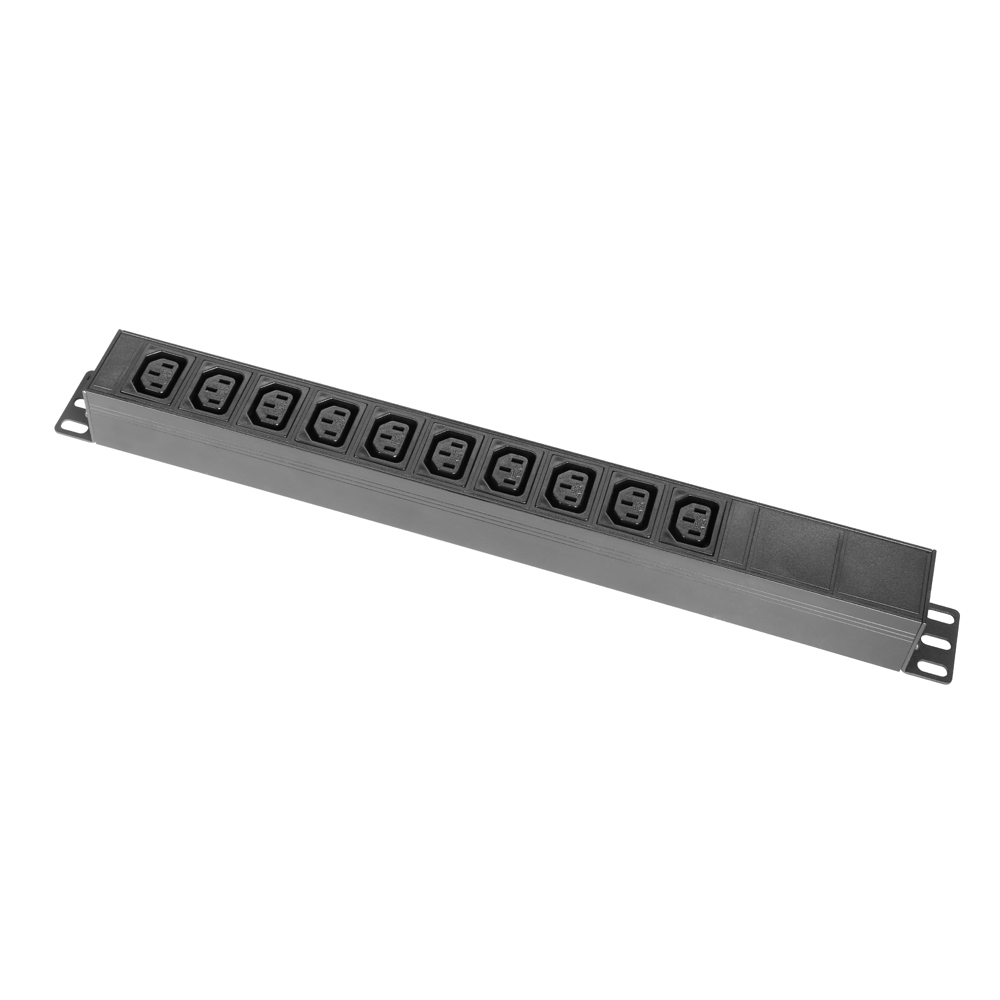

This 19" power strip is optimized for modern rack environments where space is limited but the need for connections is high. By using the IEC C13 standard instead of standard wall outlets, this 1U strip can offer a full 10 outlets, making it ideal for powering servers, network switches, wireless receivers and other studio equipment.

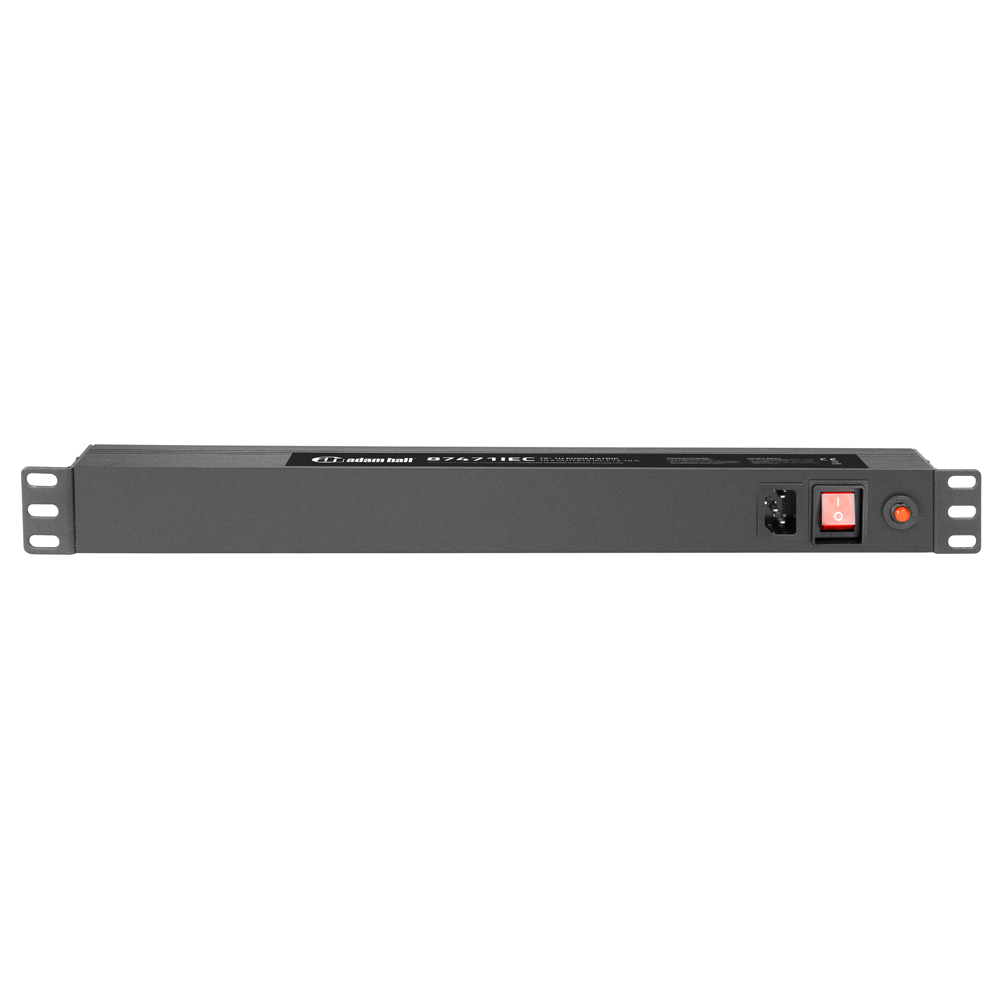

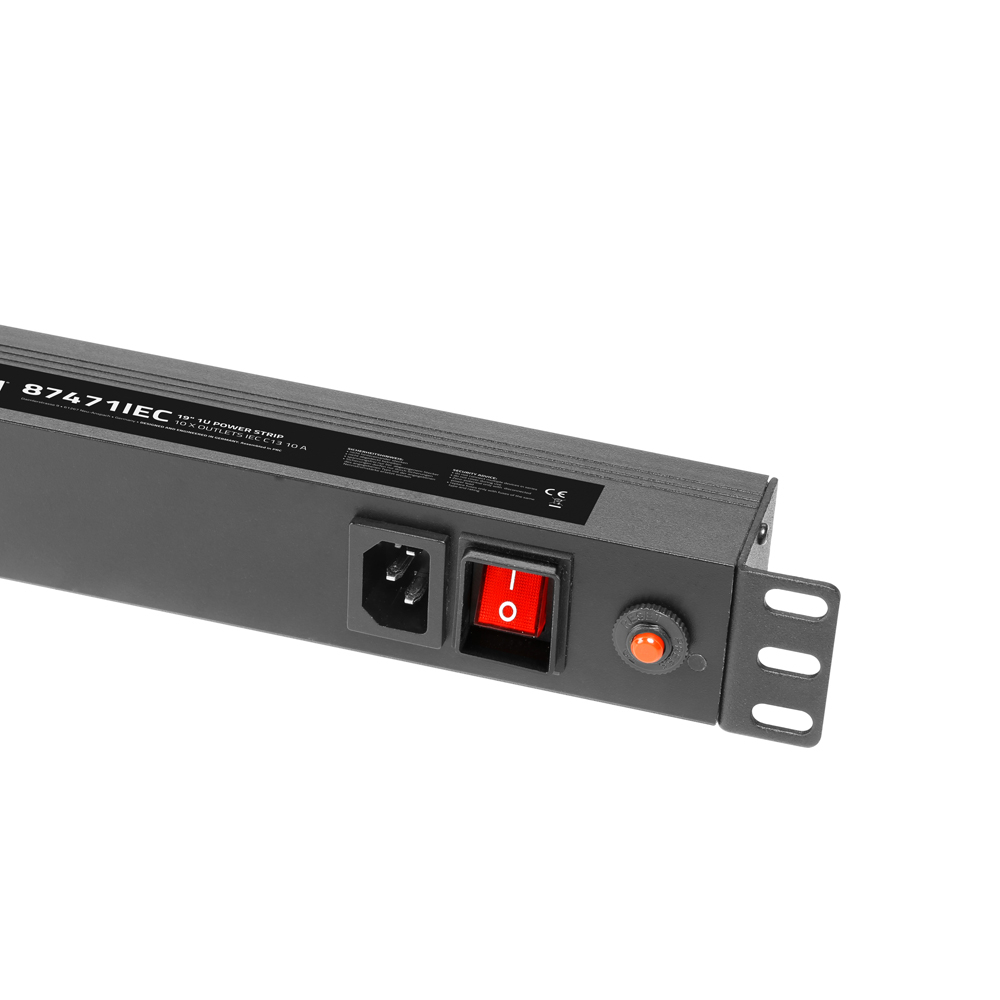

The chassis is built in a lightweight but strong combination of aluminum and plastic with a very shallow mounting depth of only 44 mm. This makes it a perfect fit even in shallow wall racks or on the back of a rack where cabling often takes up a lot of space. The illuminated power switch on the front provides a quick visual confirmation that the system is running and allows easy shutdown of the entire rig.

With a generous 1.5 mm² cable area and oxygen-free copper (OFC) conductors, the unit handles loads up to 16 A with the highest reliability. The detachable incoming cable with IEC C14 connector also provides extra flexibility for installation and transportation.
