RACK PDU 7S

• General & Dimensions
  • Format: 19" / 1U rack mount
  • Width: 485 mm
  • Height: 45 mm
  • Depth: 54 mm
  • Weight: 843 g
• Power & Connections
  • Operating voltage: 100 V AC - 250 V AC / 50 - 60 Hz
  • Maximum current: 16 A
  • Number of outputs: 7 Schuko (Type F, grounded)
  • Switch: Illuminated On/Off with folding protective cover
• Cable & Conductors
  • Input: 1.8 m cable (H05VV-F) with angled Schuko connector
  • Material: OFC (Oxygen Free Copper)
  • Conductor area: 3 x 1.5 mm²
  • Cable diameter: 6 mm
• Construction
  • Material: Robust aluminum chassis with plastic details
  • Special feature: 8-way adjustable rack angles
  • Color: Black

Description: Black

RACK PDU 7S - Safe power distribution with protected switch

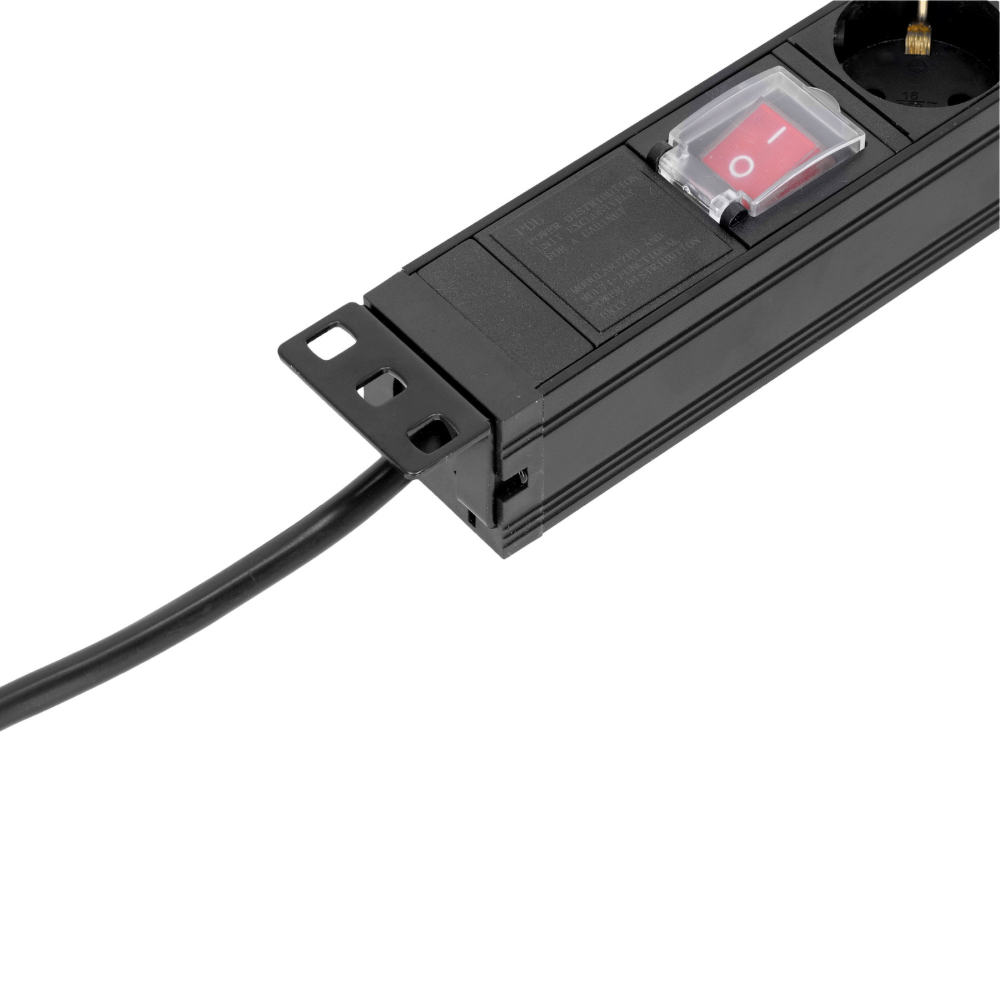

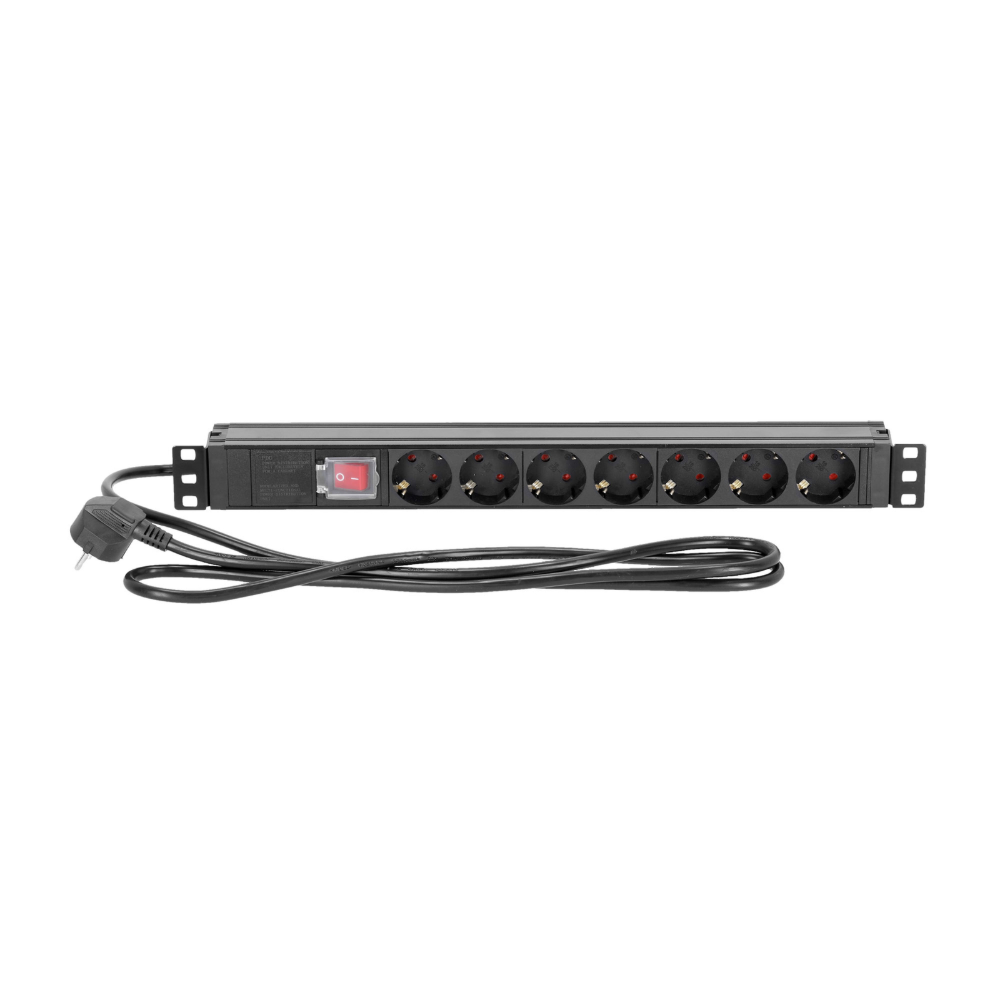

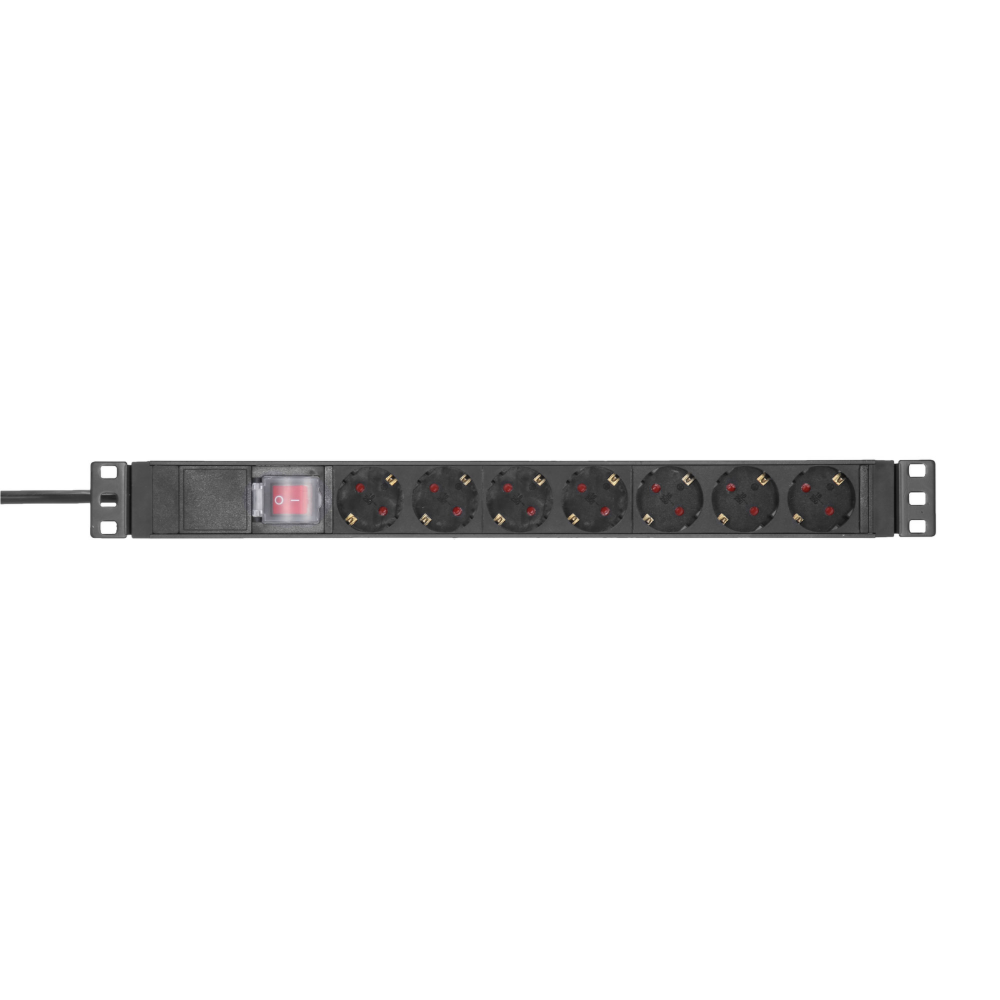

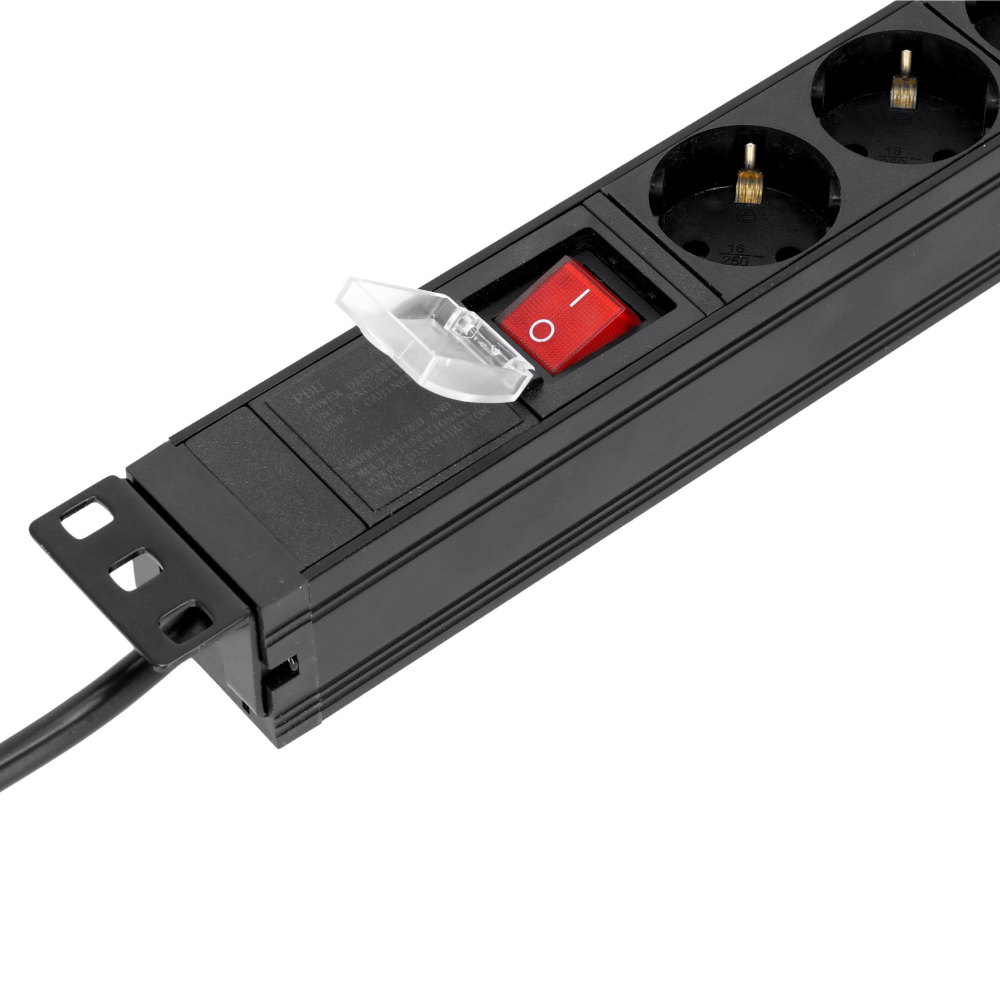

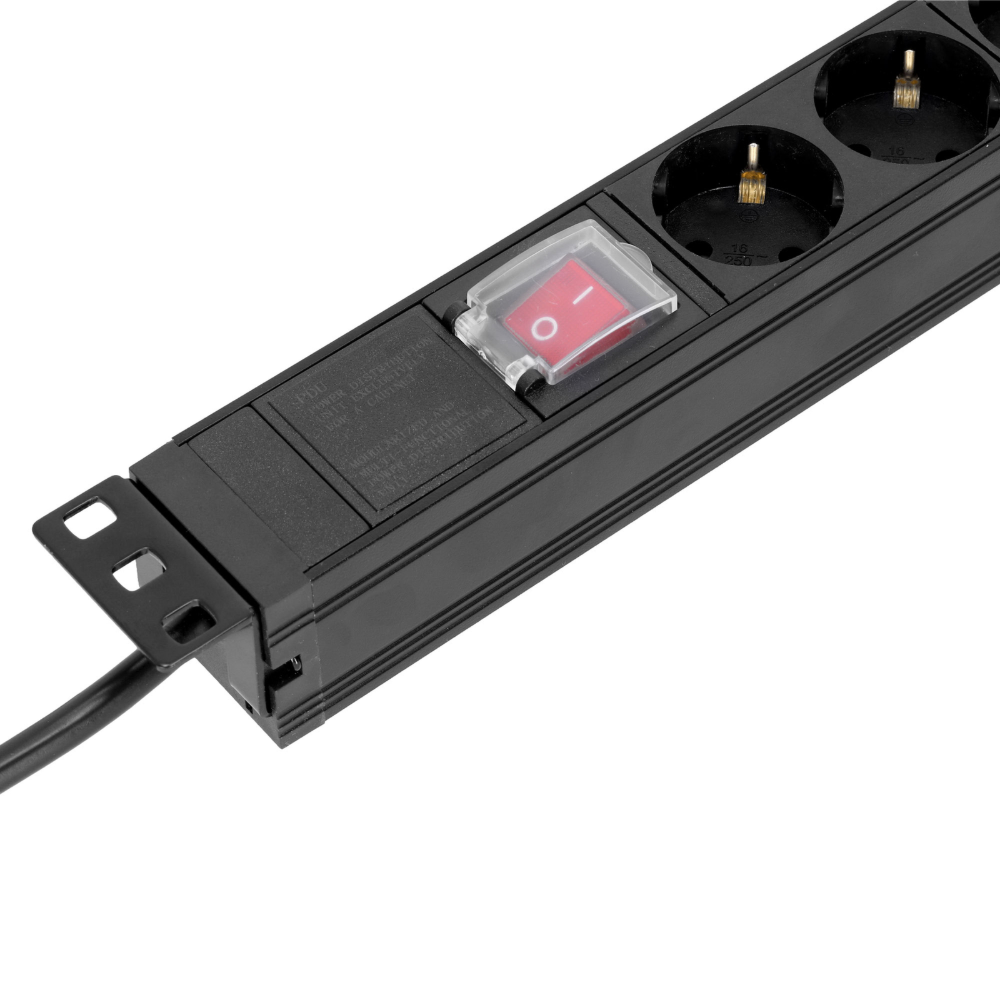

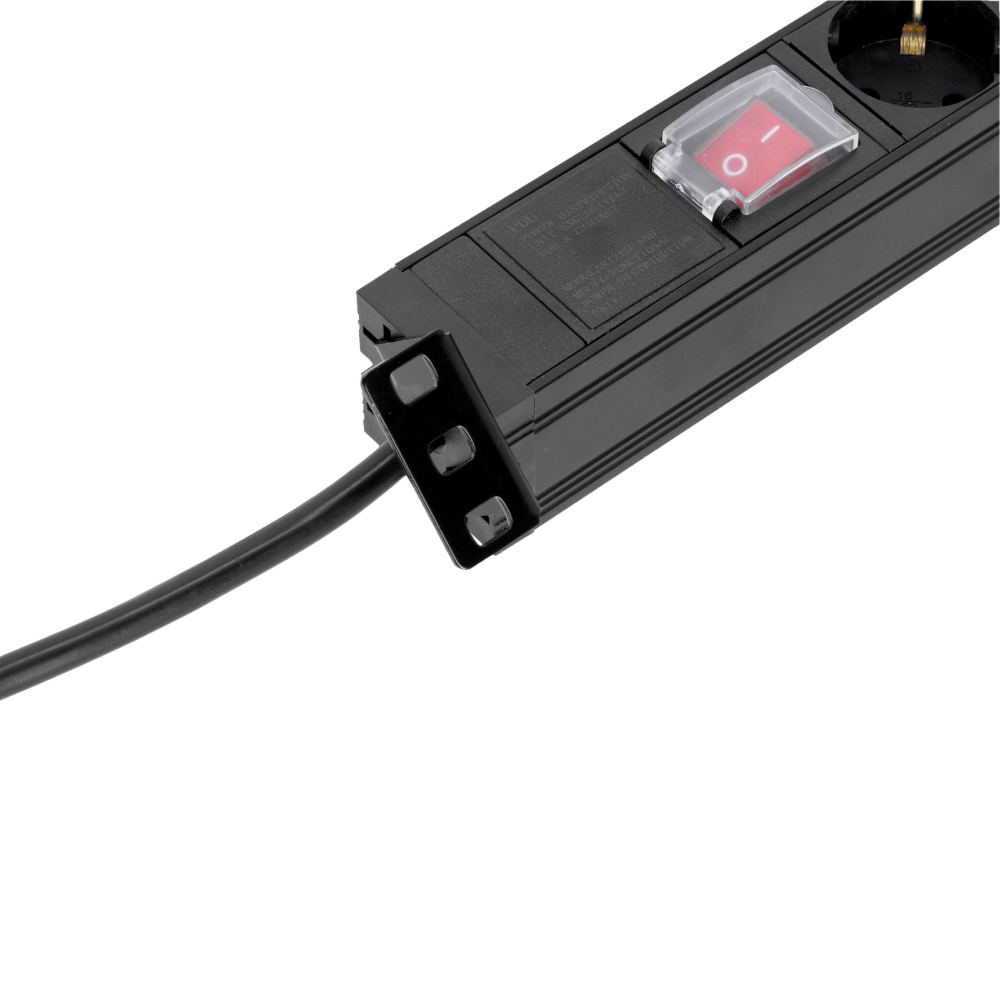

RACK PDU 7S (87471 X7) is a well thought-out solution for 19-inch racks where operational safety is the focus. This model is equipped with seven grounded Schuko sockets on the back and an illuminated main switch on the front. What sets the RACK PDU 7S apart is the fixed protective cover that sits over the switch; it allows you to have full control at start-up, but prevents the power from being accidentally cut off during operation.

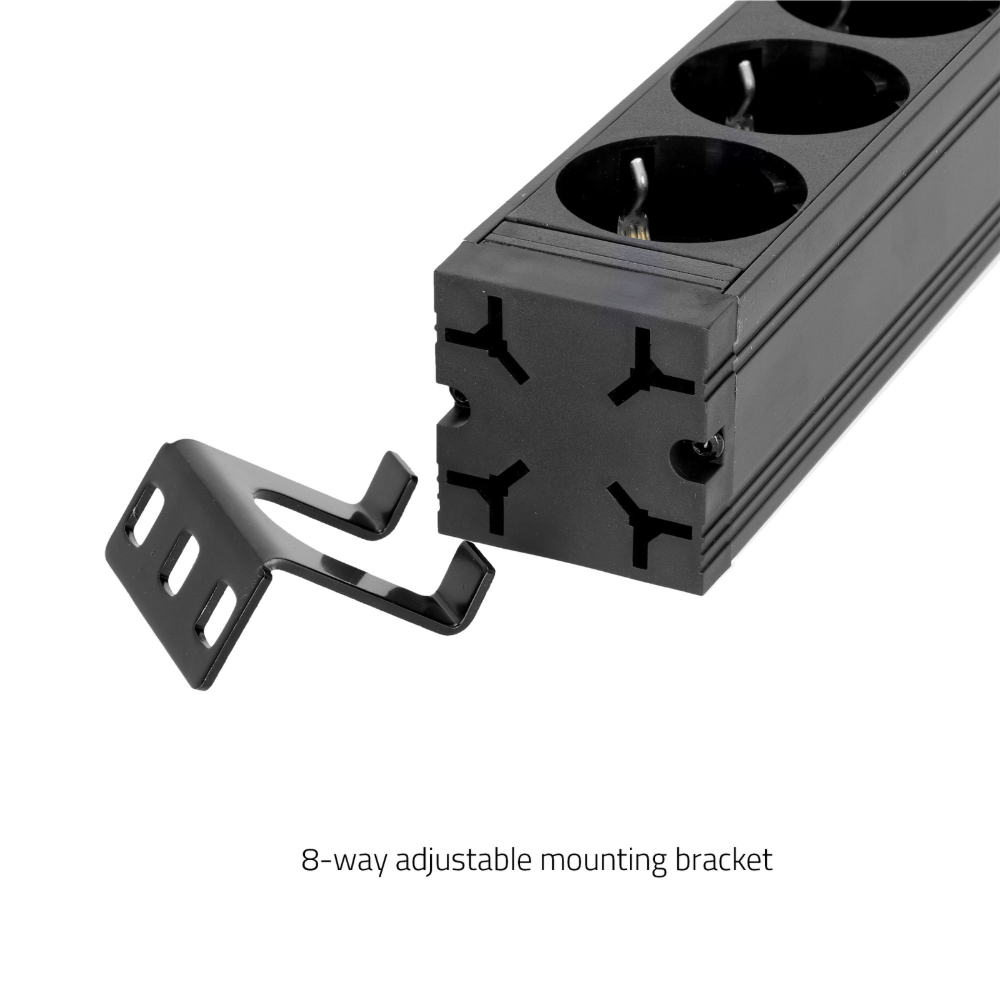

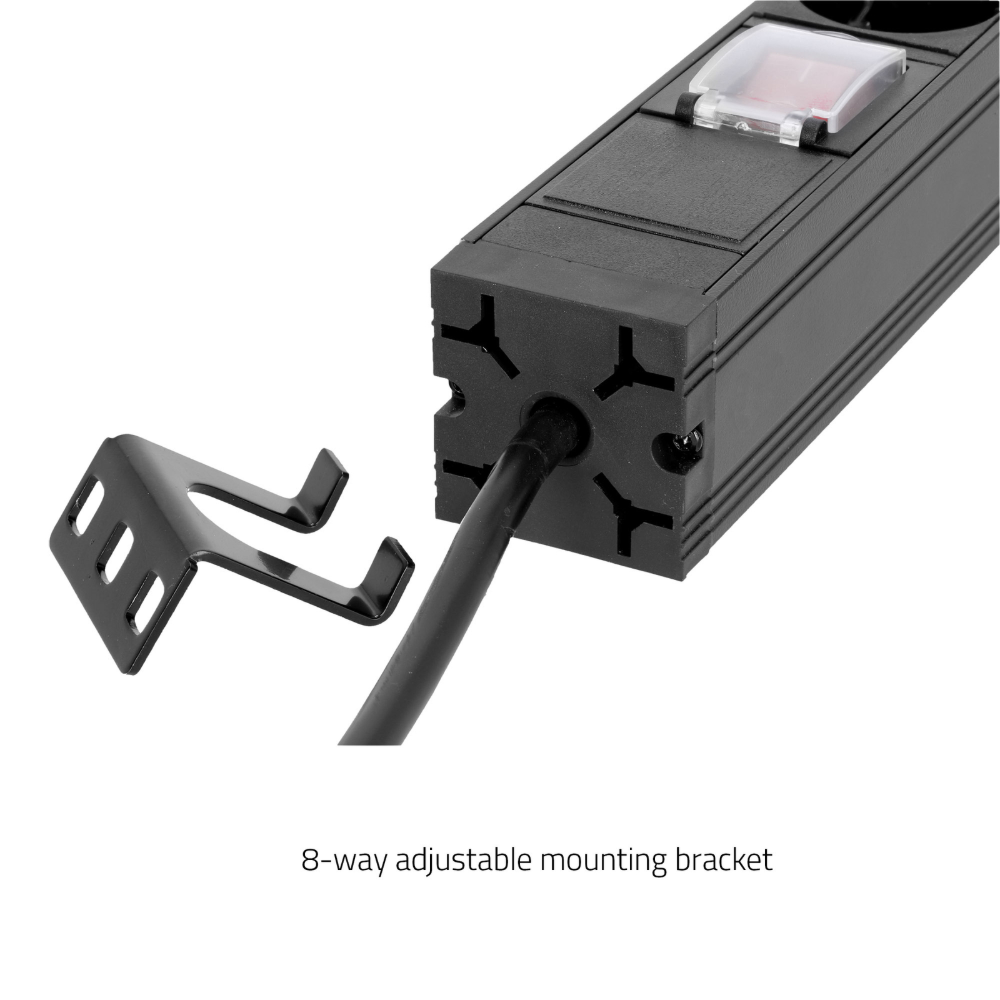

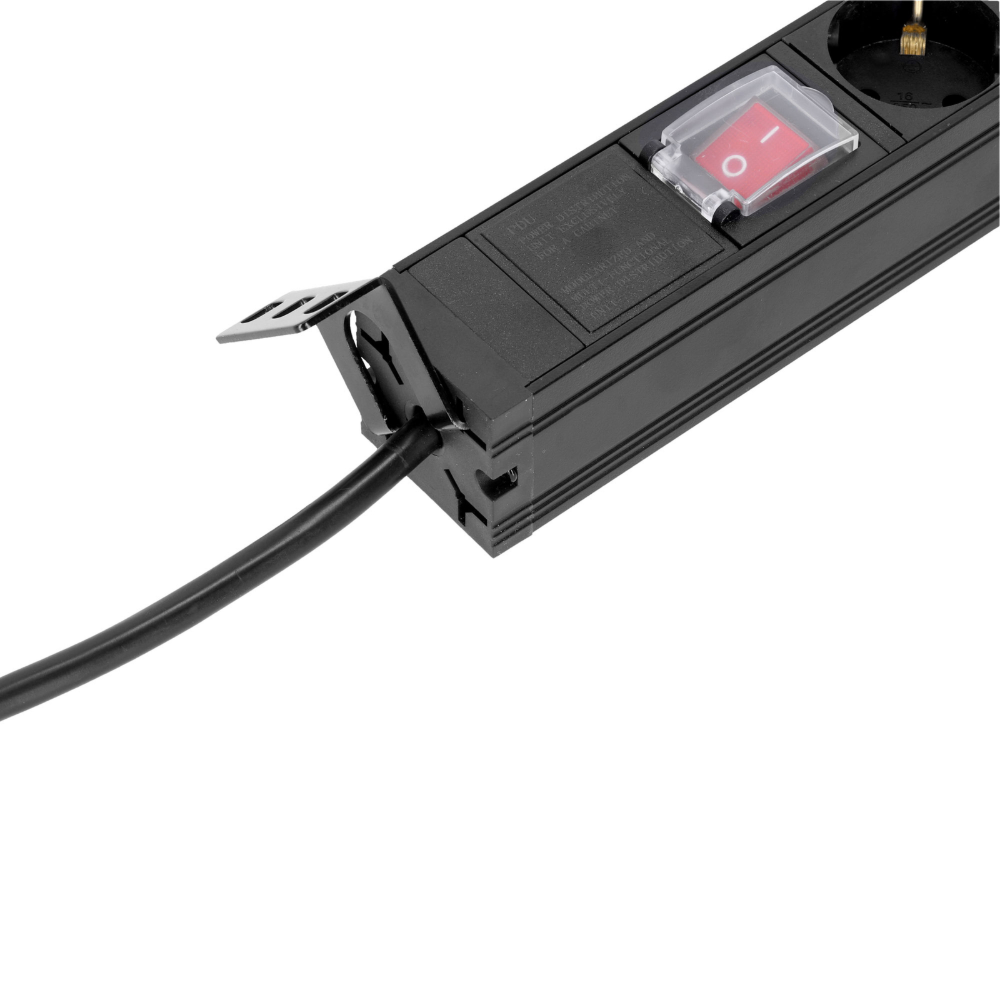

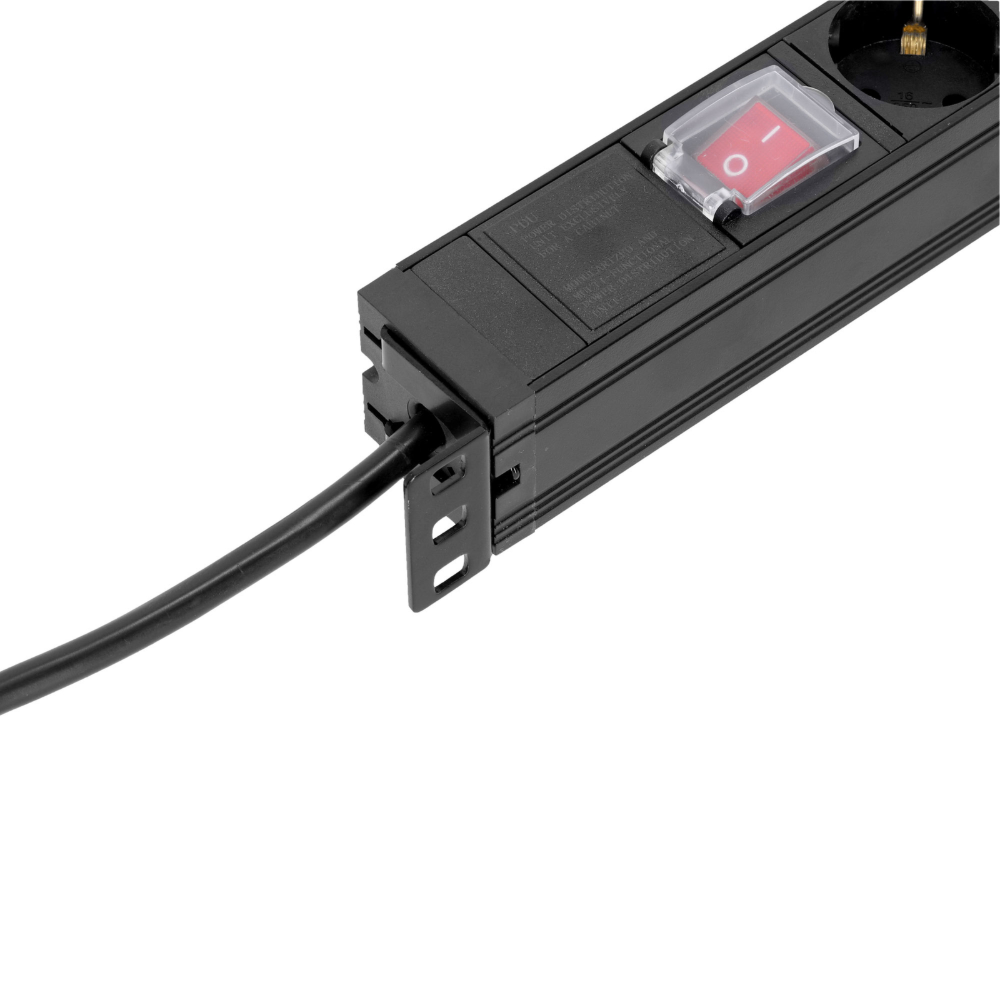

Like the other models in the series, it has 8-way adjustable rack angles, giving you unprecedented mounting freedom. You can choose to mount the strip forward, backward, recessed or at an angle depending on your cabling.

The cable entry is cleverly placed on the side of the robust aluminum housing to save installation depth, making it ideal for shallow rack cases. With oxygen-free copper (OFC) conductors and a capacity of 16 A, this is a reliable workhorse for both live sound, studio and permanent installations.
