RACK PDU 8S T

• General & Dimensions
  • Format: 19" / 1U rack mount
  • Width: 485 mm
  • Height: 45 mm
  • Depth: 52 mm
  • Weight: 960 g
• Power & Connections
  • Operating voltage: 100 V AC - 250 V AC / 50 - 60 Hz
  • Max current: 16 A
  • Input (Front): Power Twist (TRUE1® compliant) - IP65 rated
  • Outputs (Rear): 8 pcs Schuko (Type F, grounded)
  • Power Switch: Yes, illuminated On/Off on the front
• Cable & Conductors
  • Cable supplied: 1.8 m (Power Twist to CEE 7/7 Schuko)
  • Cable type: Robust rubber cable (H07RN-F)
  • Conductor area: 3 x 1.5 mm² (OFC - Oxygen Free Copper)
  • Cable diameter: 7.5 mm
  • Detachable cable: Yes
• Construction
  • Material: Aluminum chassis with plastic details
  • Color: Black

Description: Black

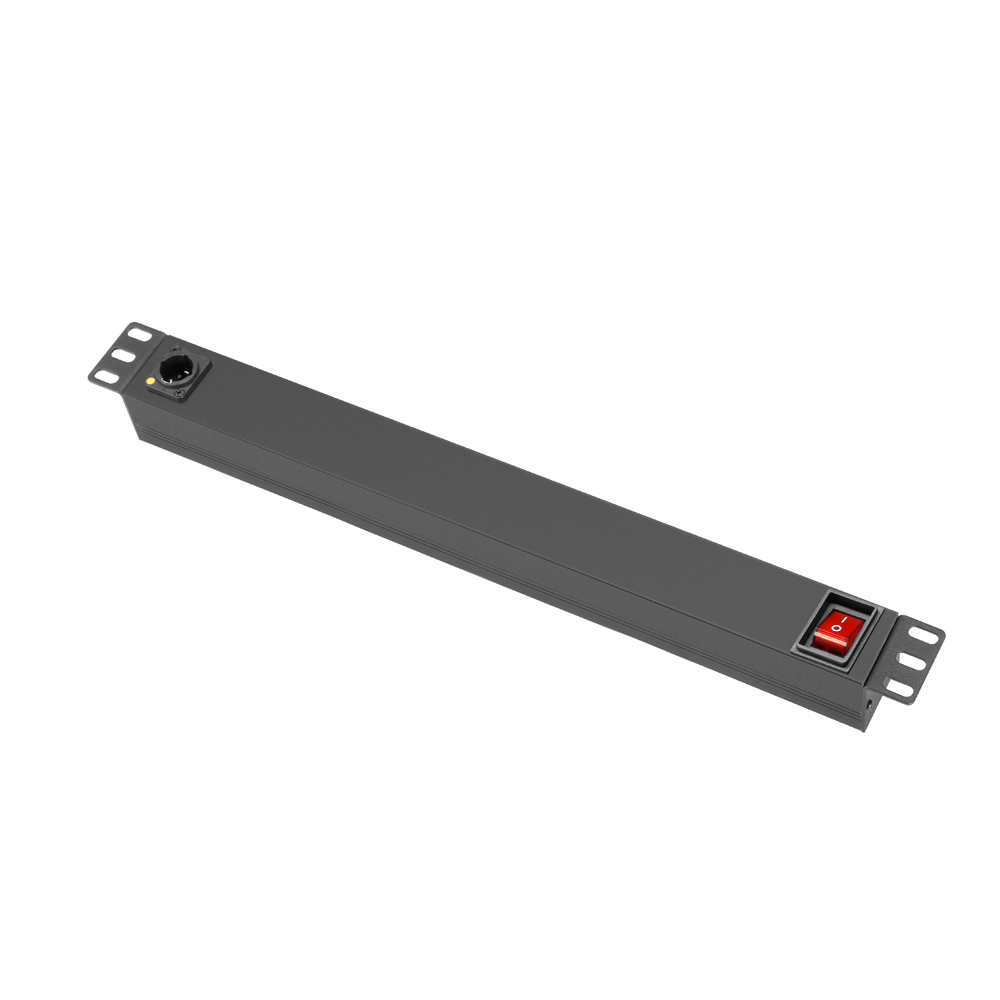

RACK PDU 8S T - Professional power distribution with lockable Power Twist inlet

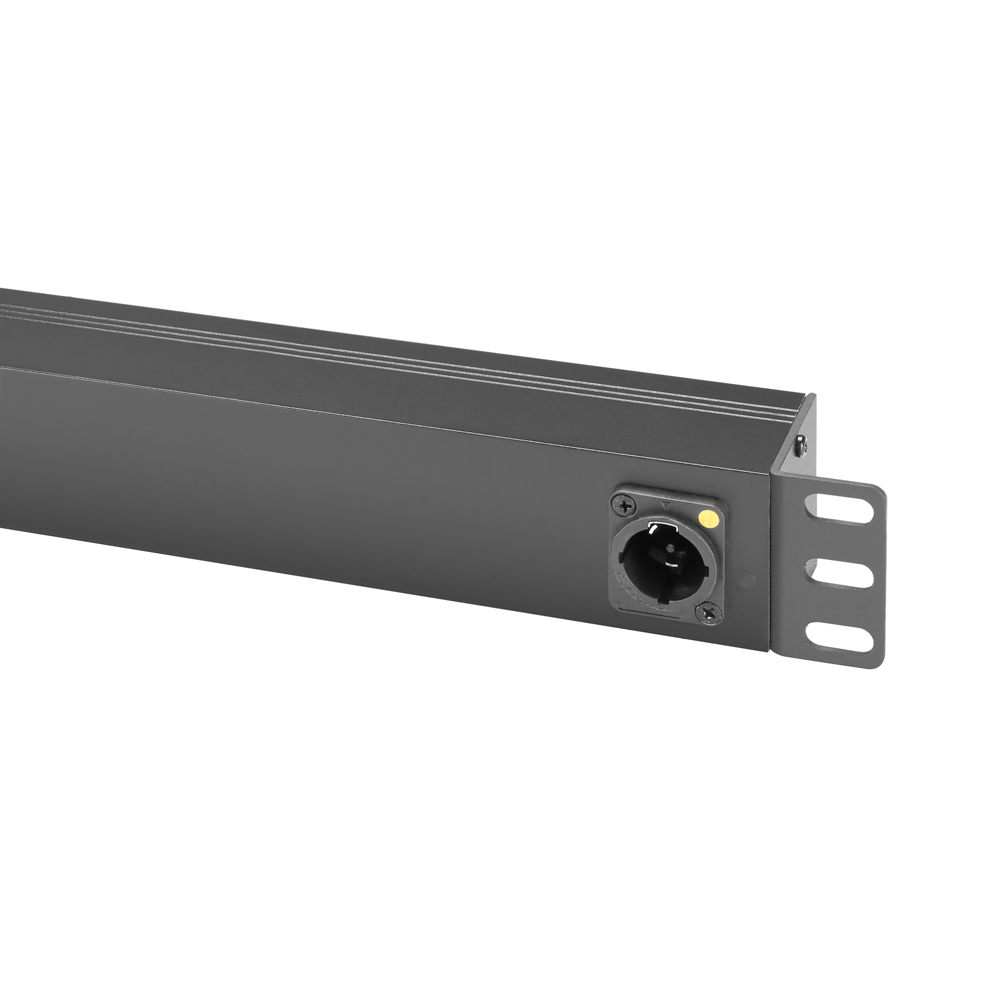

The RACK PDU 8S T (87471T) is designed for technicians who require the highest possible operational reliability in their rack environments. By placing a Power Twist inlet on the front panel, this unit offers a lockable connection that cannot be dislodged by vibration or someone accidentally tripping over the cable. This is a critical feature for racks containing mixers, servers or wireless systems.

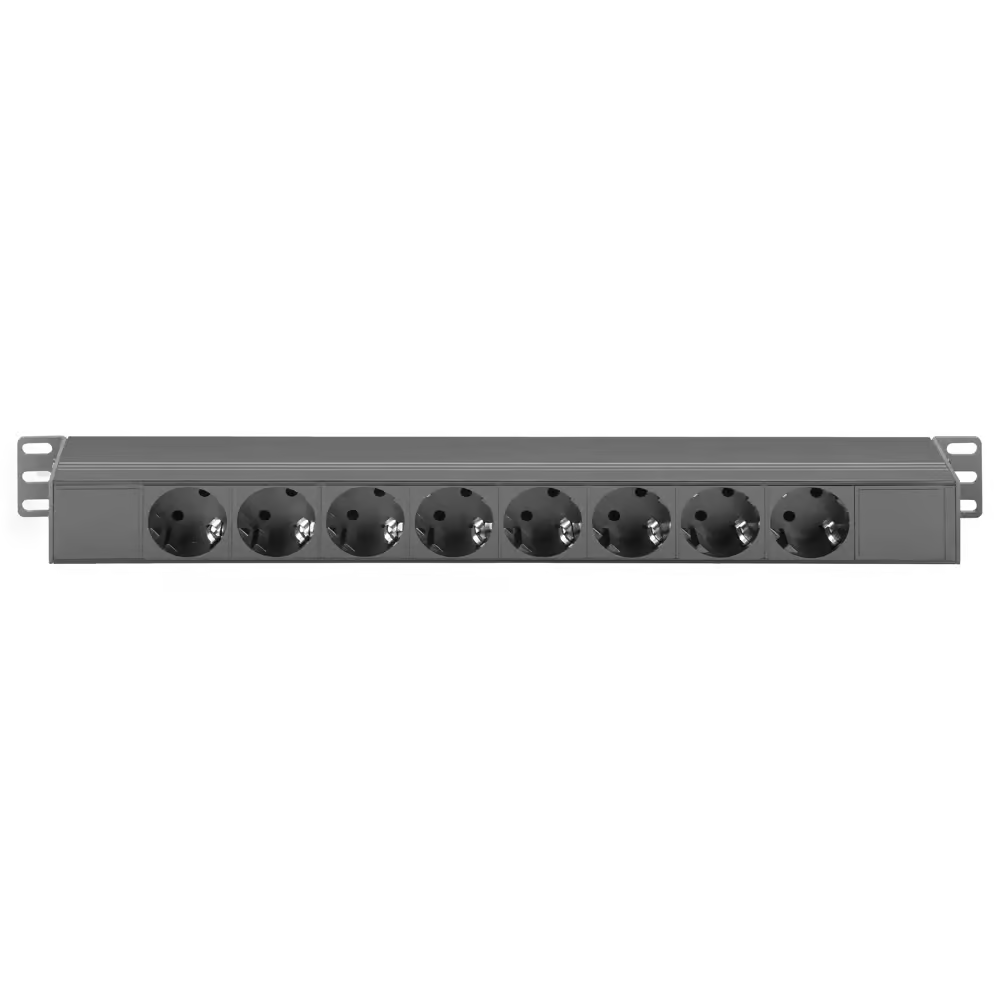

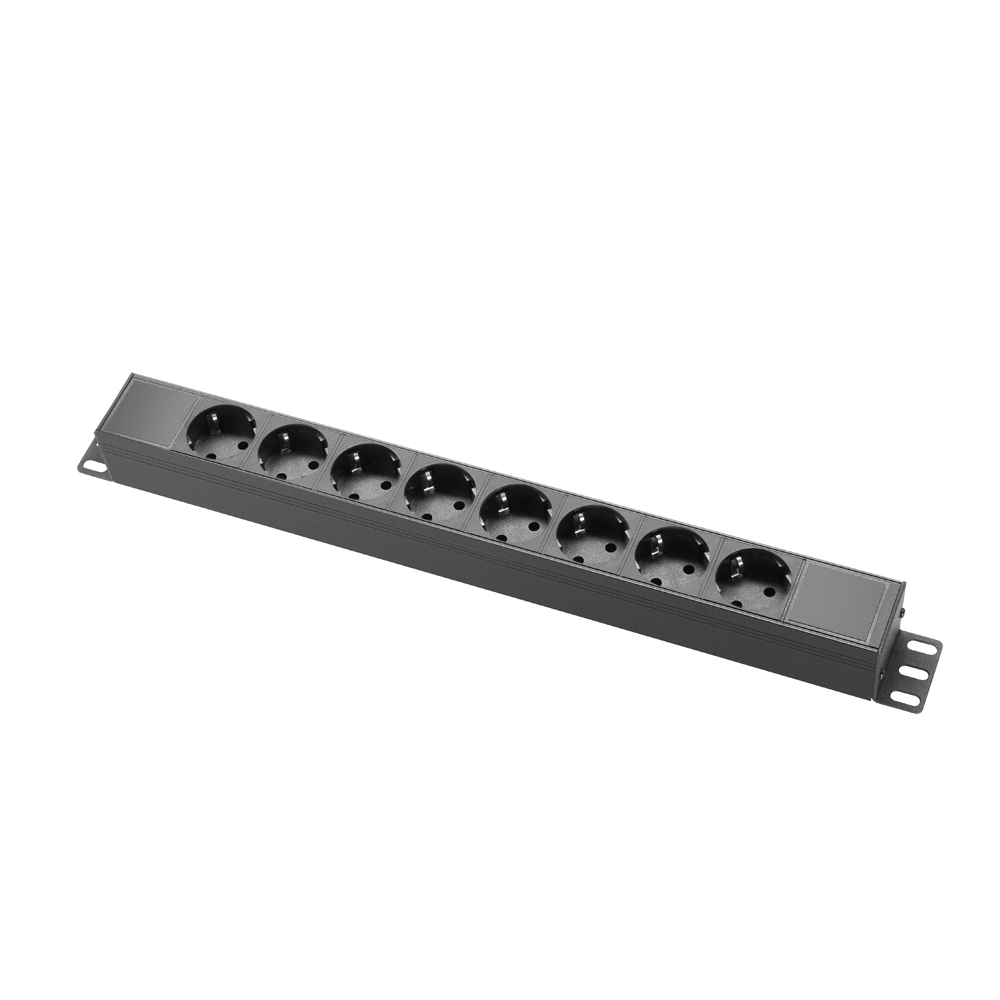

The unit delivers eight grounded Schuko outlets on the back, keeping the cabling neat and hidden inside the rack. The included 1.8 meter H07RN-F rubber cable is extremely durable and stays flexible even in cold environments, making it perfect for touring use.

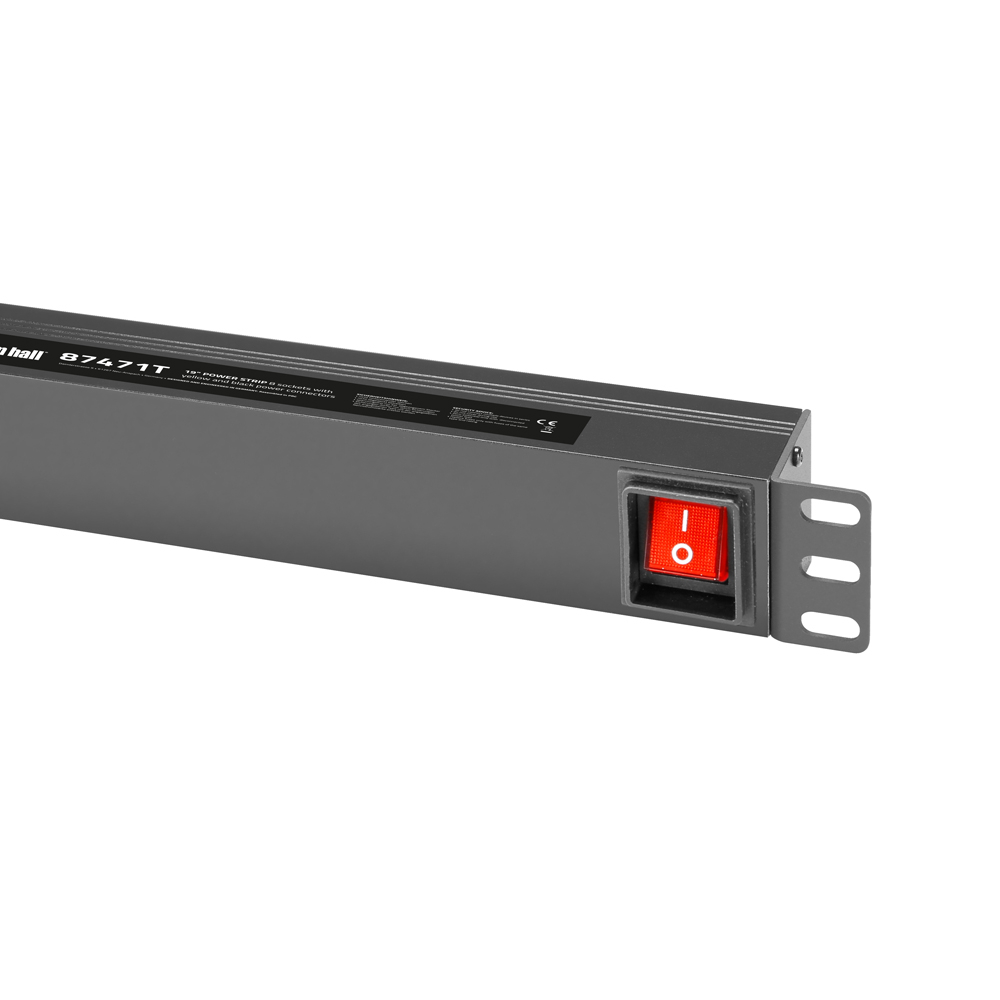

The aluminum chassis is both lightweight and robust, and with an illuminated power switch on the front, you always have control over the voltage status. With support for full 16A loads and oxygen-free copper (OFC) conductors, the RACK PDU 8S T is a reliable partner for any professional sound and light system.
