RACK PDU 9 CEE FI

Product Highlights

✓ 3 x phase control indicator lights (L1, L2, L3)

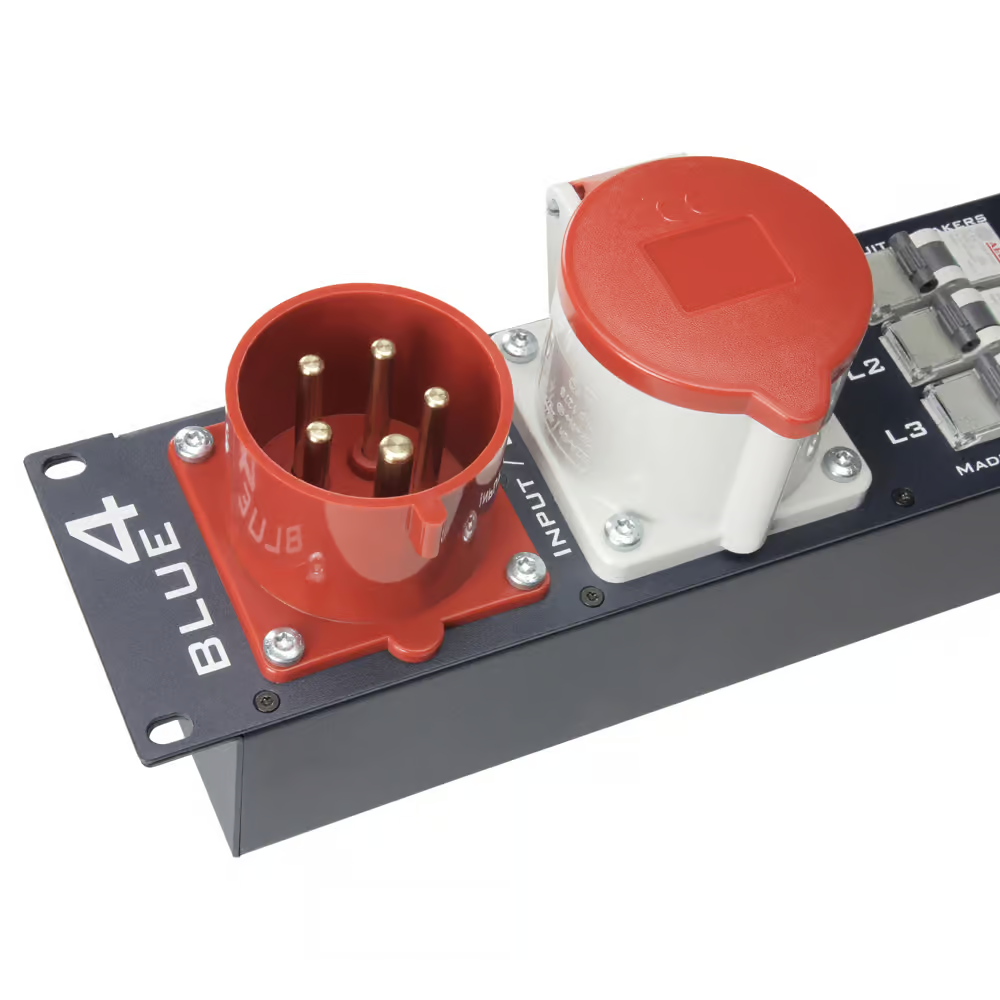

✓ Input via 32 A CEE socket (5-pin, red) for panel mounting

✓ Parallel output via 32 A CEE socket (5-pin, red)

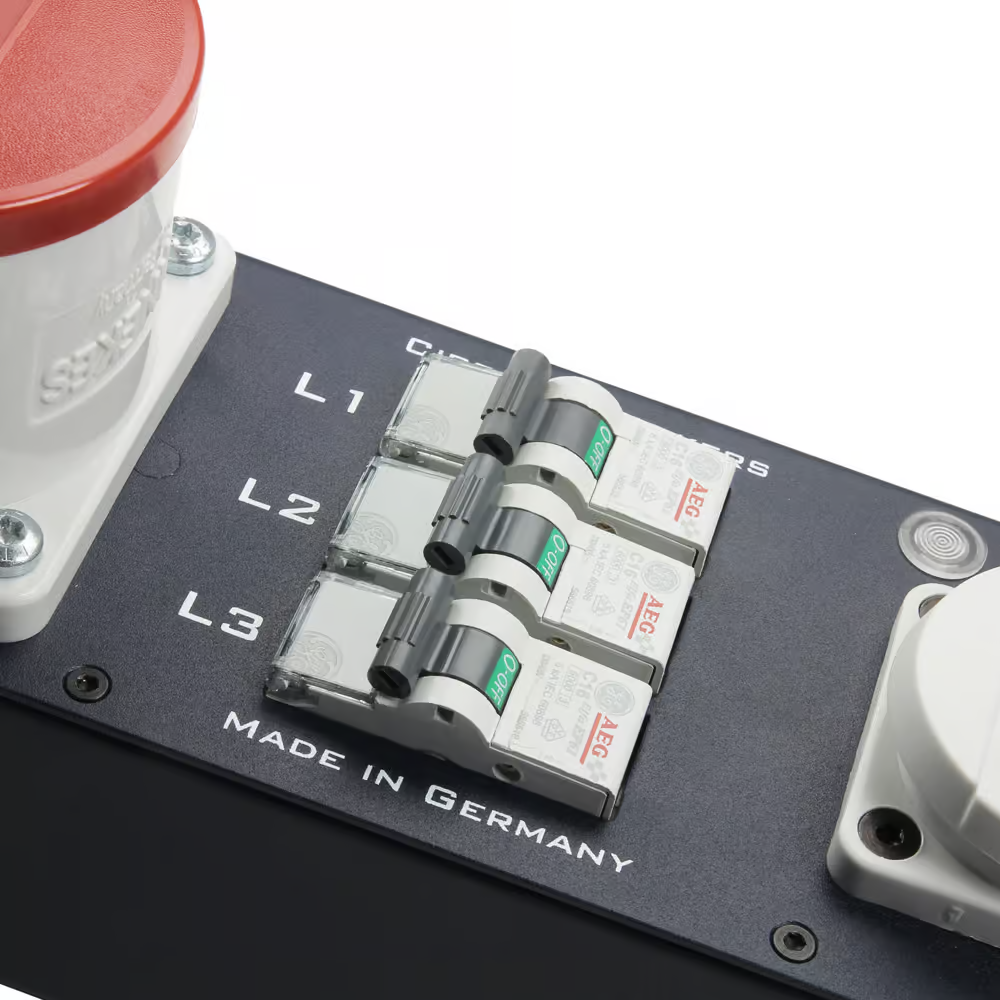

✓ Secured via 3 x C16 dwarf switches for reliable protection

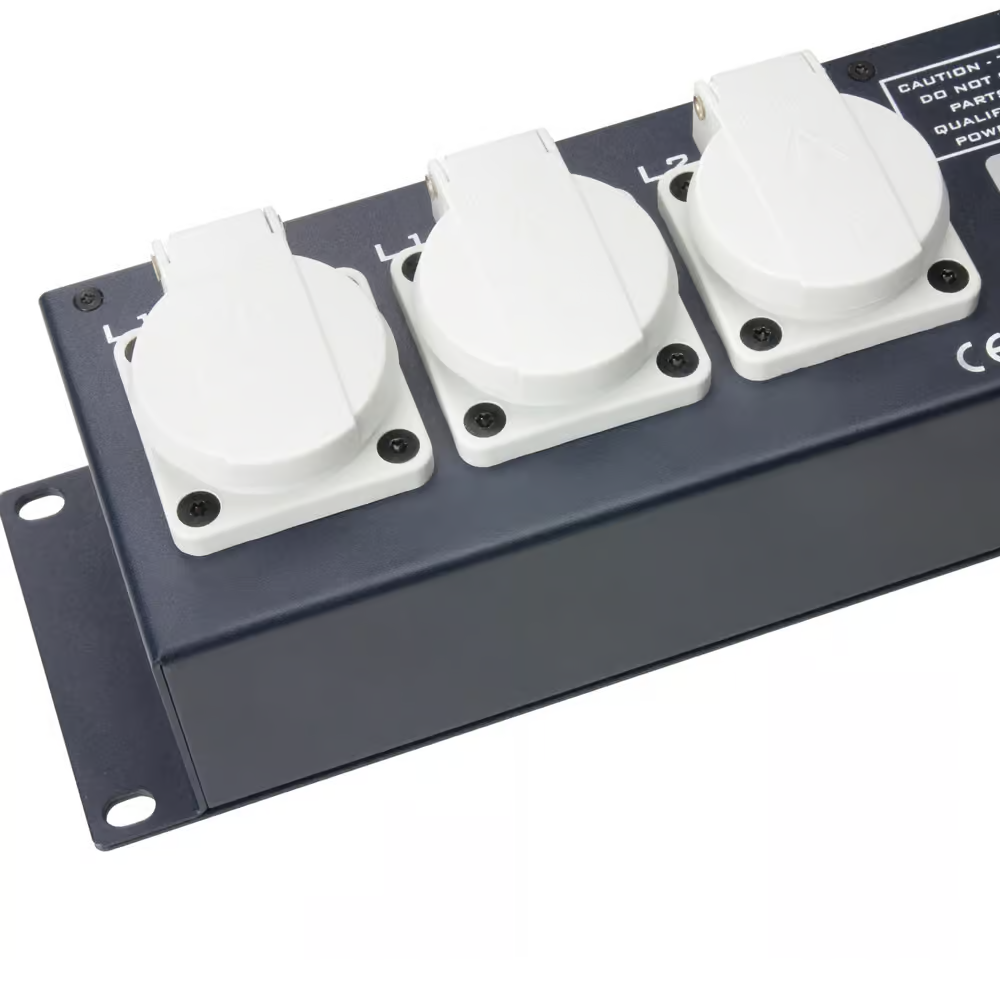

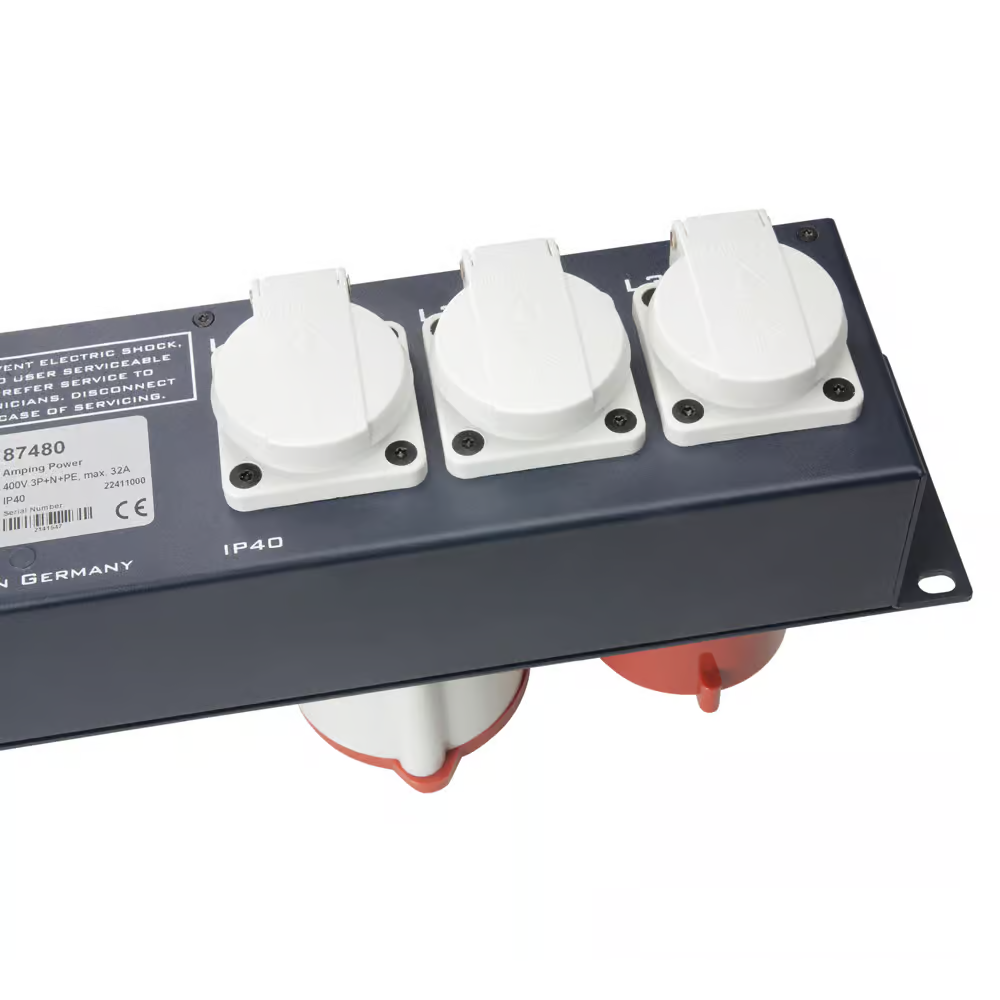

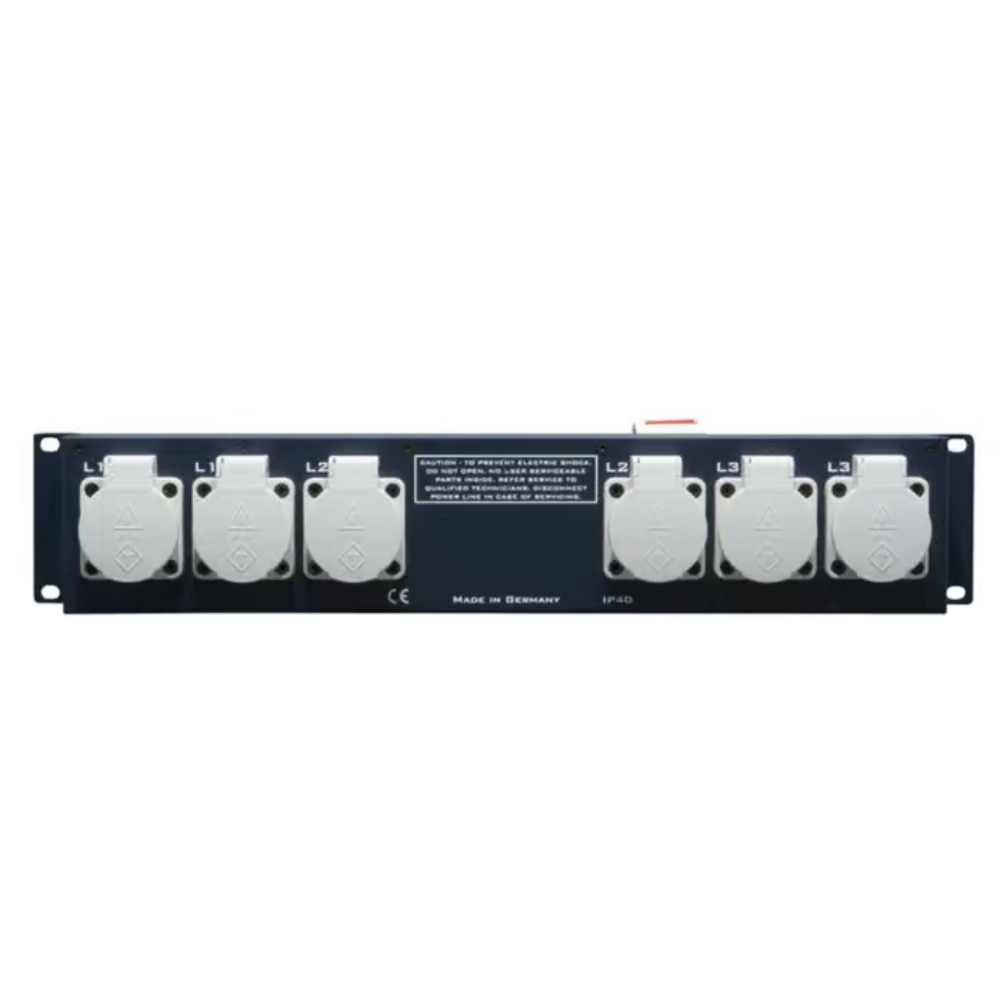

✓ Total of 9 Schuko sockets: 3 on the front and 6 on the back (with folding covers)

✓ Top quality - Made in Germany

✓ Equipped with original Mennekes® 32A CEE and Schuko sockets

Specifications

General
- Number of outputs: 10 in total
- Max current: 16 A per output
- Material: Robust steel housing
- Color: Blue
- Cable: Detachable
Connections & Protection
- Input: CEE 32A male (via detachable cable/inlet)
- Output 1-9: Schuko socket (female)
- Output 10 (Link): CEE 32A female (forwarding)
- Protection class (outputs): IP54 (Protected against dust and water splashes)
Construction
- Chassis material: Steel
- Conductor material: OFC (Oxygen Free Copper)
- Rack format: Designed for standard 19-inch rack mounting

Description of the unit

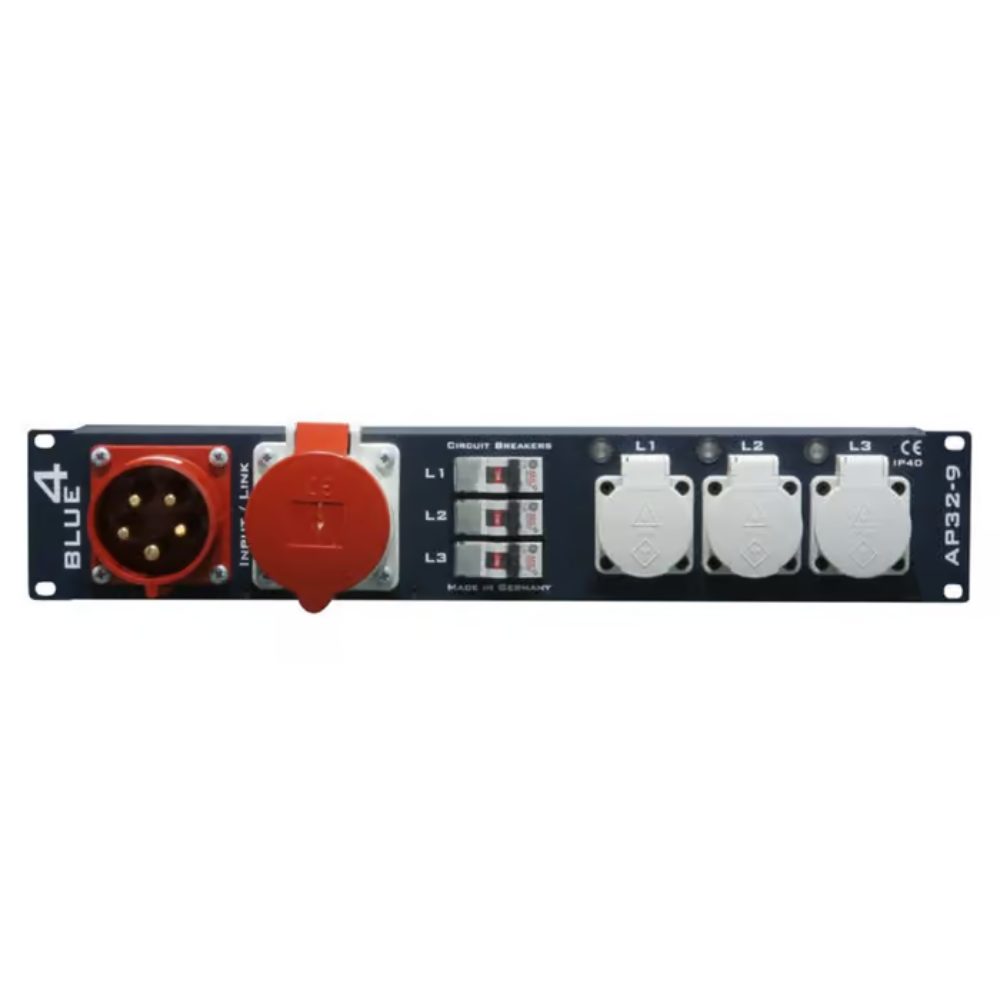

RACK PDU 9 CEE FI - Powerful and cost-effective power distribution unit for racks

RACK PDU 9 CEE FI is an optimized power distribution unit that serves as a reliable workhorse in your equipment rig. It is specially designed for daily use on stage and in touring operations, where it offers a safe and stable power supply to your conventional electricity needs.

The unit is built in a durable steel chassis and equipped with components that balance the highest safety requirements with a very favorable price/performance ratio. With nine IP54-rated Schuko so ckets on the front/rear, you have plenty of space to power end stages, wireless systems and peripherals.

And thanks to the CEE 32A jumper, you can easily route power to the next rack or power distribution unit in the chain, making your cabling cleaner and more efficient. RACK PDU 9 CEE FI is the obvious choice for those who want order and safe power in your rack without blowing the budget.
