PRO PORT 4 T

• General & Dimensions
  • Format: Professional power distributor for stage & rope
  • Width: 318 mm
  • Height: 65 mm
  • Depth: 78 mm
  • Weight: 1,02 kg
• Power & Connections
  • Operating voltage: 100 V AC - 230 V AC / 50 - 60 Hz
  • Maximum current: 16 A
  • Input (In): Power Twist TR1 (Black/Yellow) - TRUE1® compatible
  • Output (Link): Power Twist TR1 (Black/Yellow) - TRUE1® compatible
  • Outputs (Local): 4 pcs Schuko (Type F) with IP54 folding covers
• Construction & Assembly
  • Material: Robust, powder-coated steel
  • Color: Black
  • Mounting: 2 x M10 threaded inserts for panty clamps
  • Protection class: IP20 (Chassis) / IP54 (Outlets with closed covers)
  • Input protection: IP65 rated Power Twist connectors
• Conductors
  • Material: OFC (Oxygen Free Copper)
  • Conductor area: 3 x 1.5 mm²

Description of the product

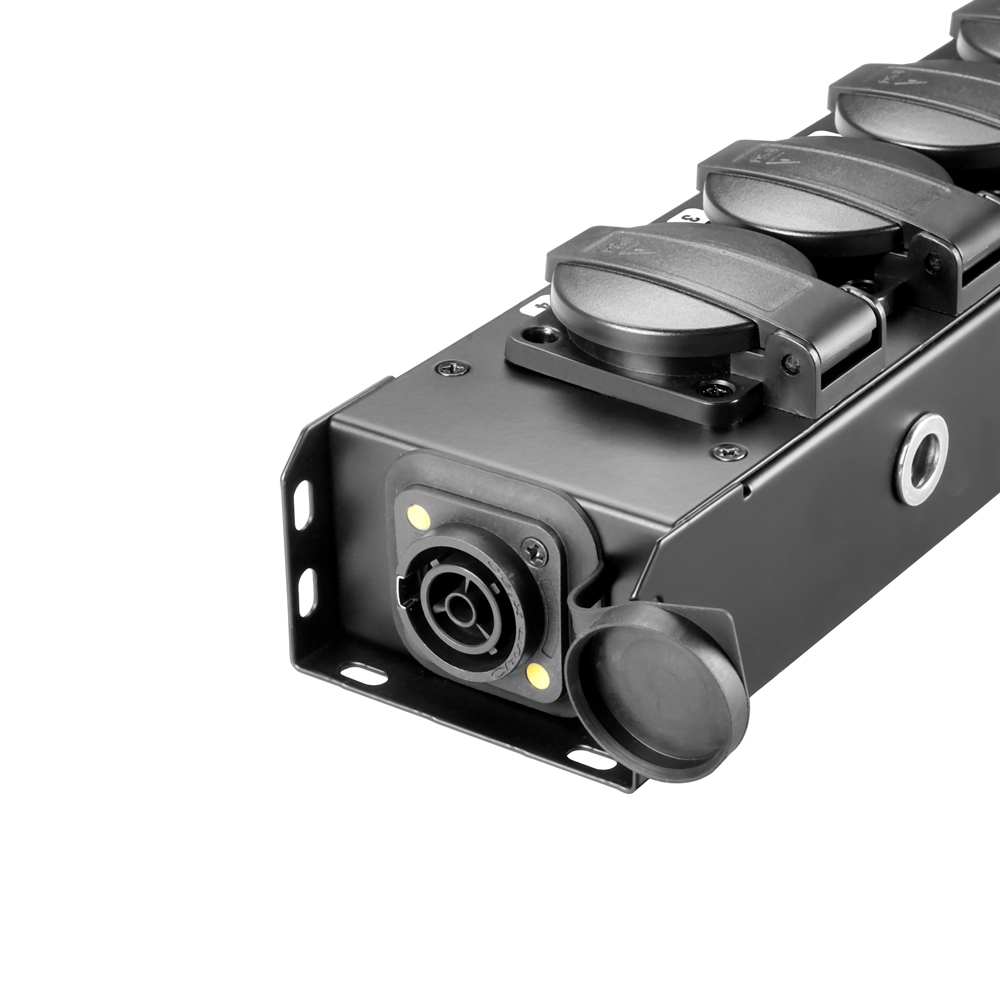

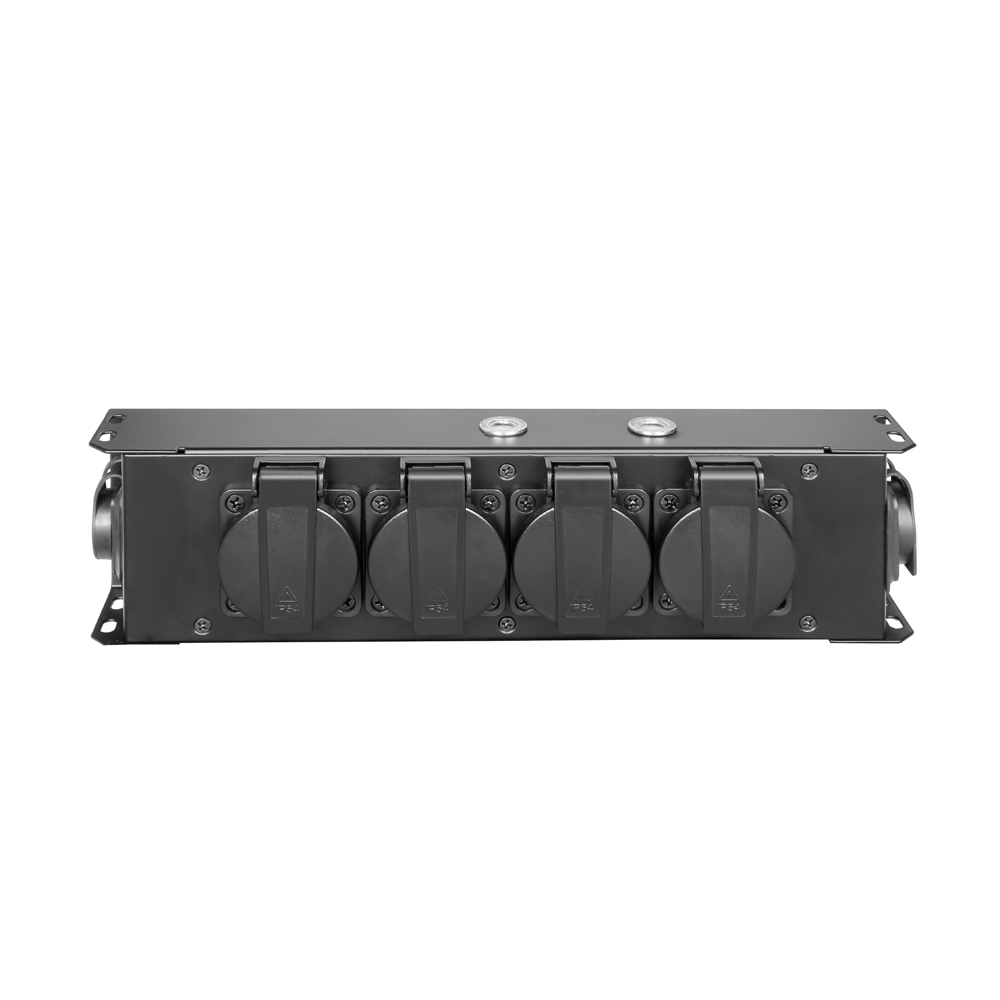

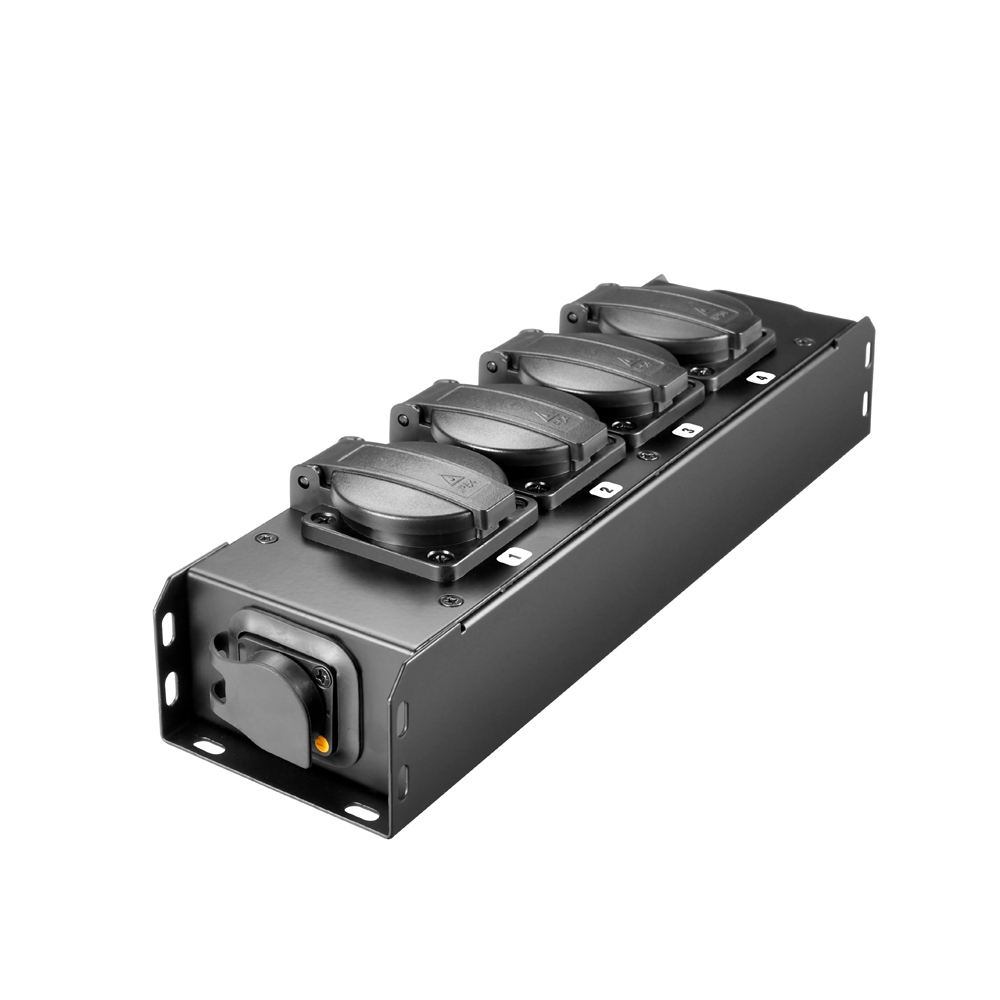

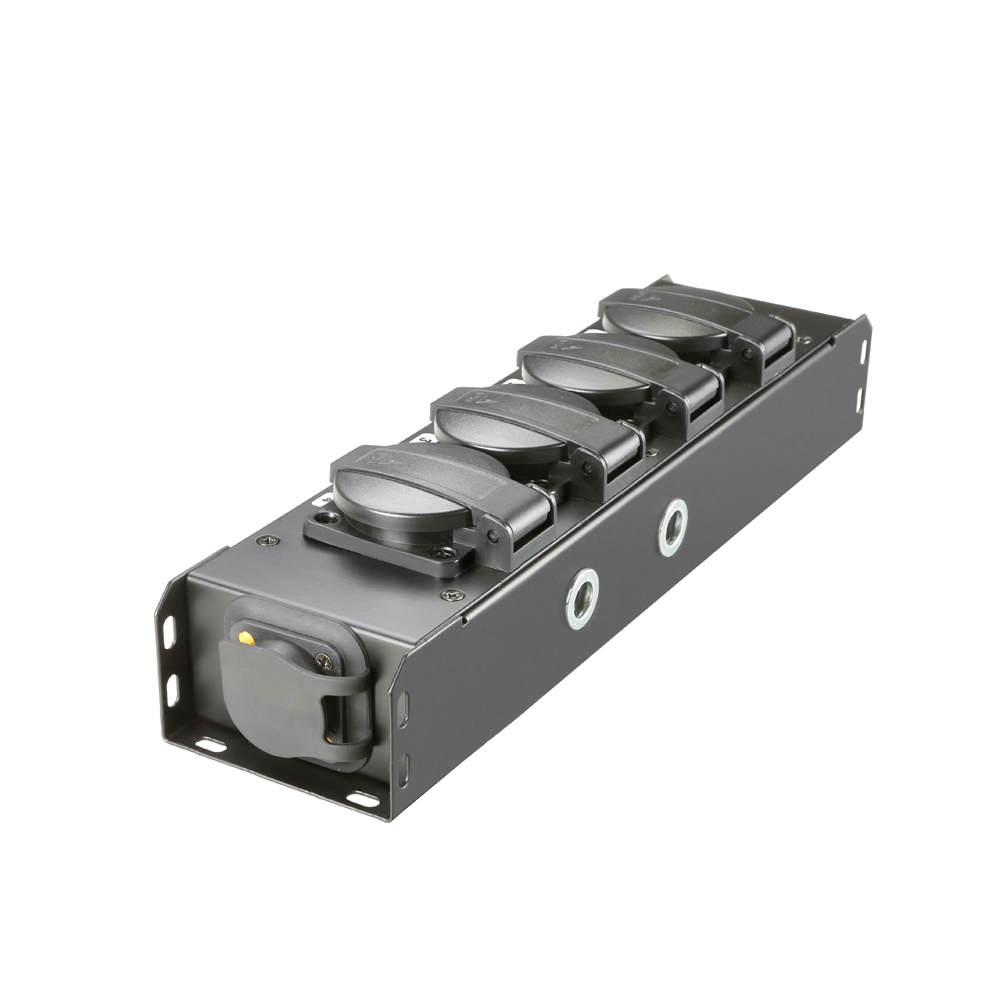

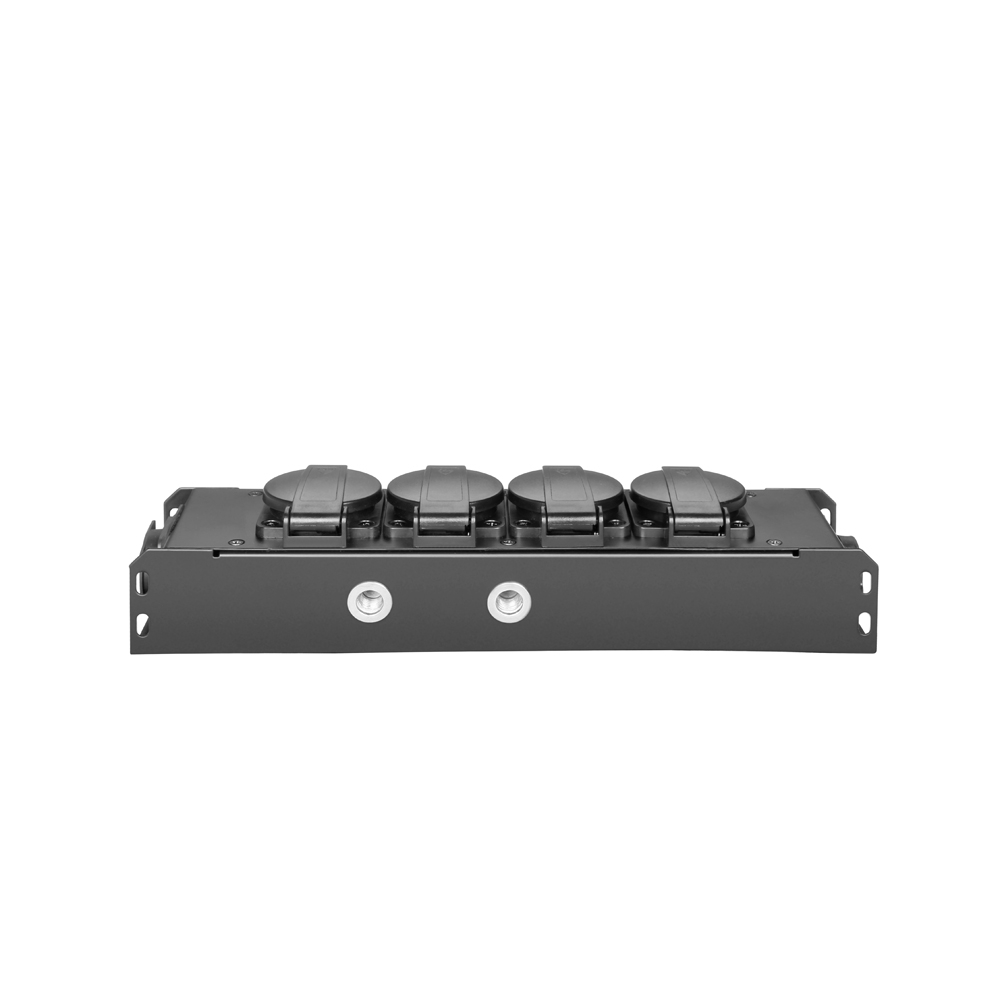

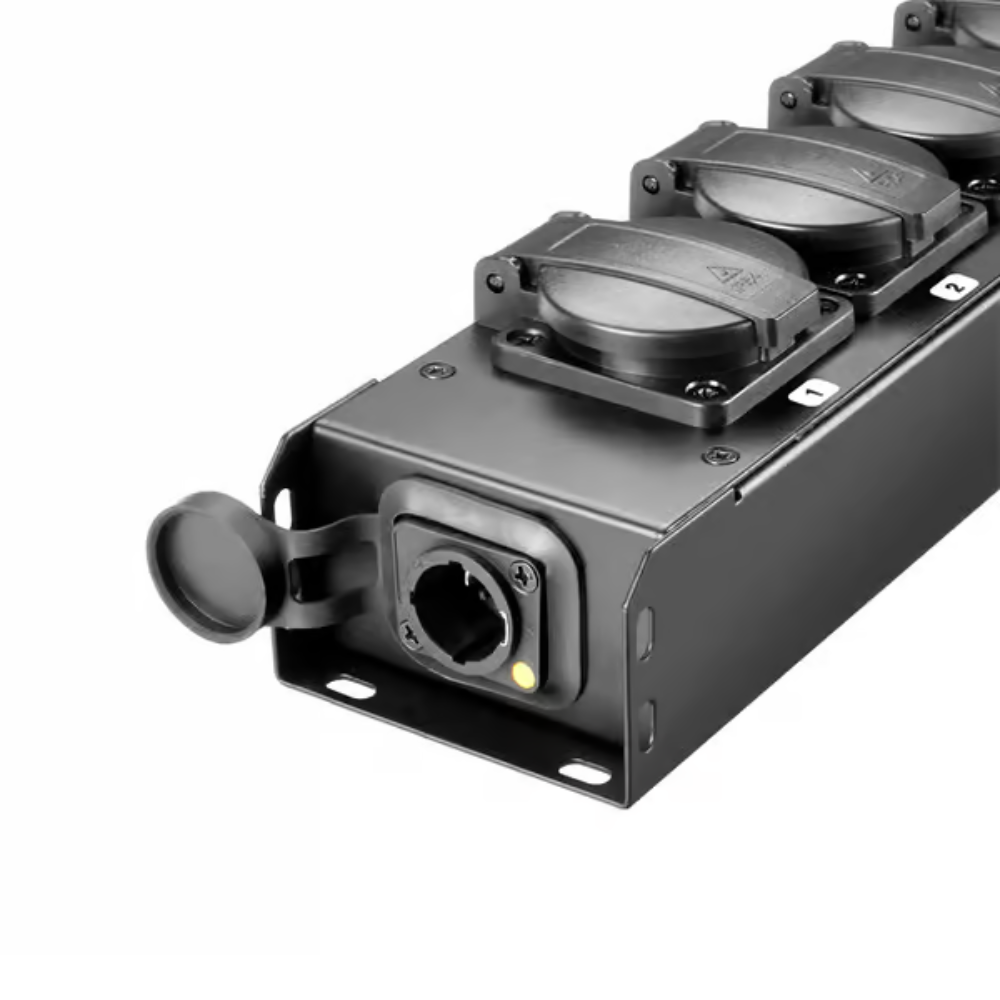

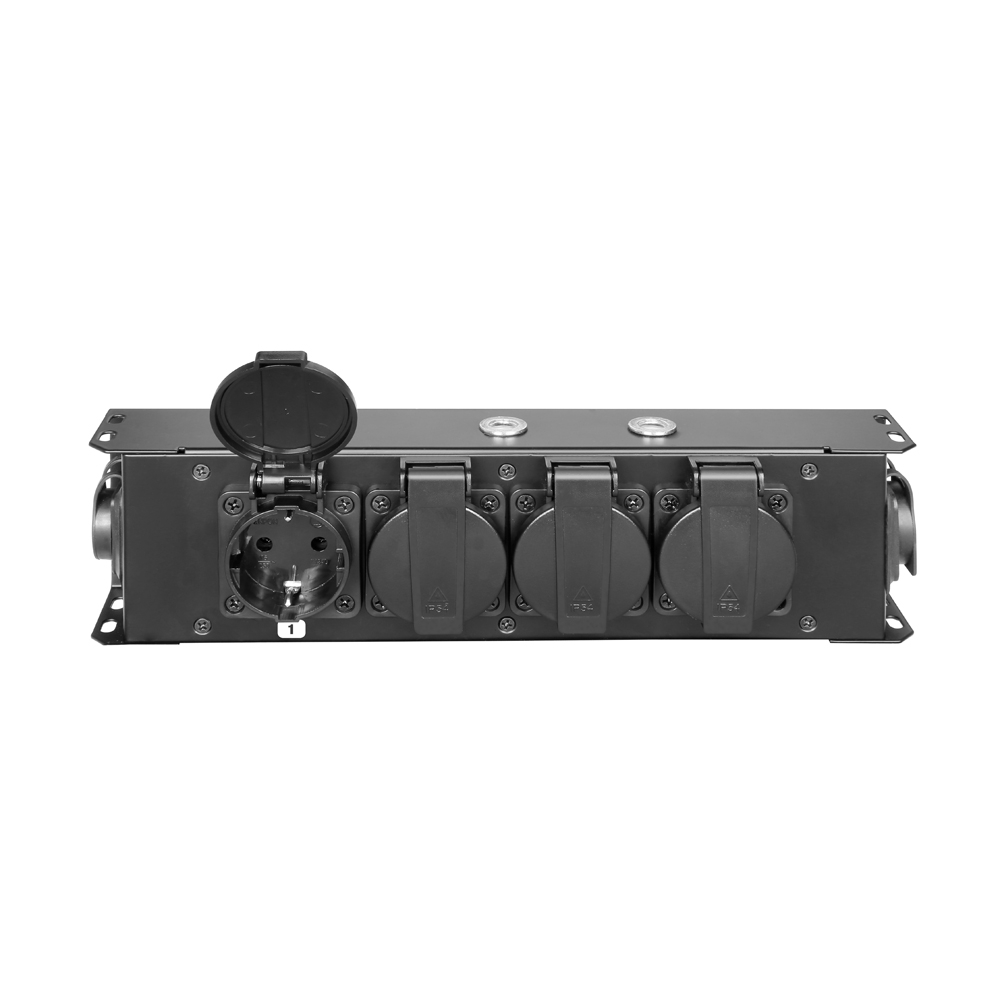

PRO PORT 4 T - Advanced power distribution with Power Twist TR1

PRO PORT 4 T is the ultimate solution for neat and specific power distribution in demanding environments. It is specially designed for use on stages, in ropes and in mobile equipment rigs where safety and reliability are top priorities.

The robust metal enclosure houses four grounded sockets with IP54-rated folding covers, protecting against dust and moisture. What sets the "T" model apart are the black and yellow Power Twist TR1 connectors for incoming power and call forwarding. These connectors are not only lockable, but also approved to be connected and disconnected under load (CBC), providing an extra layer of protection during rapid re-rigging.

For professional truss mounting, the unit is equipped with two M10 threaded inserts. This allows you to attach the unit stably with standard clamps instead of insecure solutions. With its solid steel construction and oxygen-free copper (OFC) conductors, the PRO PORT 4 T is an investment that will last for countless productions.
