PRO PORT 6 T
Highlights:
- Mobile power distribution unit from our PRO PORT® series
- Equipped with 6 x Schuko sockets (IP54)
- Power supply IP65 IN socket and IP65 continuation OUT (compatible with all TRUE1® connectors)
- Robust metal housing with IP20 protection
- Includes 2 x M10 mounting points (e.g. for Adam Hall Super Clamp)
- Phone number: 040-546511
- E-Mail: contact@stagebrands.com
- BrandAdam Hall
- ManufacturerAdam Hall
Description
Article no.: AHPROPORT6T
Specifications
- General
- Input connector type: Mains plug device outdoor male & TRUE1®
- Input protection class: IP65
- Output connector type: Schuko socket female
- Output protection class: IP54
- Output 2nd connector type: Mains plug device outdoor female & TRUE1®
- Mounting: M10
- Material: Steel
- Coating: Powder coated
- Number of outputs: 7
- Color: Black
- Operation voltage: 100 V AC - 230 V AC / 50 - 60 Hz
- Max. amperage: 16 A
- Line
- Conductor material: OFC (Oxygen-free copper)
- Conductor cross-section: 1.5 mm²
- Environmental
- Protection class: IP20
- Dimensions & weight
- Width: 399 mm
- Height: 65 mm
- Depth: 78 mm
- Weight: 1.35 kg
Description of the product
PRO PORT 6 T

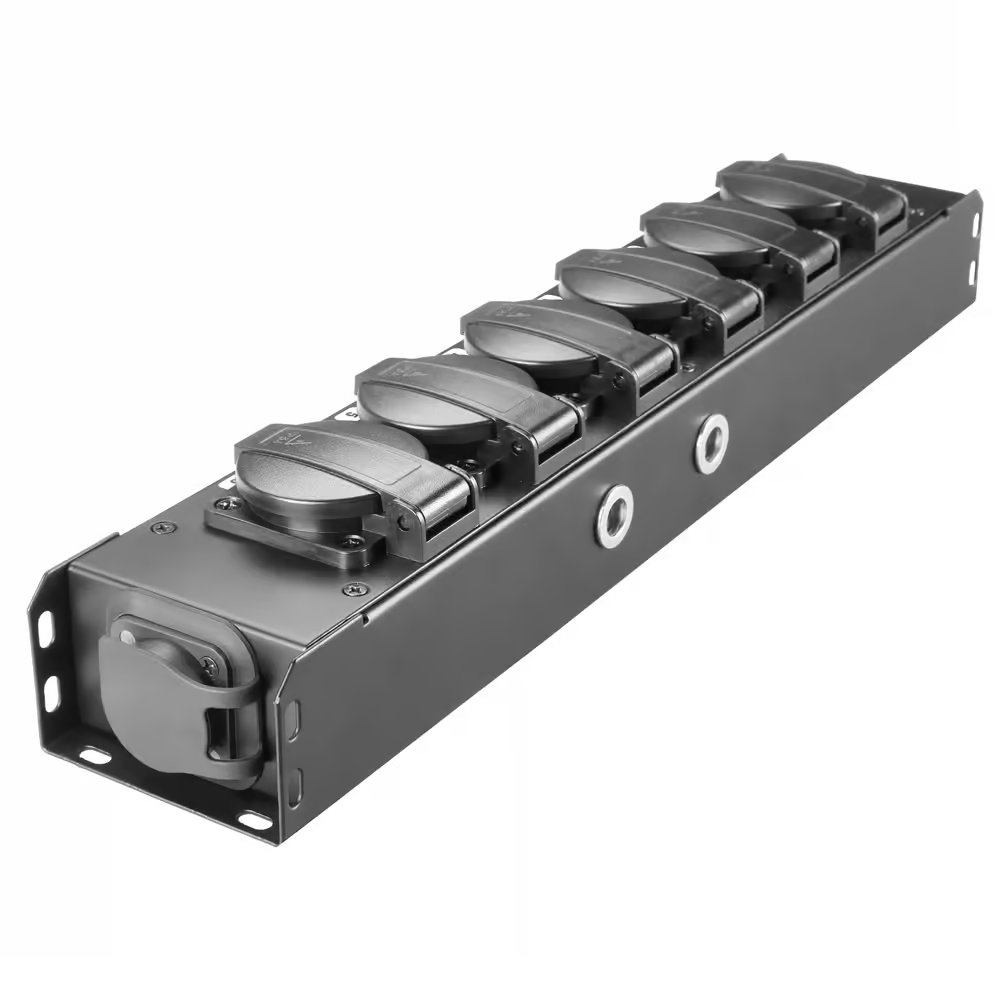

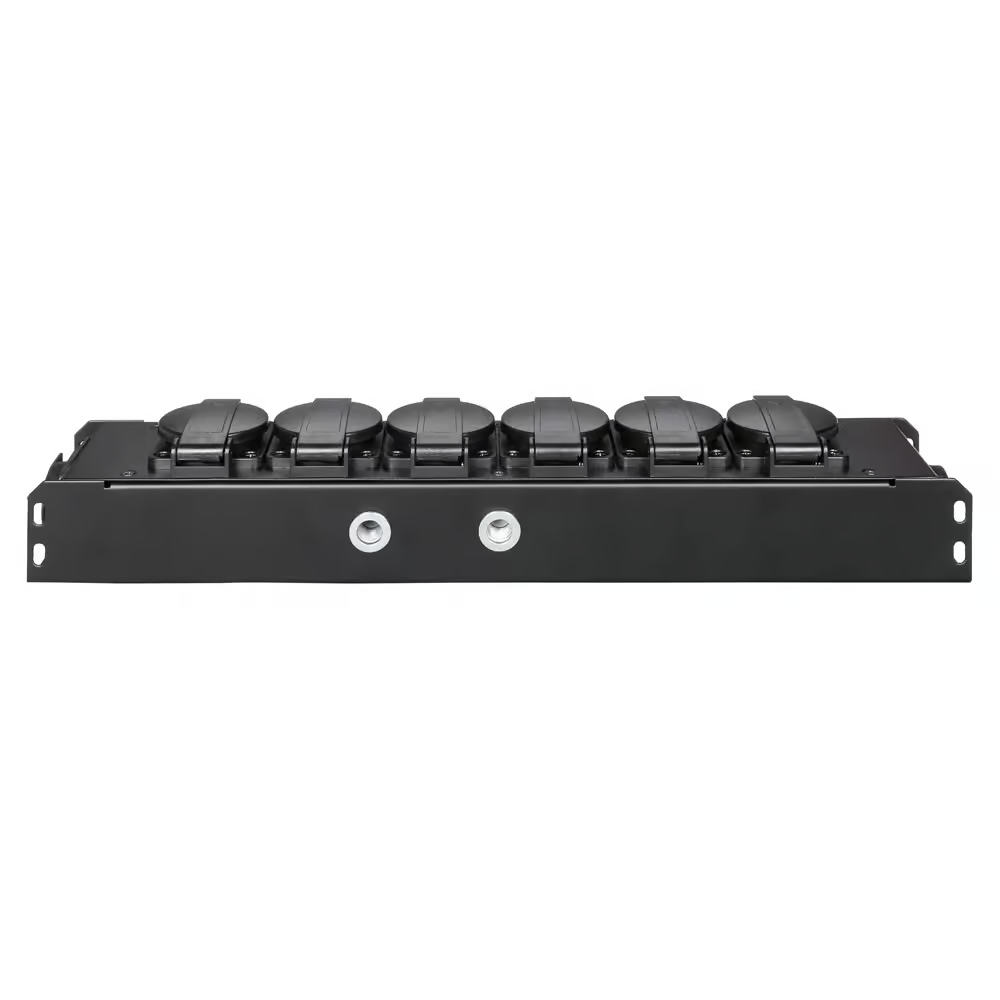

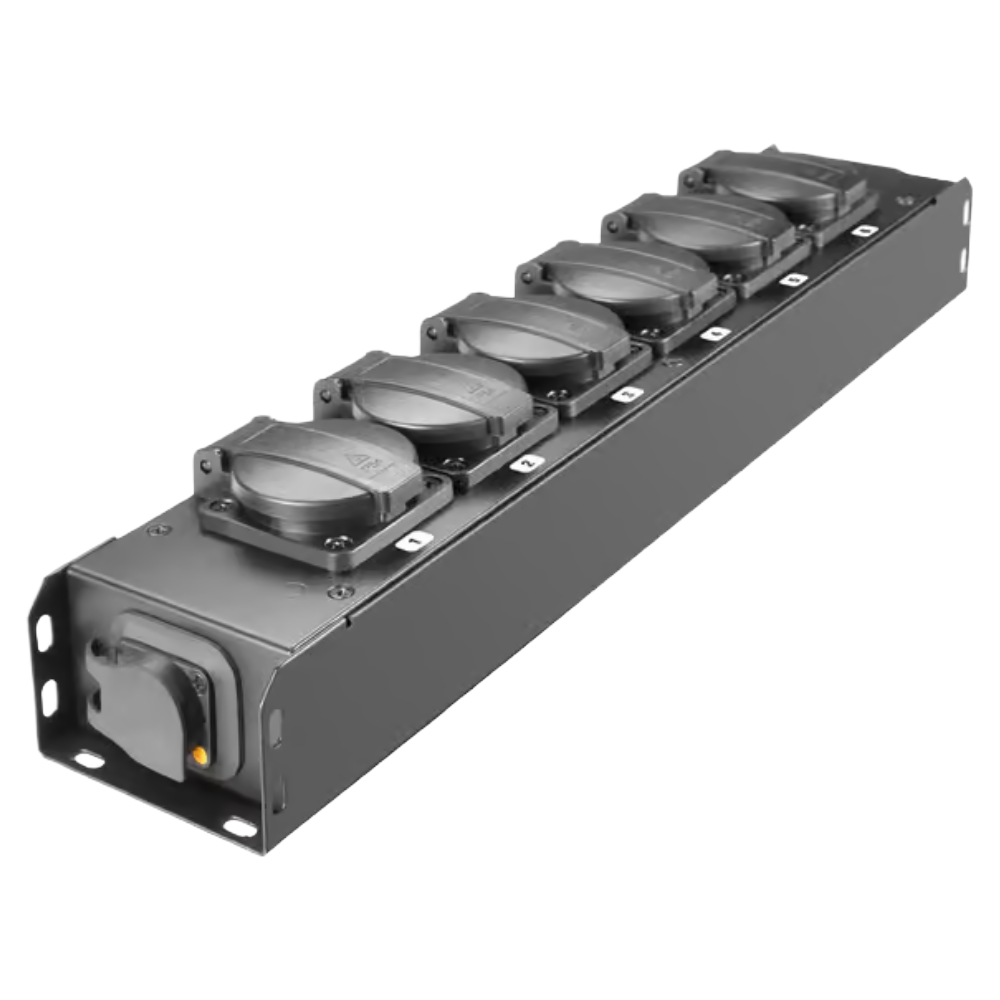

The PRO PORT 6 T is the ideal power strip for tidy and specific power distribution on stage, on trusses and in equipment rigs.

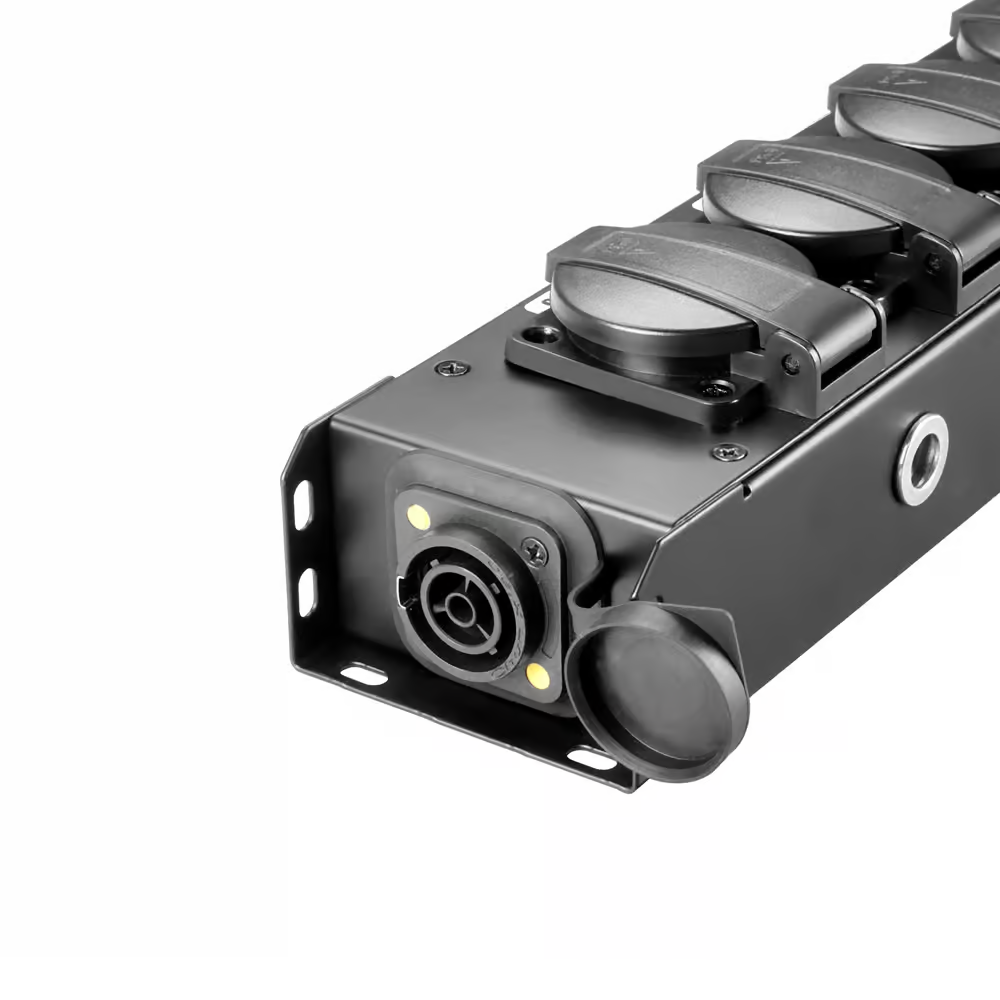

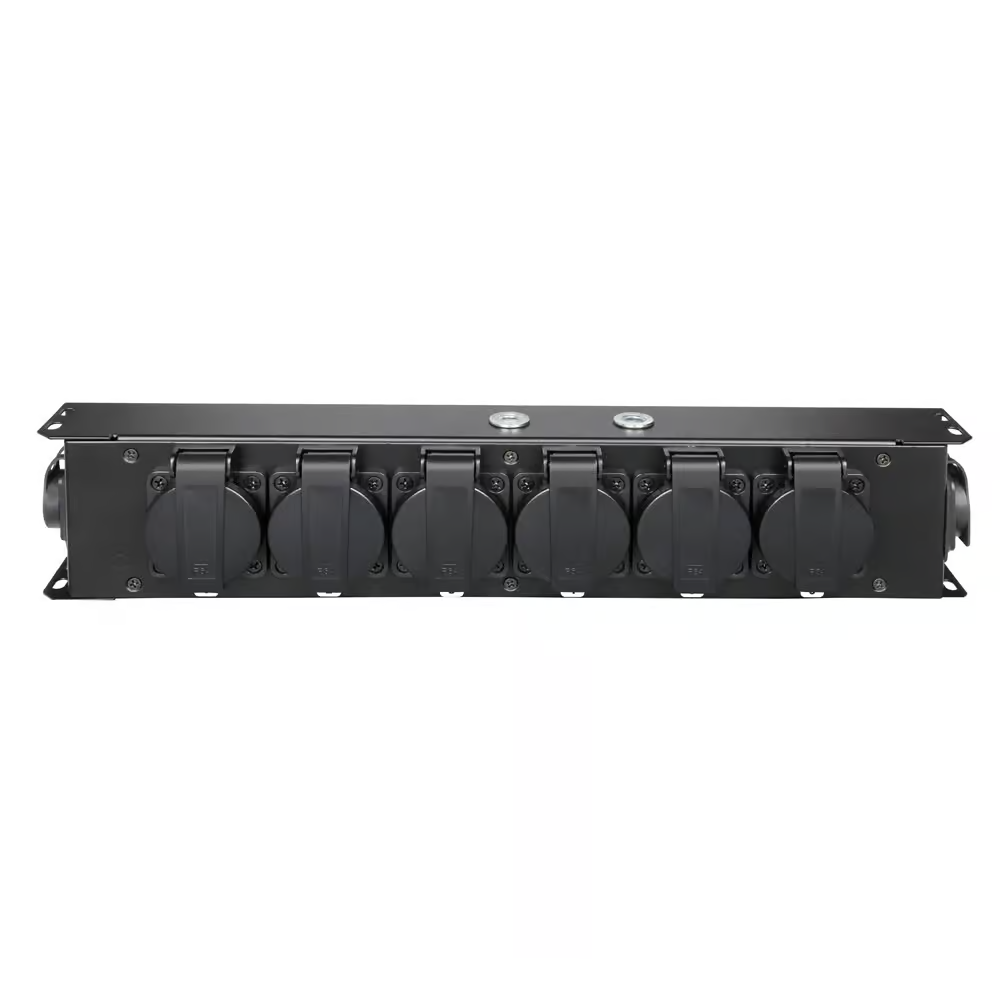

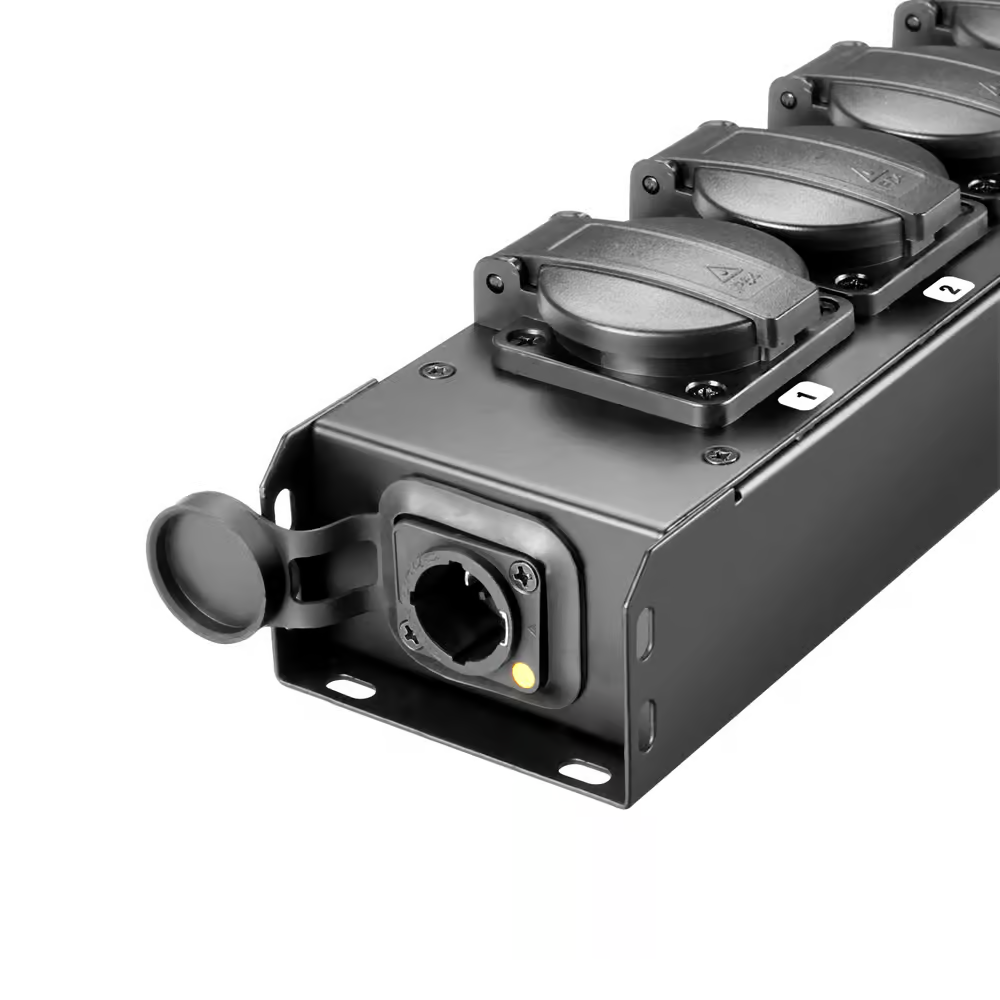

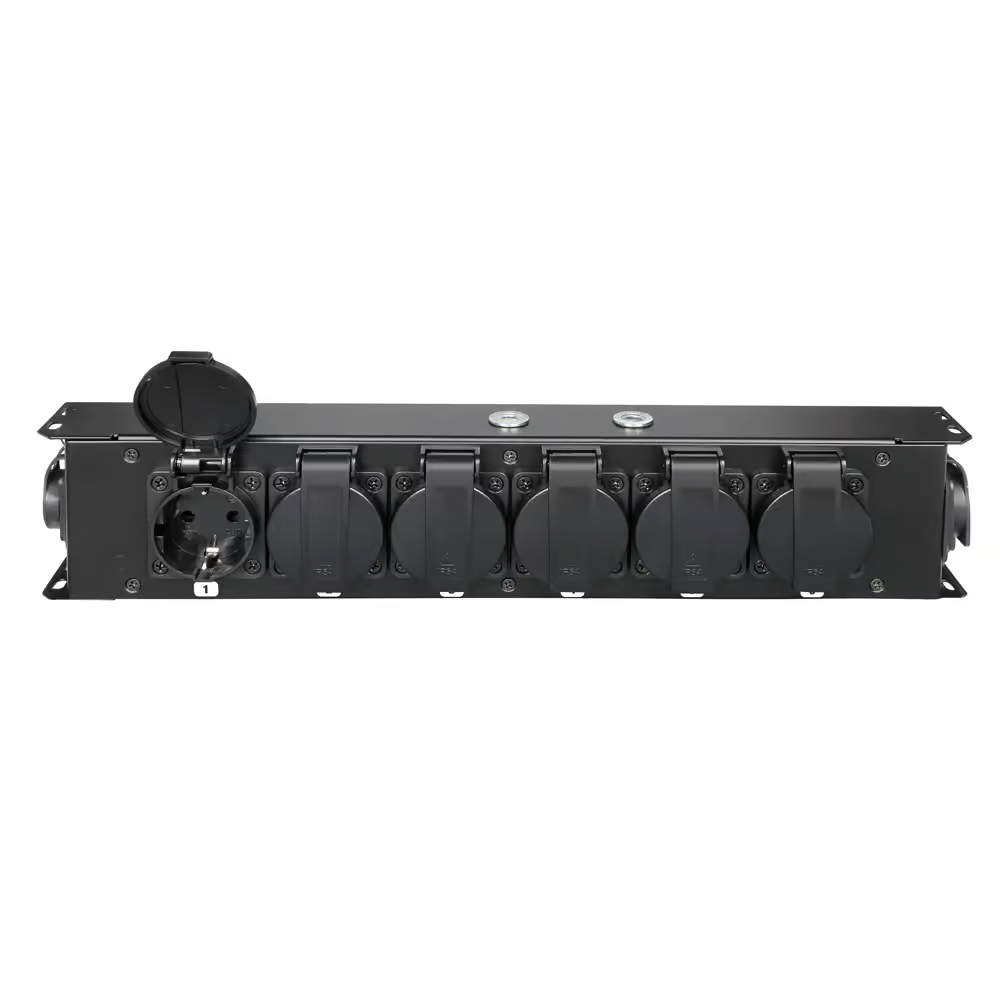

Its robust metal housing features six protective contact socket outlets with hinged lids, a black/yellow power I/O for power supply and transmission, and two M10 threaded inserts for mounting and fixed installation.
