CABLESMicrophone CablesXLR cables4 STAR MMF KRYSTAL

4 STAR MMF KRYSTAL

Name: 4 STAR MMF KRYSTAL
Brand: Adam Hall
Availability: OutOfStock

Product benefits

✓ Microphone cable from our 4 STAR SERIES - designed for professional users

✓ Equipped with original Yongsheng® connectors for reliable connection

✓ Extremely high purity OCC copper conductors with linear crystal structure for optimal signal transmission

✓ 0.22 mm² (AWG24) conductor area, developed by the Adam Hall Cables® team in Germany

✓ Special sheath in soft PVC for maximum flexibility in professional use

Specifications

General
- Cable length: 0.5 m - 20 m
- Cable sheath: PVC (Polyvinyl chloride)
- Cable diameter: 6.5 mm
- Color: Black
Connectors

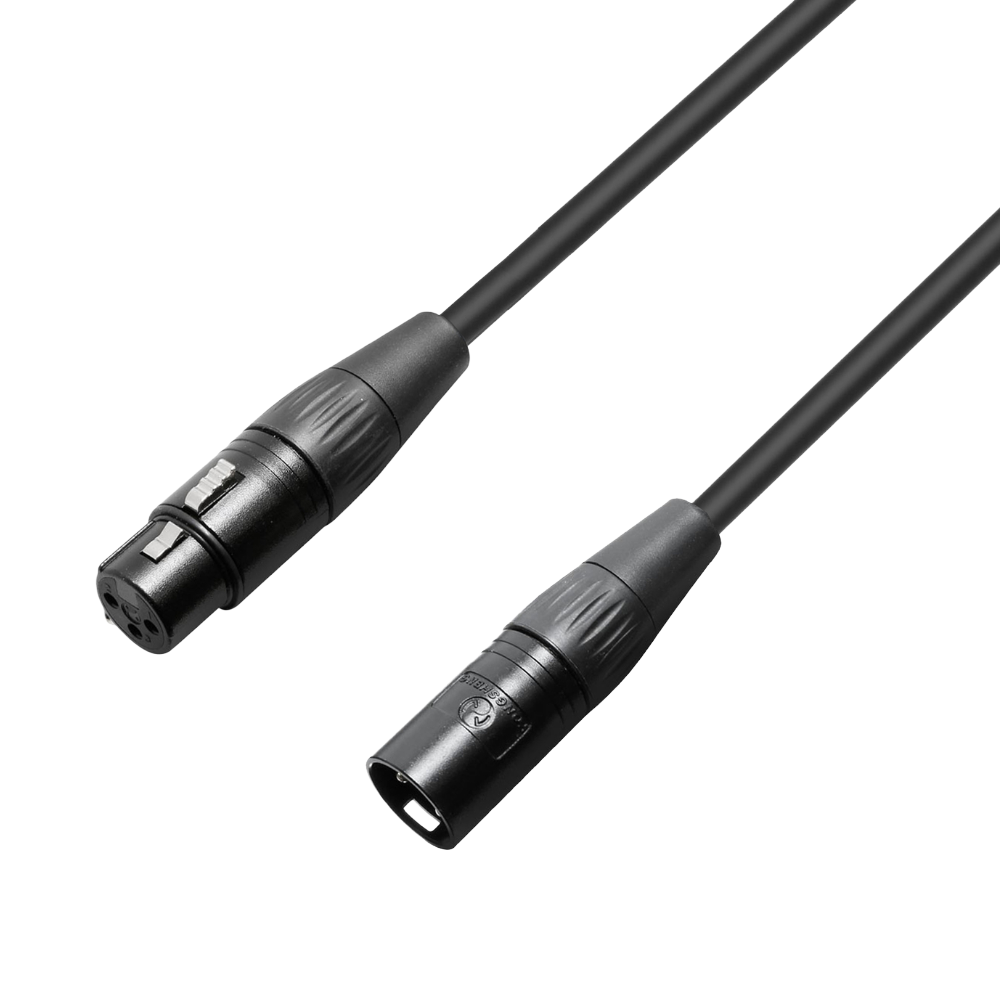

- Connector 1: XLR 3-pin female (Yongsheng 136L-BG) | Gold plated
- Connector 2: XLR 3-pin male (Yongsheng 137L-BG) | Gold plated
Conductors & Shielding
- Material: OCC (Ohno Continuous Casting)
- Conductor area: 2 x 0,22 mm²
- Capacitance/m: 110 pF
- Wave impedance: 64 Ohm
- Shielding: Braided copper screen (Shielding > 98%)
Environment/Ambient
- Ambient temperature: -20 - 70 °C

Description of the product

4 STAR MMF CRYSTAL

Professional quality cable with extreme purity

The KRYSTAL cable impresses with the extremely high purity of its copper structure. Compared to standard OFC copper cables, this physical property is achieved by "Continuous Casting", resulting in a very pure and homogeneous copper. This method has long been very popular in the Hi-Fi sector for its superior signal transmission.

Adam Hall Krystal OCC microphone cable has 2 x 0.22 mm² inner conductors and a braided shielding (coverage > 98%). With an outer diameter of 6.5 mm, it is impressively robust while offering maximum flexibility for demanding users.
