Display
IPS LCD Screen
Network
TCP/IP & USB
Weight
4,0 kg (Ultra-light)
Power & Output
-
Output Power (8Ω/4Ω): 4x300W / 4x500W
-
Bridge Mode (8Ω): 2 x 1000W
-
High-Z Support: 70V / 100V (1000W)
-
Construction: Class-D (Digital)
-
Sampling: 48K / 24bit
DSP & Monitoring
-
PEQ (In/Out): 15-band / 10-band
-
Functions: FIR, Matrix, Delay, Comp.
-
Inputs: 4x XLR (Bal) / 4x RCA
-
Monitoring: Temp, Volt, Amp, Power
-
Format: 19" / 1 HU (Slim design)

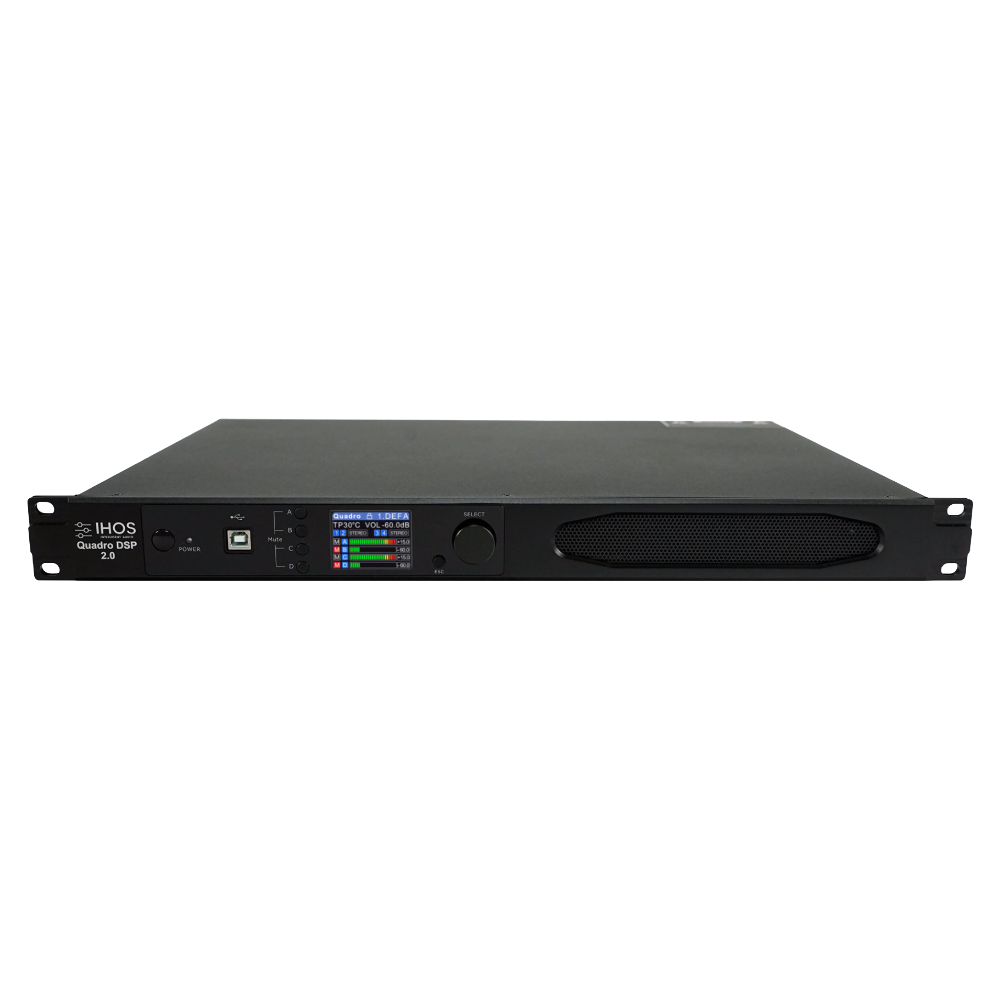

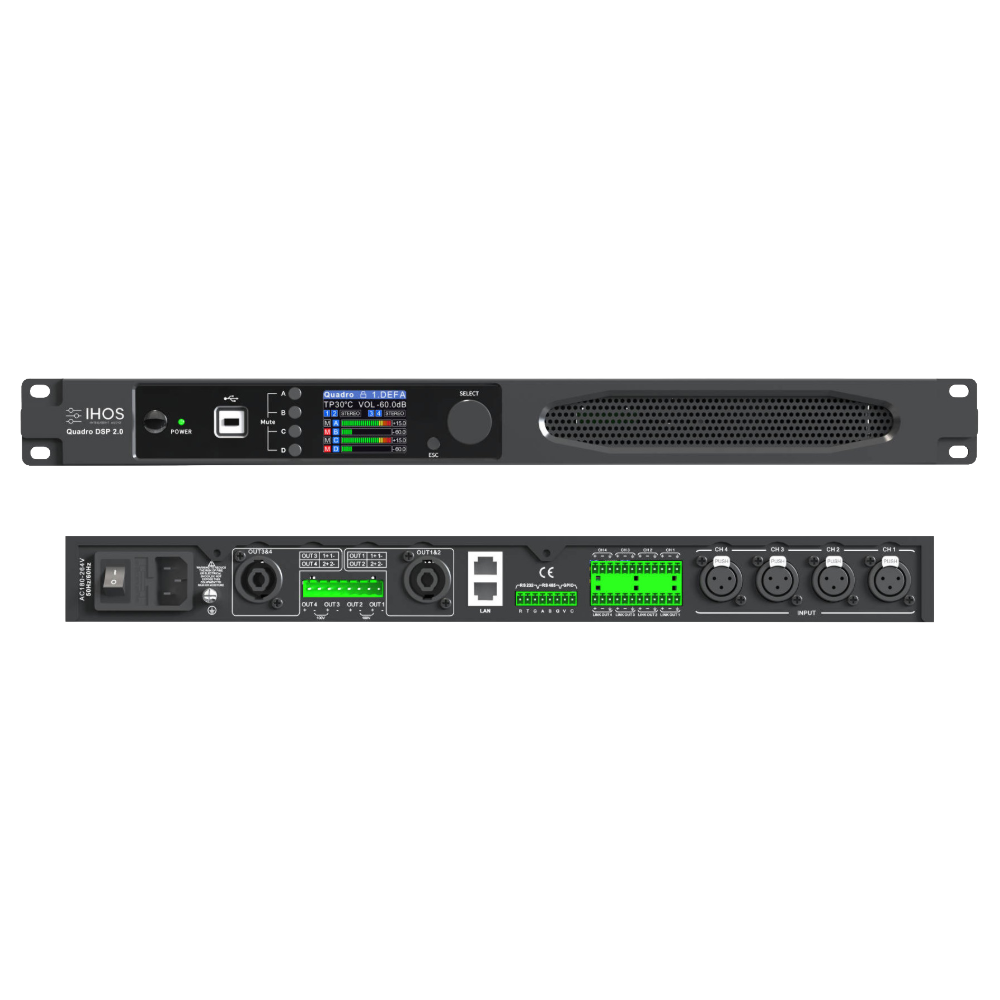

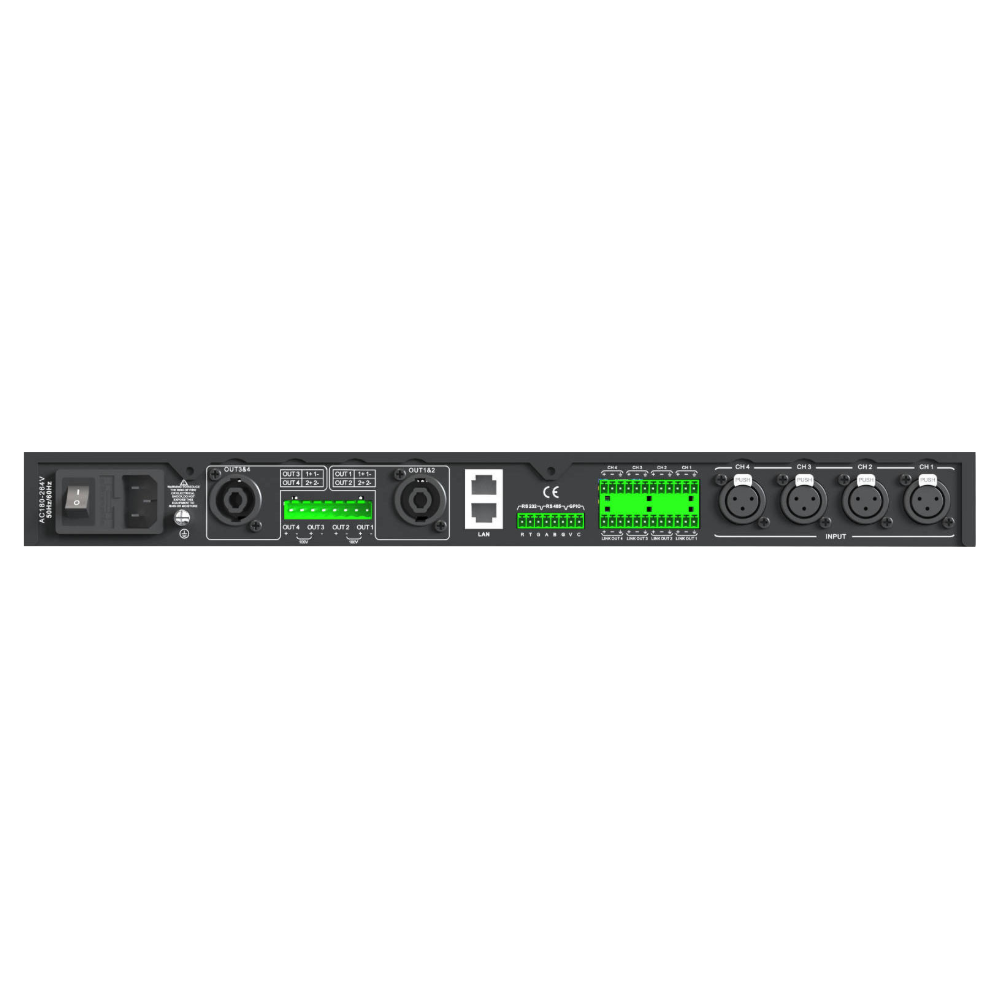

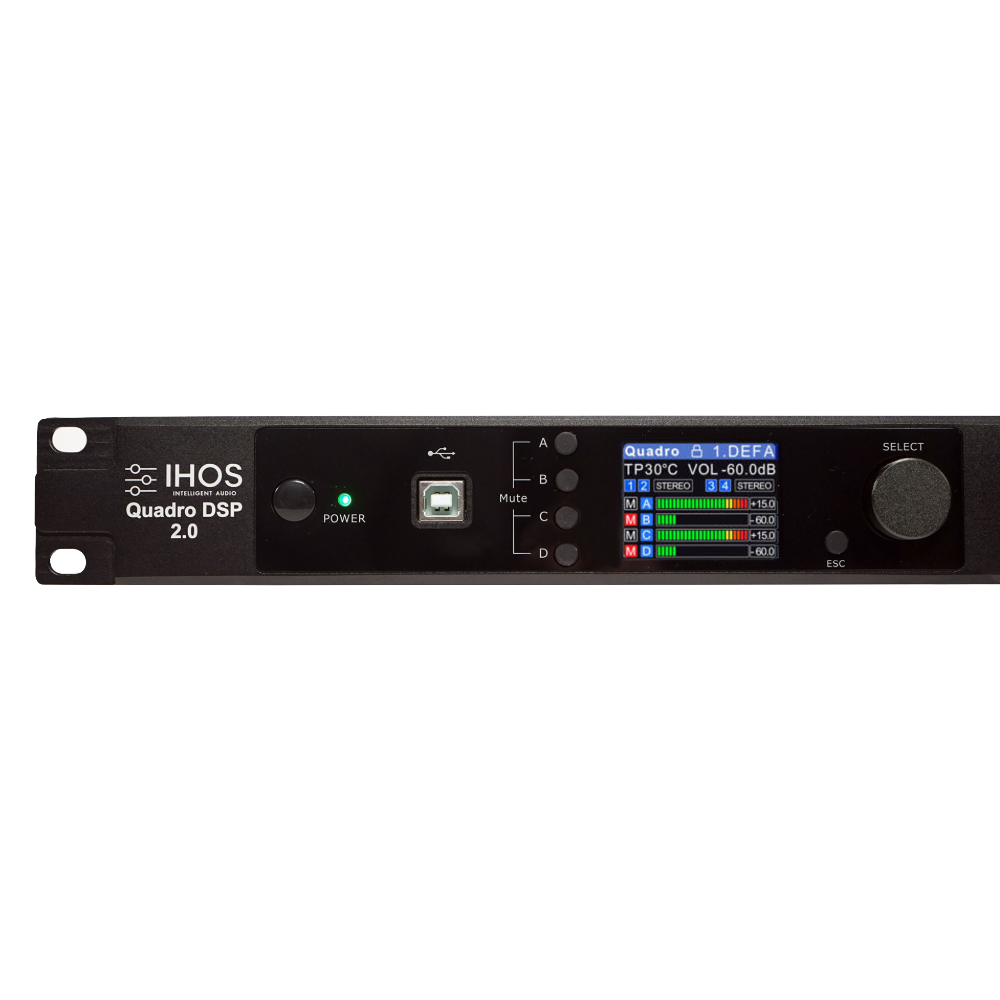

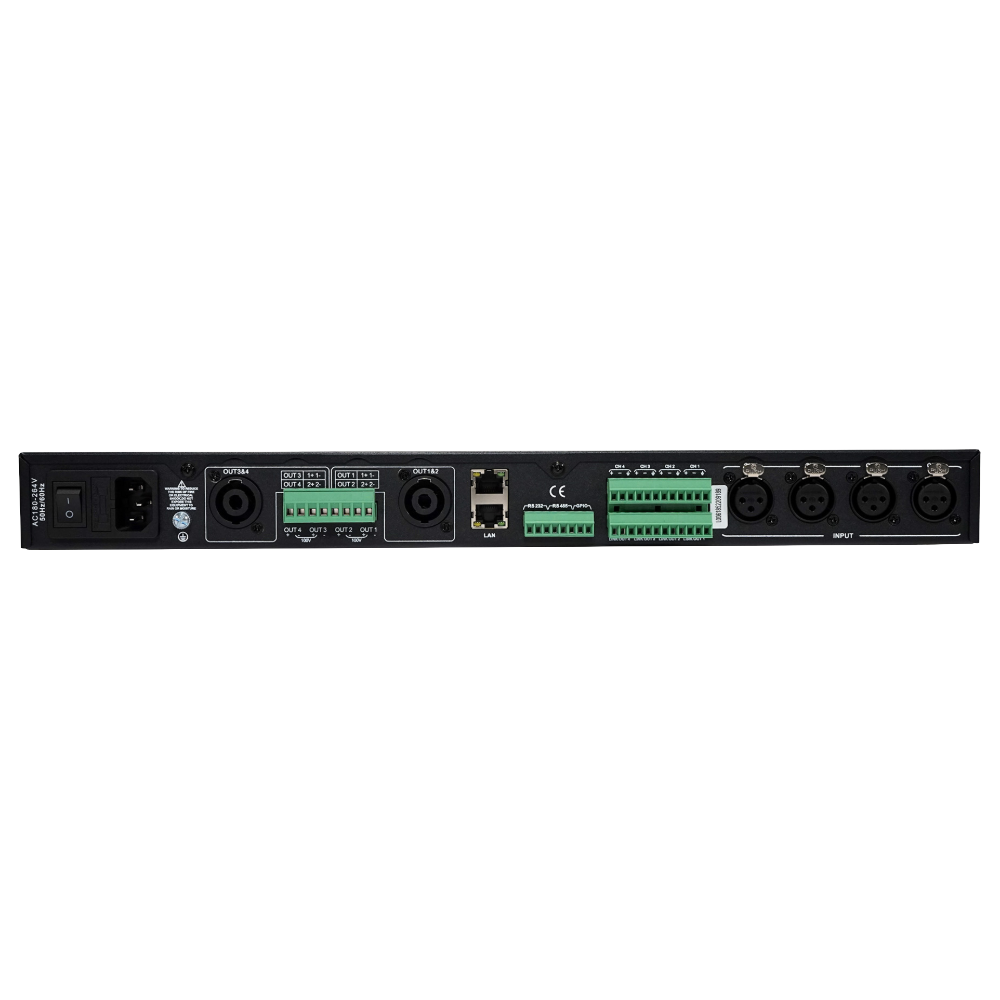

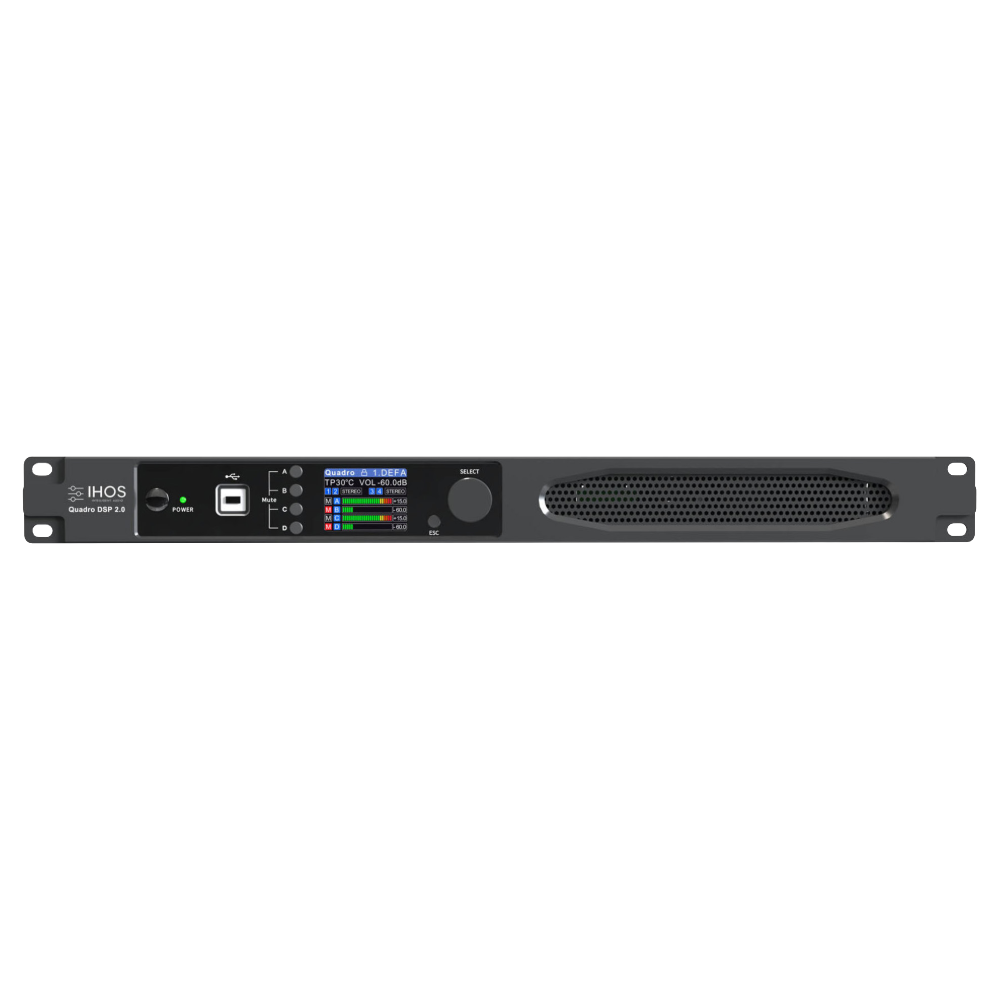

Compact DSP platform: Quadro DSP 2.0 delivers 4x500W in an extremely slim 1U format. With built-in real-time DSP, FIR phase correction and support for both low and high impedance systems (100V), it is an ideal solution for conference rooms, schools and restaurants. Full control via MConsole software.
