Display
4.3" IPS Touch
FIR Filter
4 x 2048 Taps
Network
Ethernet / TCP-IP
Power & Matrix
-
Output power (8Ω/4Ω): 4x1500W / 4x2000W
-
Bridge 8Ω: 2 x 3200W
-
DSP Functions: Matrix, PEQ, Limiter, Delay
-
Input EQ: 31-band EQ
-
Presets: 80 packages
Technical Specs
-
Operating Modes: 100V, 70V, 8Ω, 4Ω
-

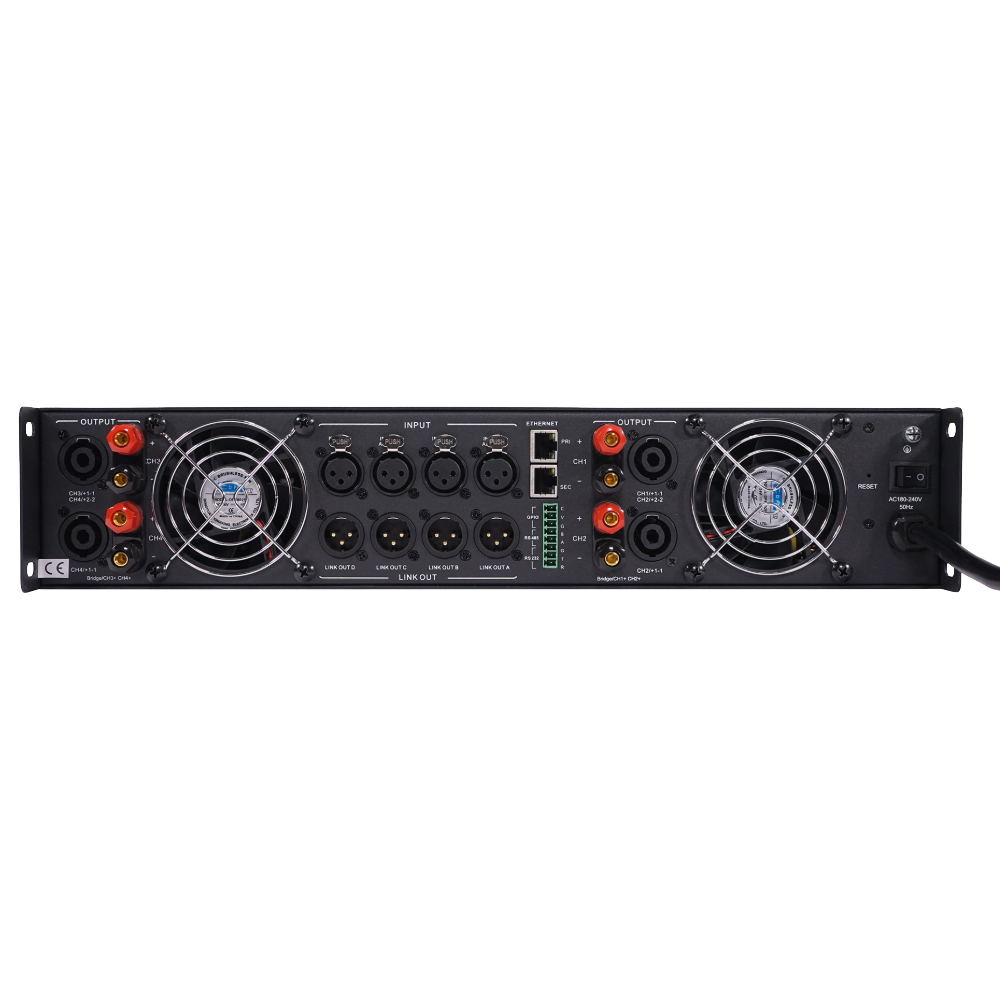

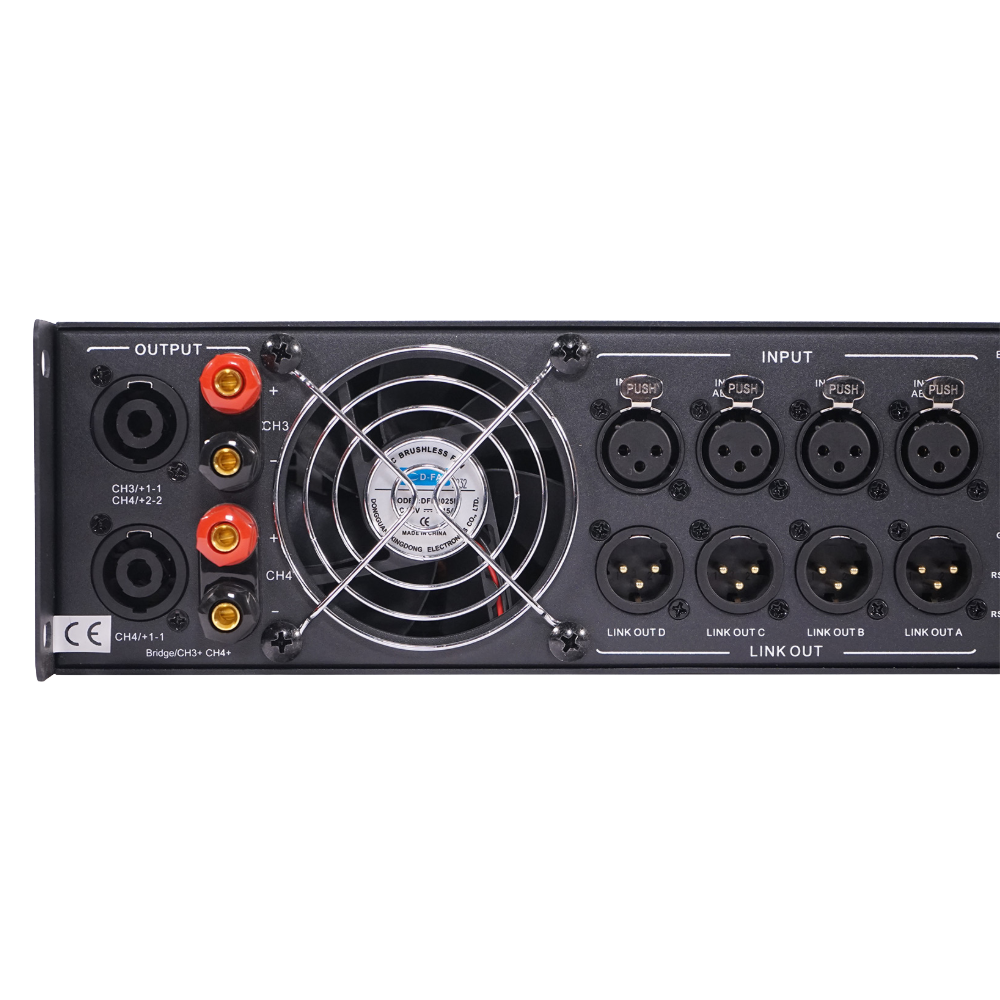

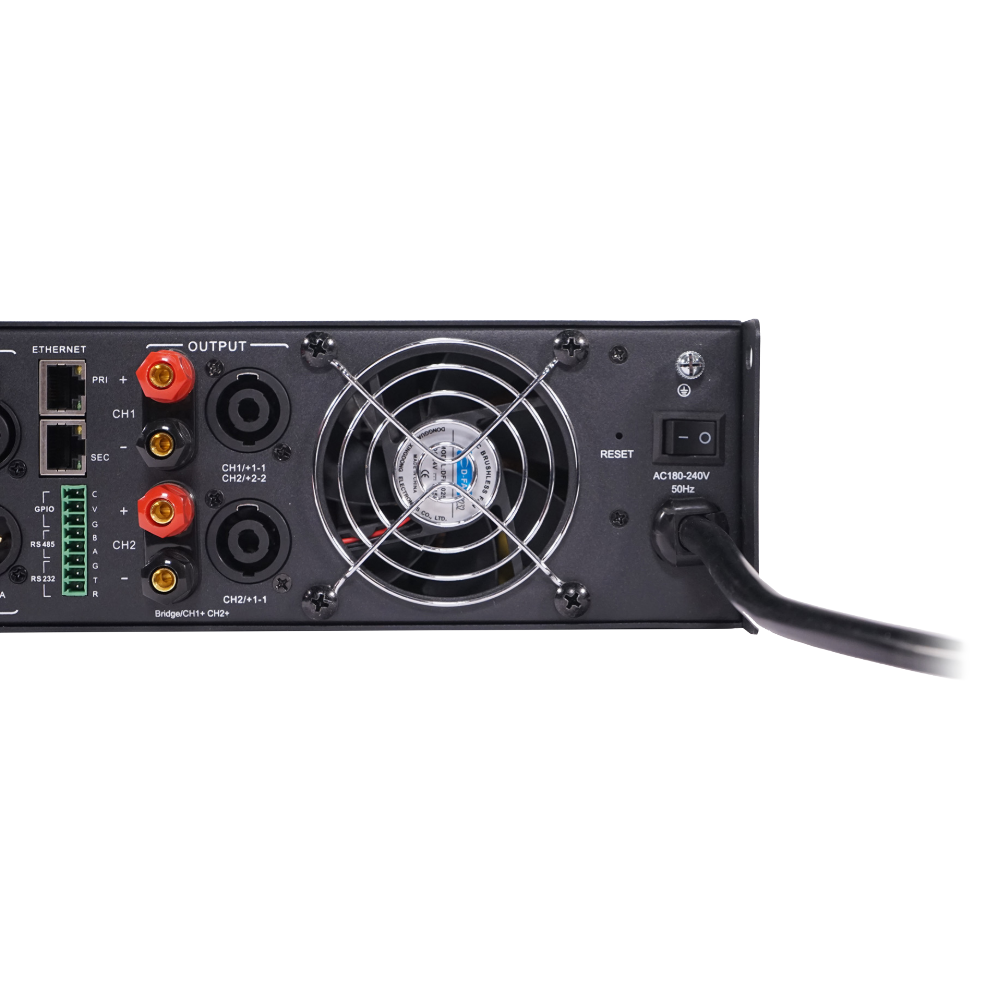

Inputs: 4x XLR Balanced / AES
-
Outputs: 4x Speakon / 4x XLR
-
Sampling: 48K / 24bit
-
Format: 19" / 2 HU (12.35 kg)

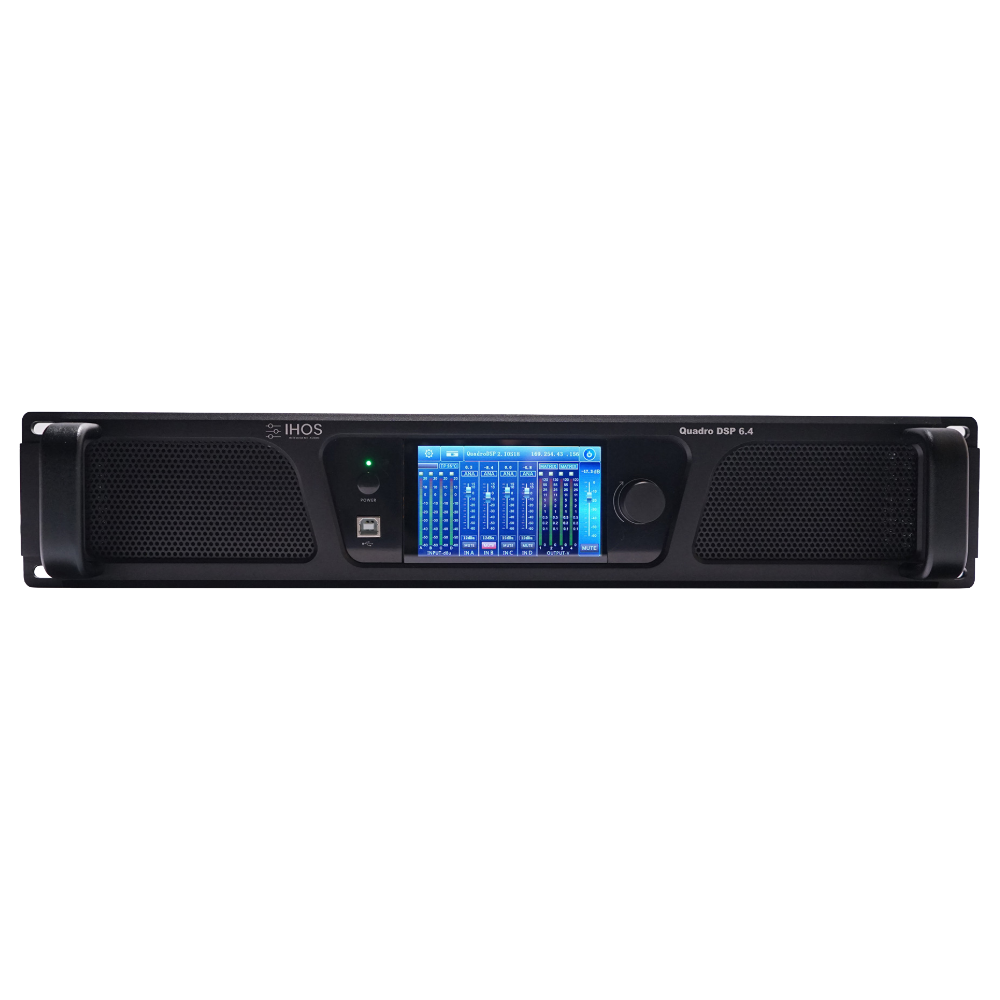

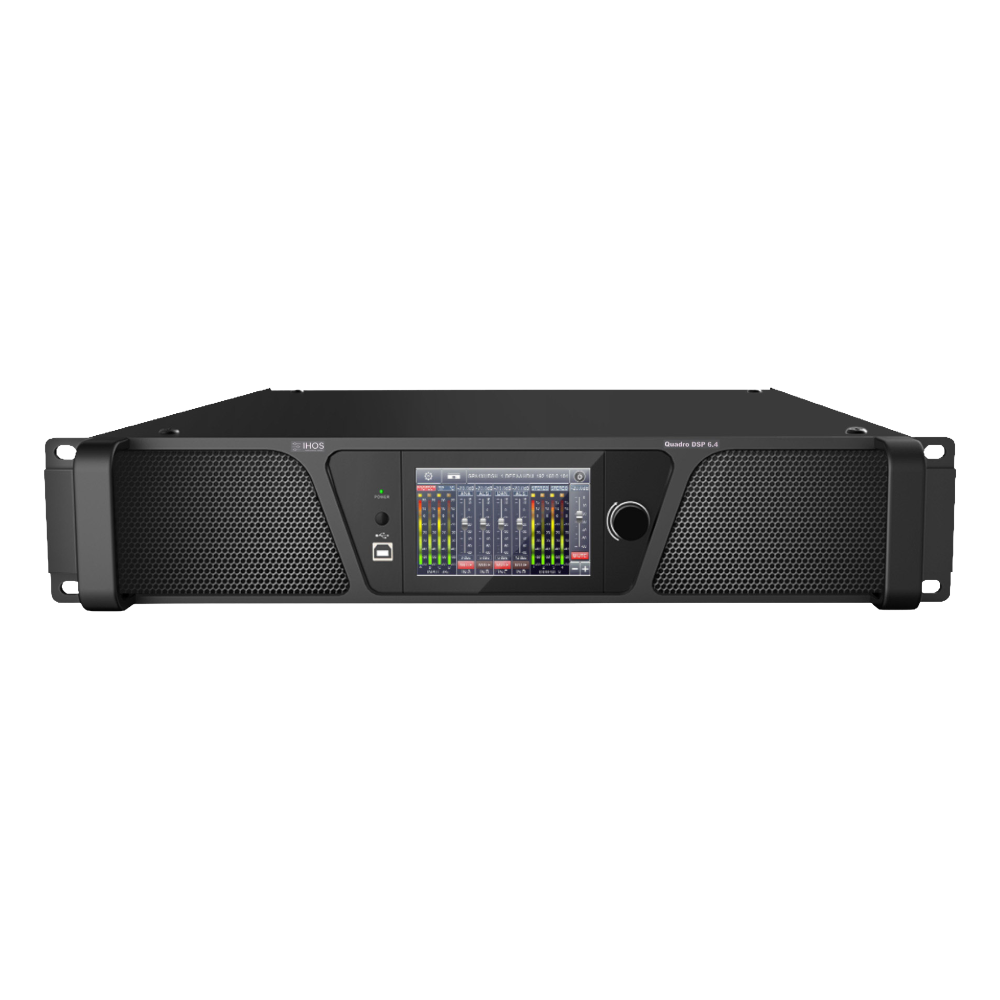

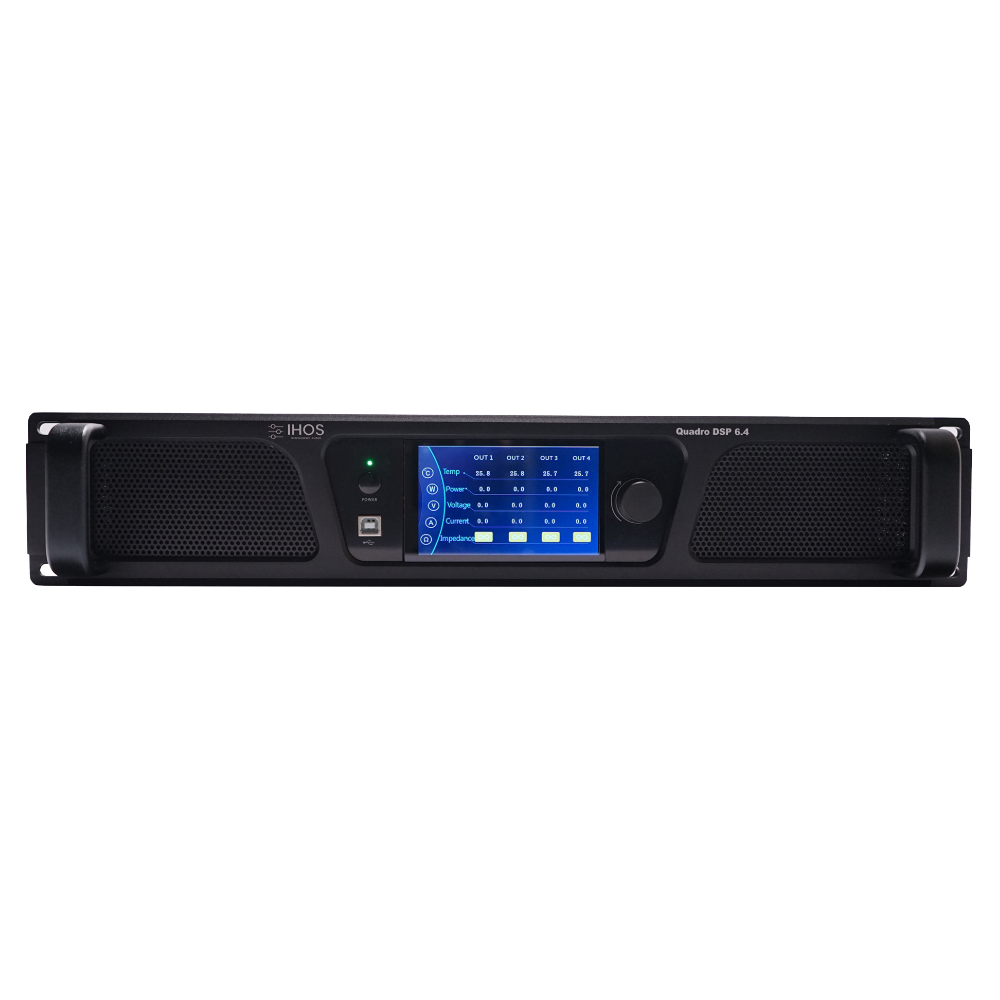

Versatile Network Amplifier: Quadro 6.4 is a multifunctional digital platform with built-in 4x4 matrix and advanced FIR processing. It monitors temperature, voltage and current in real time. Supports both high and low impedance systems, making it ideal for everything from stadiums to shopping centers.
