CLIMATE HORN

• Power & Impedance
  • Rated power (100/70V): 50 W
  • Rated power (8 Ω): 100 W
  • Max power: 75 W (100V) / 150 W (8 Ω)
  • Impedance steps: 200Ω, 400Ω, 800Ω, 1.1kΩ, 2.2kΩ, 2.8kΩ
• Audio performance
  • Sensitivity (SPL 1W/1m): 99 dB
  • Max SPL (Rated speed/1m): 116 dB (100V) / 119 dB (8 Ω)
  • Frequency response (-10dB): 90 Hz - 20 kHz
  • Dispersion (1kHz / 4kHz): 65° / 30°
  • Driver: 6.5" woofer + 1" tweeter
• Physical Dimensions & Mounting
  • Dimensions: 362 (W) x 252 (H) x 310 (D) mm
  • Weight: 3.9 kg
  • Mounting: Adjustable U-bracket (Mounting bracket)
  • Color: Grey
• Material & Environment
  • Casing: High Impact ABS (Impact resistant plastic)
  • Grill: Steel
  • Weather protection: IP66 (According to IEC529)
  • Temperature range: -30°C to +60°C
  • Humidity: <95% of the ambient air

Description of the product

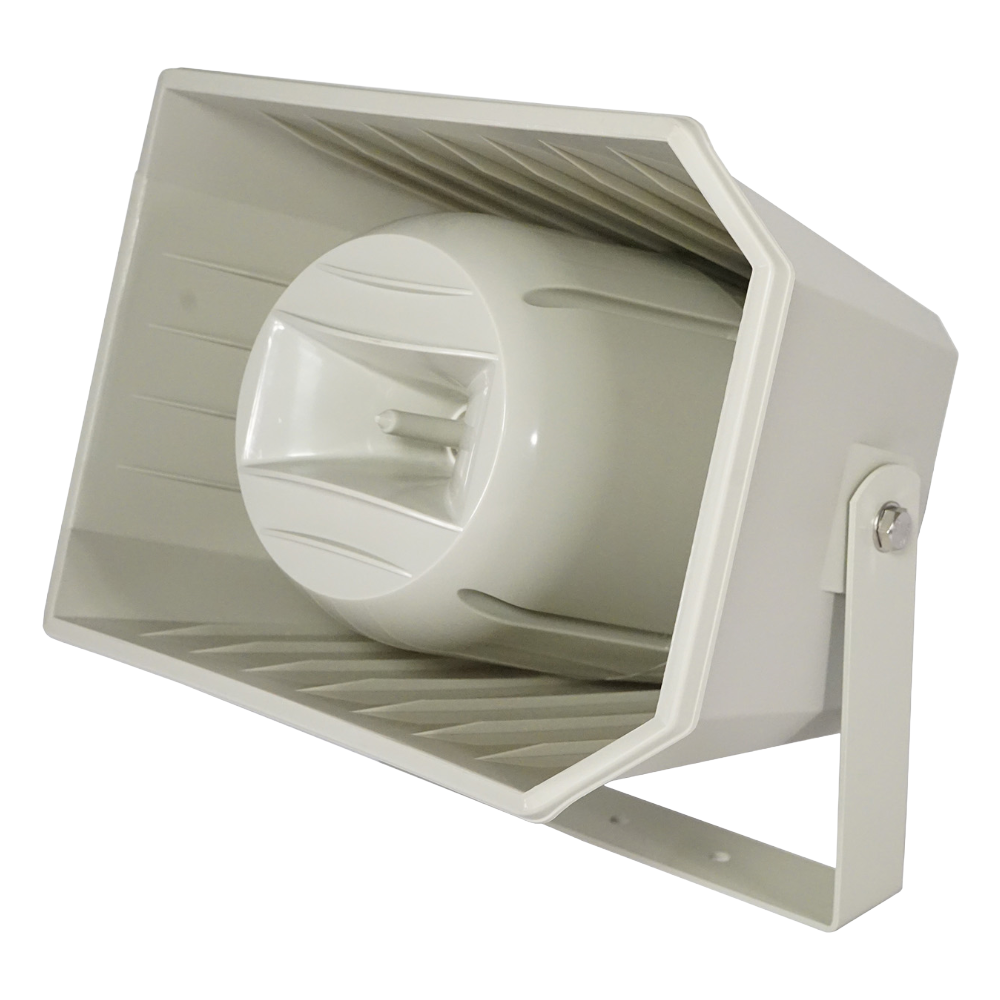

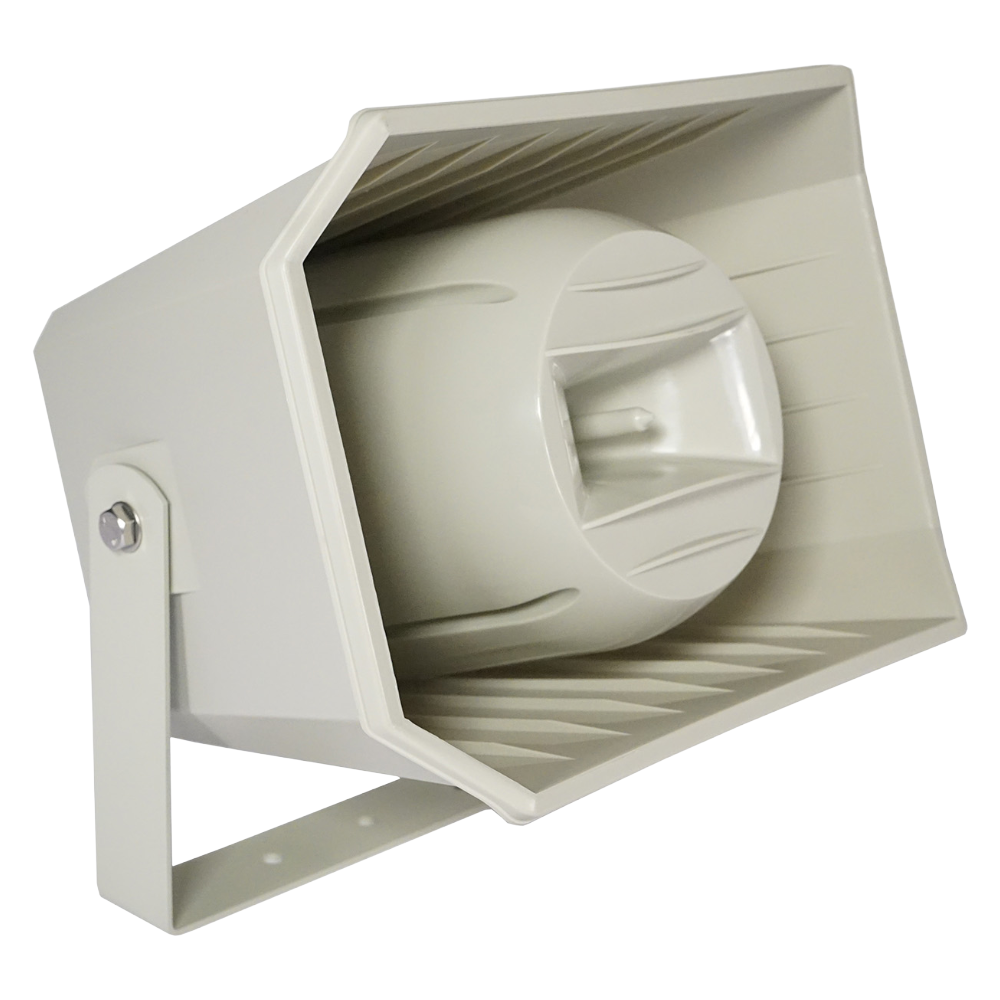

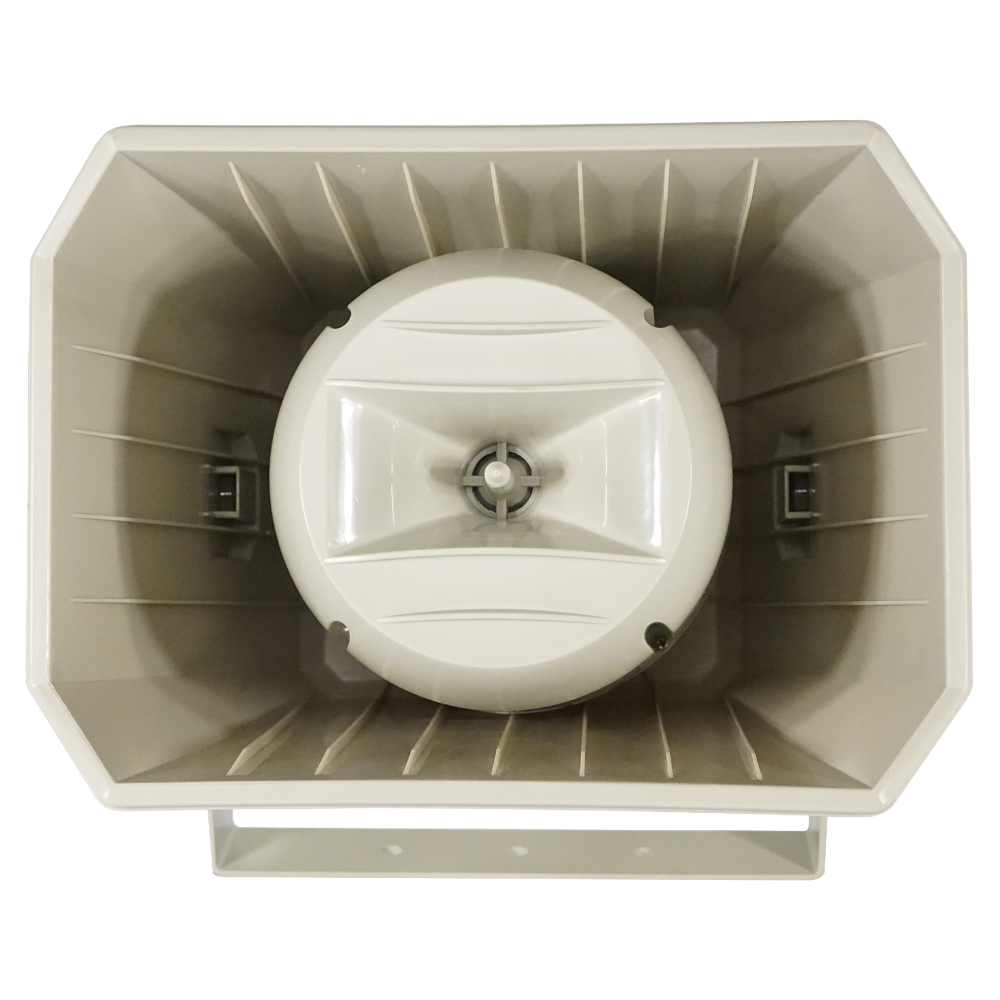

CLIMATE HORN - Extremely weatherproof 2-way horn speaker

CLIMATE HORN breaks new ground by offering the acoustic power of a horn speaker combined with the hi-fi characteristics of a 2-way system. Thanks to the combination of a 6.5" woofer and a 1" tweeter, it delivers an impressive frequency response up to 20 kHz, which is unusual for horn designs.

The speaker is built to withstand the toughest Nordic climates. With an IP66 rating, it is completely dustproof and protected against powerful water jets, while the impact-resistant ABS material can withstand temperatures down to -30°C. This makes it ideal for fixed installation in school playgrounds, sports fields or harbor environments.

Flexible power selection (100V / 8 Ω):

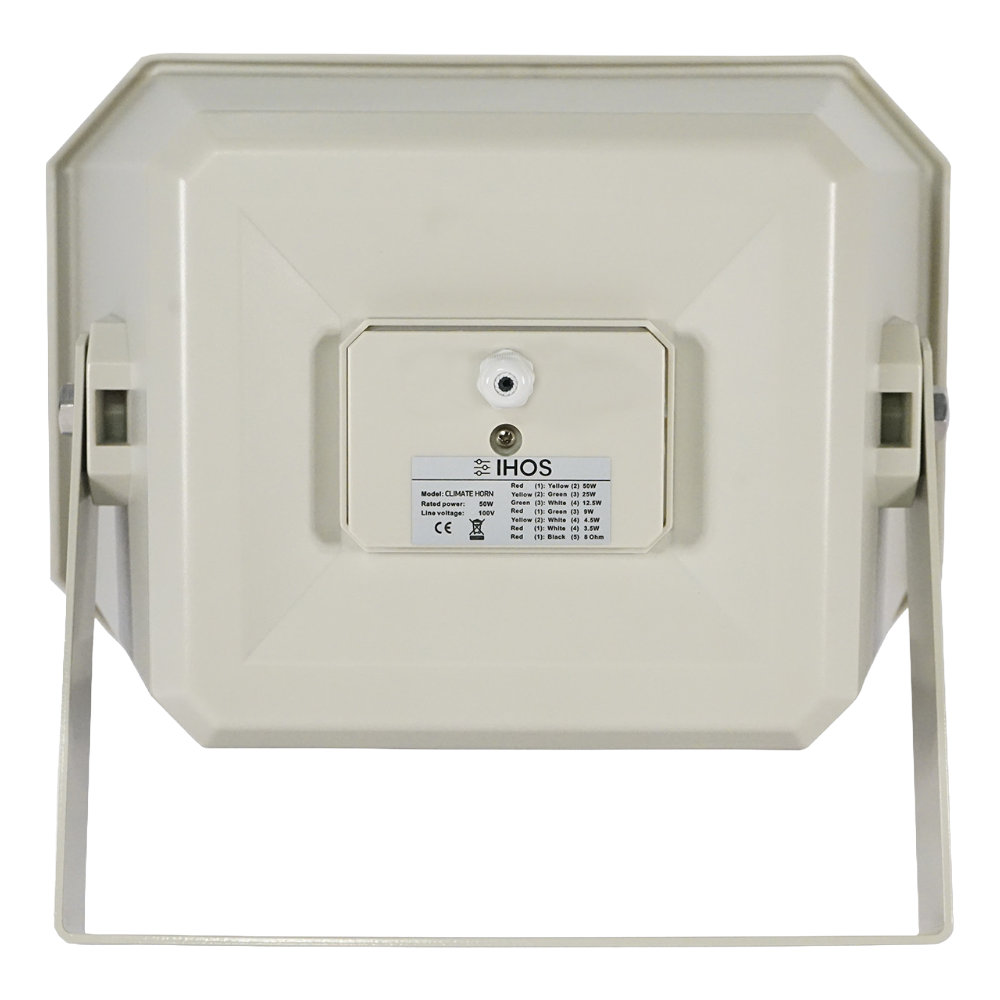

The connection is made via different color combinations on the wiring for precise adaptation to the system:

• Red + Yellow: 50 W (100V)
• Yellow + Green: 25 W (100V)
• Green + White: 12.5 W (100V)
• Red + Black: 8 Ω (Low impedance operation)
• (More combinations available for lower wattage outlets and 70V operation).
