IPA-CS

Professional Ceiling Speaker

Quick-Mounting System - White Steel Construction - Twin Cone Design

100V / 70V Line

Rated Input 6W (9W Max)

Sensitivity 90 dB (1W/1m)

Installation Spring-loaded Clamps

Technical Specifications

Transformer Taps (100V): 6W, 3W
Transformer Taps (70V): 3W, 1.5W
Frequency Response: 100 Hz - 18 kHz
Max SPL (Rated): 96 dB
Dispersion (1kHz): 160° Wide

Design & Hardware

Speaker Unit: 6.5" Twin Cone Speaker
Material: Steel Panel & Grille (White)

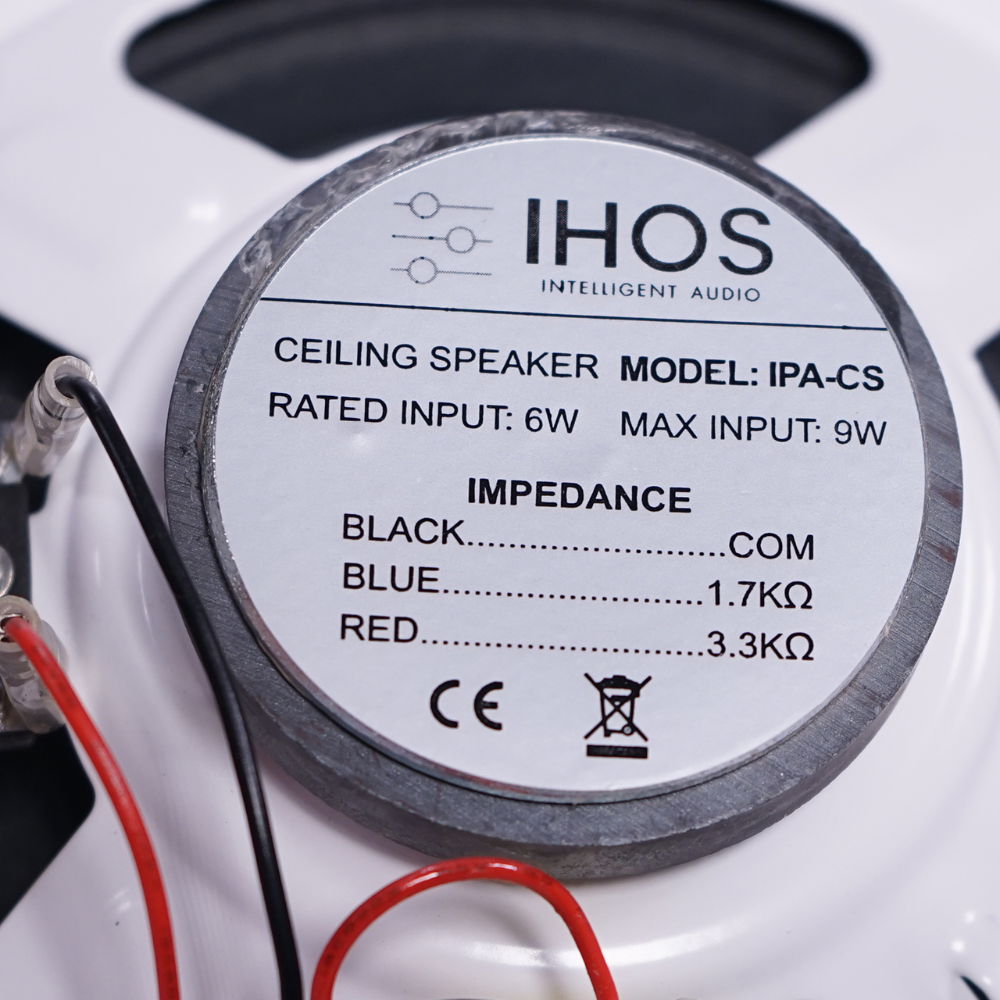

Wiring: Blue (1.7kΩ), Red (3.3kΩ), Black (COM)

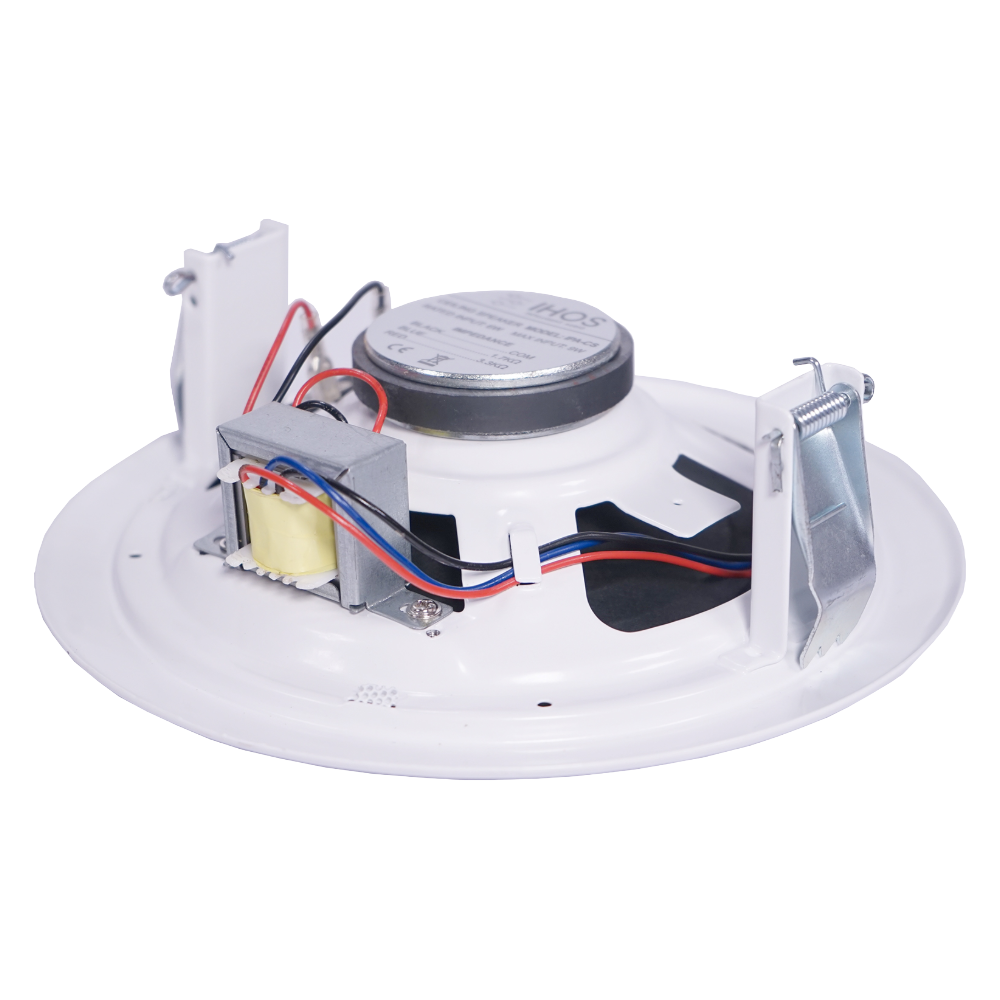

Efficient Installation: Equipped with two integrated spring-loaded locking clips for quick tool-free installation. Fits ceiling thickness up to 25 mm.

Cut-out Hole: Ø 170 mm

Dimensions: Ø 200 x 65H mm

Unit Weight: 0.7 kg

Bulk Packing: 20 pcs per Carton

Ideal for larger projects in shops, offices and public environments.

Technical Specifications

Power & Impedance
- Nominal power (Rated): 6 W
- Maximum power: 9 W
- Impedance: 1.7 kΩ / 3.3 kΩ
- Power modes (100V): 6 W / 3 W
- Power modes (70V): 3 W / 1.5 W
Audio performance
- Sensitivity (SPL 1W/1m): 90 dB
- Max SPL (Rated/1m): 96 dB
- Frequency Response (-10dB): 100 Hz - 18 kHz
- Dispersion (1kHz / 4kHz): 160° / 55°
- Driver: 6.5" Twin Cone
Physical Dimensions & Mounting
- Outer dimensions: Ø 200 x 65 (H) mm
- Hole pattern: Ø 170 mm
- Installation depth: 75 mm
- Max roof thickness: 25 mm

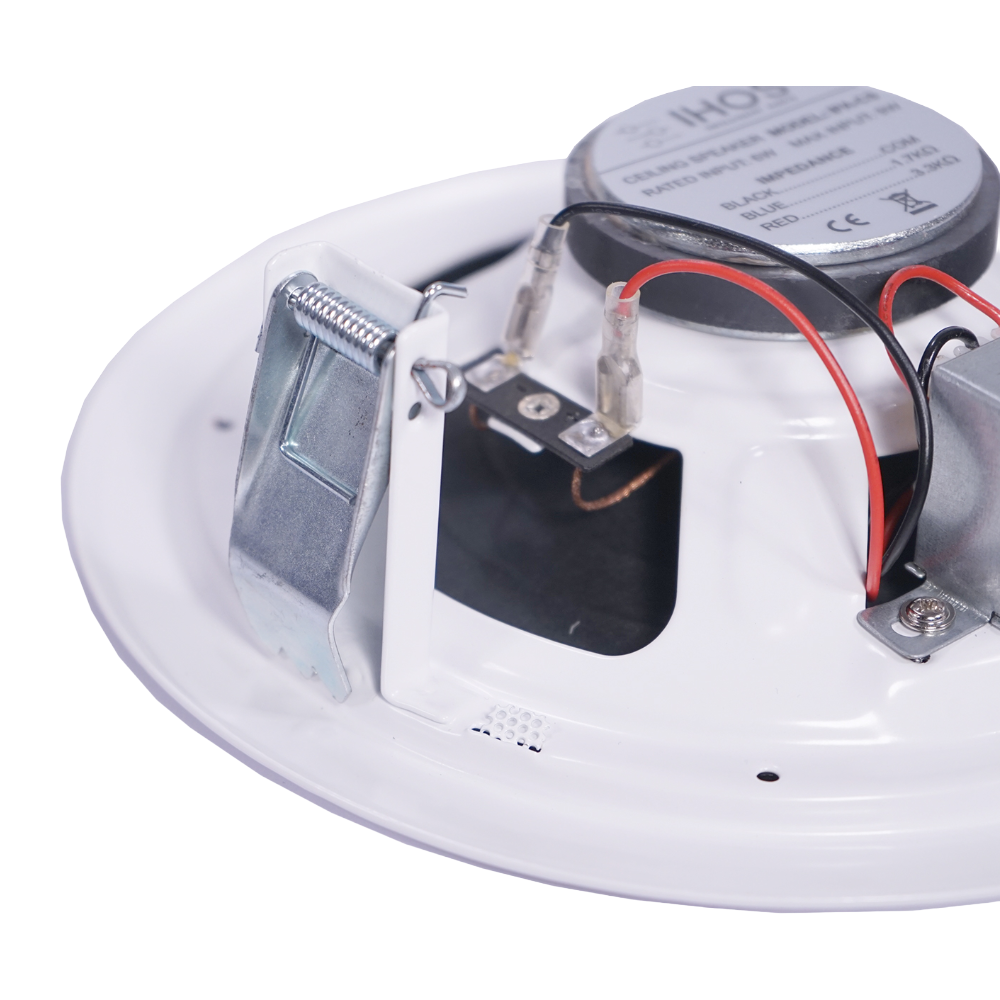

- Mounting system: Two integrated spring-loaded quick fasteners
- Weight: 0,7 kg
Materials & Environment
- Material (Panel & Grill): Steel
- Color: White
- Operating temperature: -20°C to +55°C
- Air humidity: < 95%

Description of the speaker

Discreet 6.5" ceiling speaker for professional installations

This ceiling speaker is a cost-effective and high-quality solution for background sound and announcement systems in shops, offices and schools. Thanks to its 6.5" Twin Cone element, it delivers a clear and crisp sound over a wide frequency range, making it excellent for both music and speech.

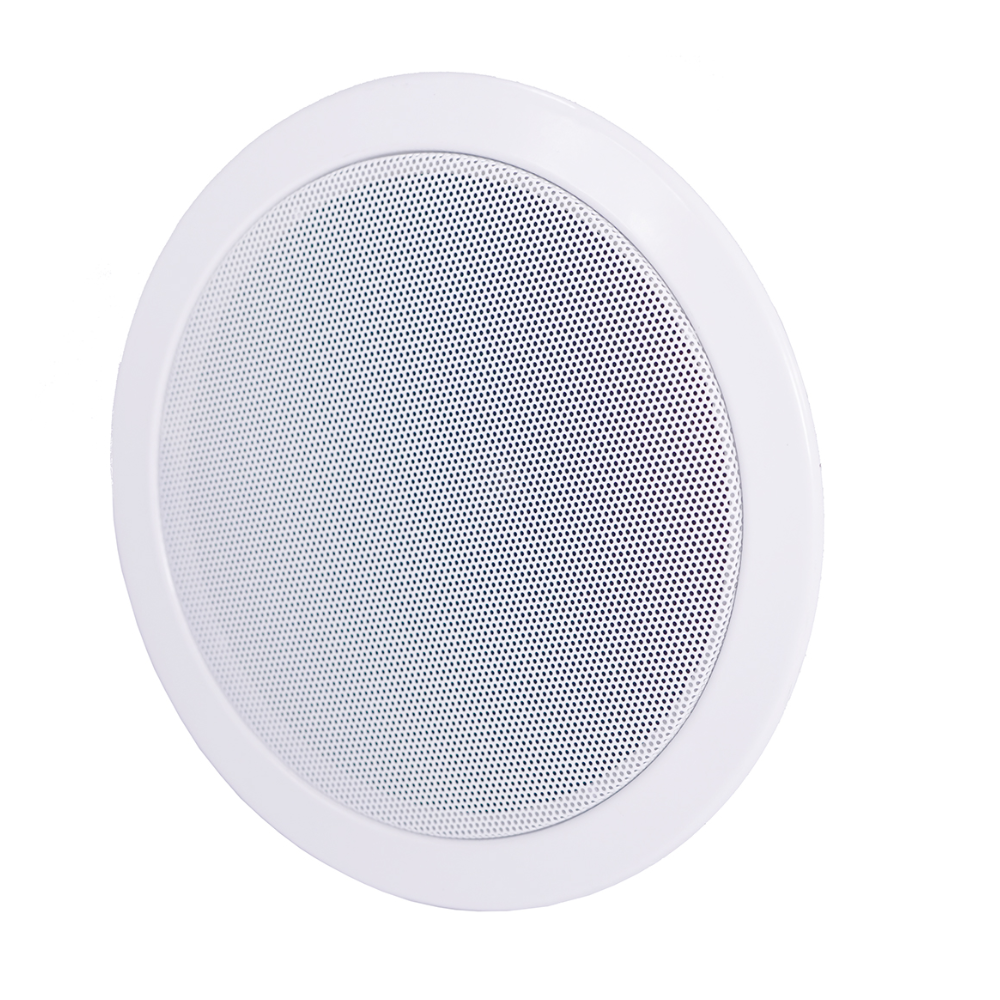

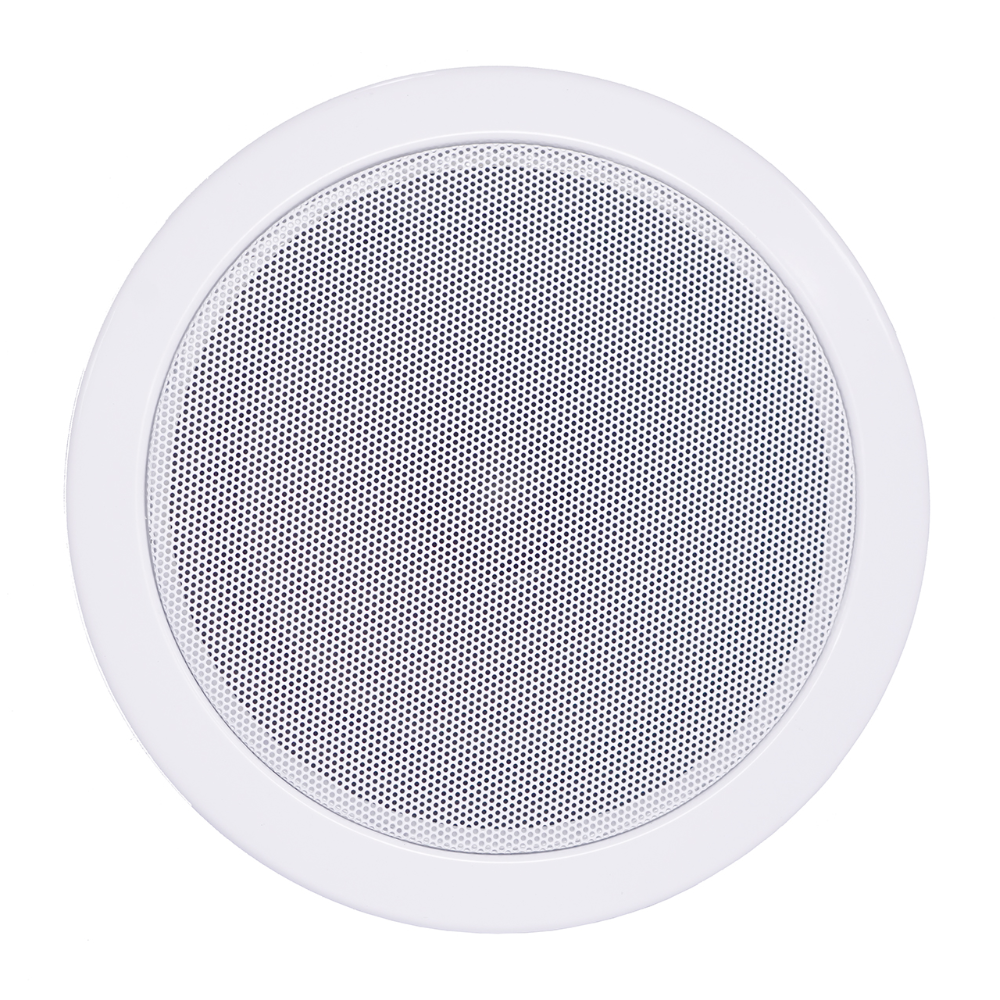

Installation is extremely easy thanks to the two integrated quick-release brackets that allow the speaker to be securely fixed to the ceiling in just a few seconds. With an all-white steel construction (both frame and grill), it blends discreetly into most interiors.

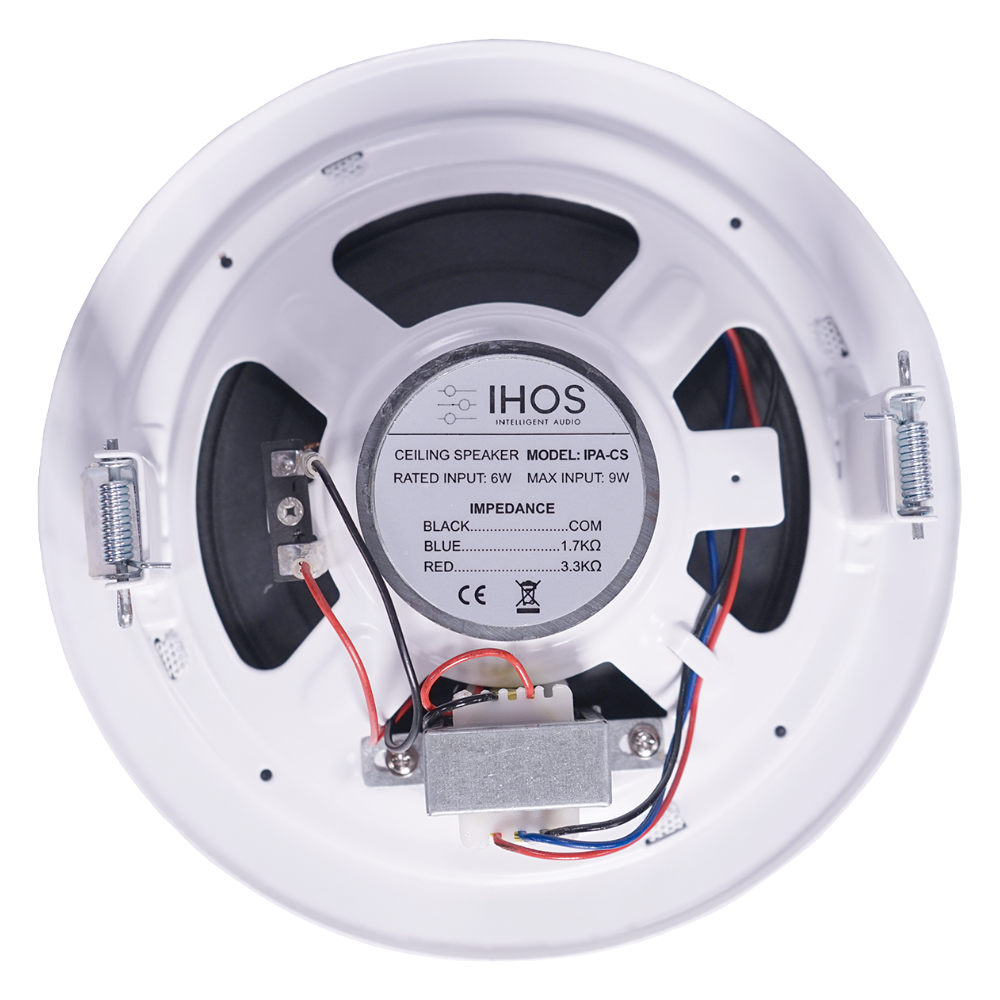

Wiring and power selection:
The speaker comes with a three-wire cable for easy power selection:

Blue: 1.7 kΩ (6W at 100V)
Red: 3.3 kΩ (3W at 100V)
Black: COM (Common zero)
