Sennheiser

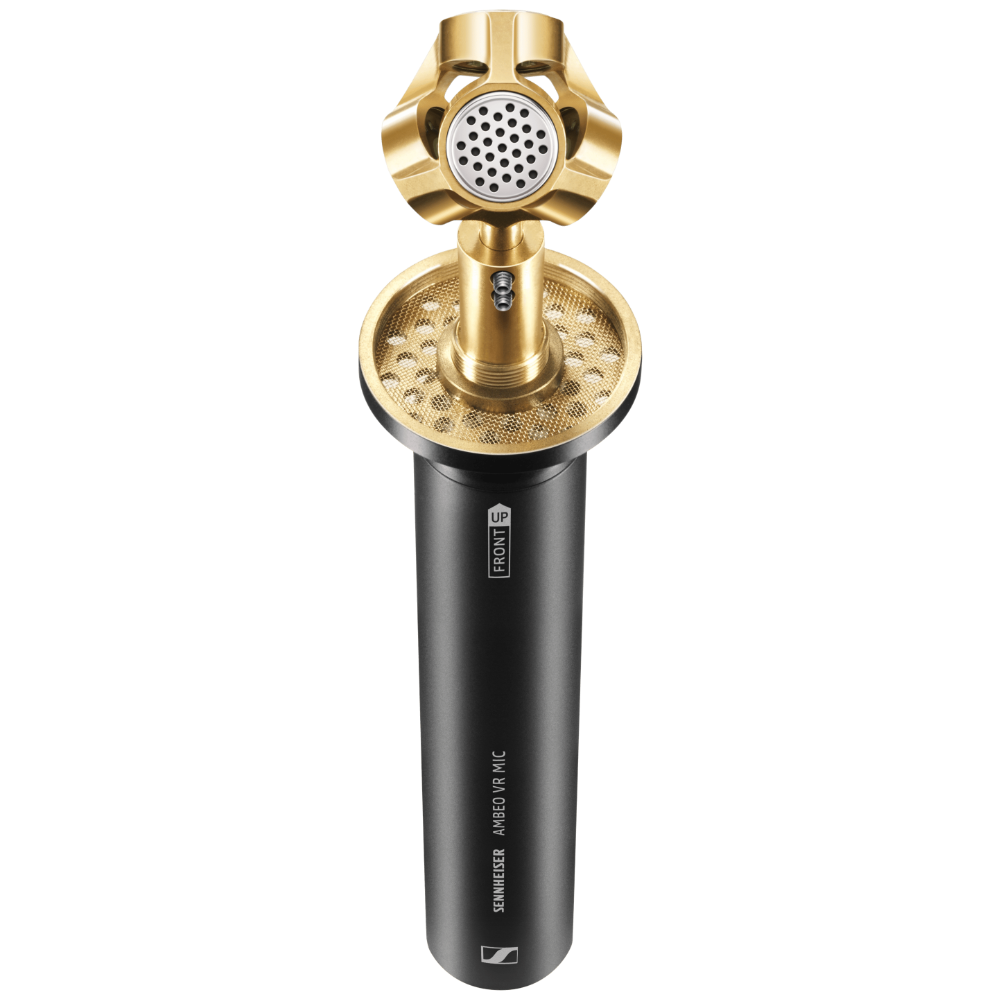

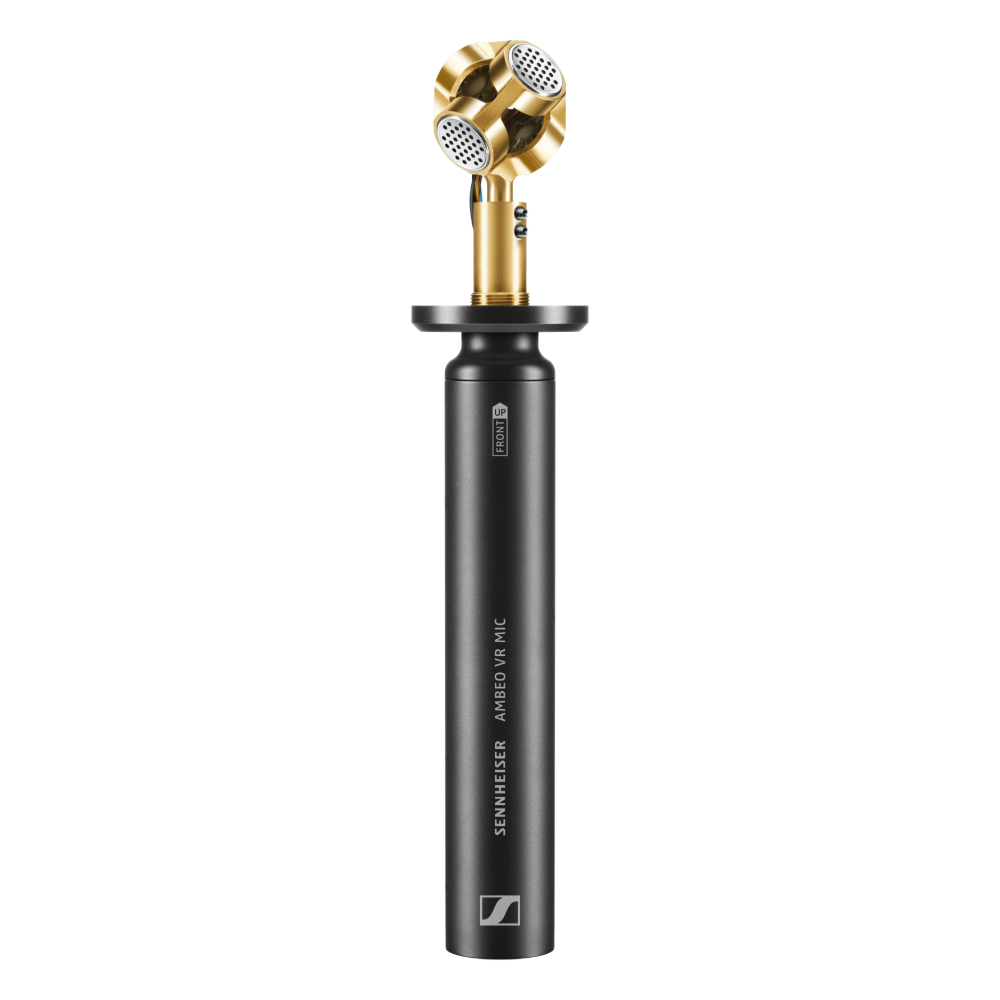

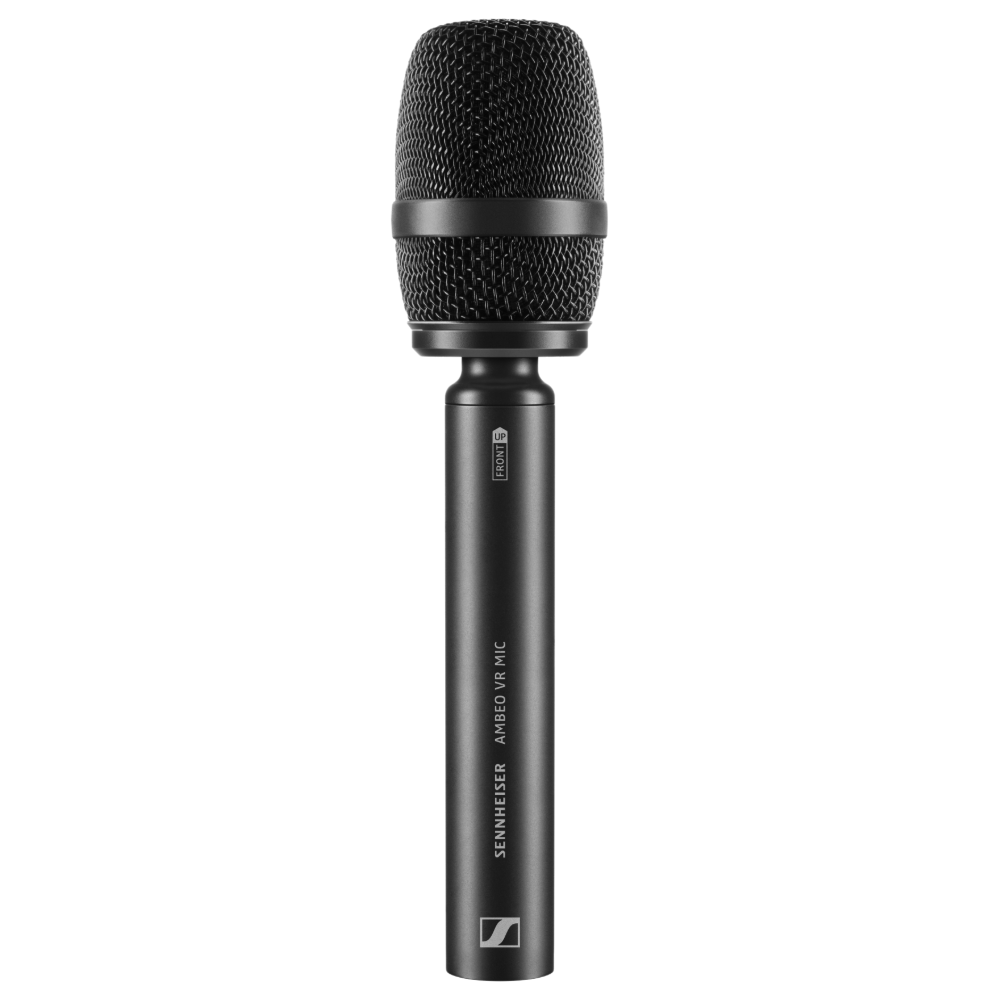

AMBEO VR Mic
- Telefonnummer: 040-546511
- E-Mail: contact@stagebrands.com
- TillverkareSennheiser
- VarumärkeSennheiser
Beskrivning
Art.nr: 507195
Technical Specifications
- Dimensions:
215 x 49/25 mm (L x D) - Frequency response:
20 Hz to 20 kHz - Max. sound pressure level:
130 dB(A) for 1 kHz - Transducer principle:
Pre-polarized condenser microphone - Weight:
1.060 g - Microphone connector:
DIN12M (includes adapter cable to 4× XLR3M)
Polarity: Pin 1 (GND), Pin 2 (+), Pin 3 (-) - Pick-up pattern:
4× cardioid, A-format arrangement:
1: FLU (front-left-up)
2: FRD (front-right-down)
3: BLD (back-left-down)
4: BRU (back-right-up) - Nominal impedance:
Approx. 200 Ω - Min. terminating impedance:
1000 Ω - Storage temperature:
-20 °C to 70 °C (-4 °F to 158 °F) - Operating temperature:
-10 °C to 55 °C (14 °F to 131 °F) - Equivalent noise level:
18 dB-A (IEC 61672-1) / 27 dB CCIR (CCIR 468-3) - Power supply:
4× P48 phantom power (48 ± 4 V), 3.5 mA each - Sensitivity:
31 mV/Pa (-30 dBV) - Operating relative humidity:
Max. 90% at 40 °C - Matrix reference:
Center of the capsule holder - Mixing to B-format:
W = FLU + FRD + BLD + BRU
X = FLU + FRD – BLD – BRU
Y = FLU – FRD + BLD – BRU
Z = FLU – FRD – BLD + BRU
