Sennheiser

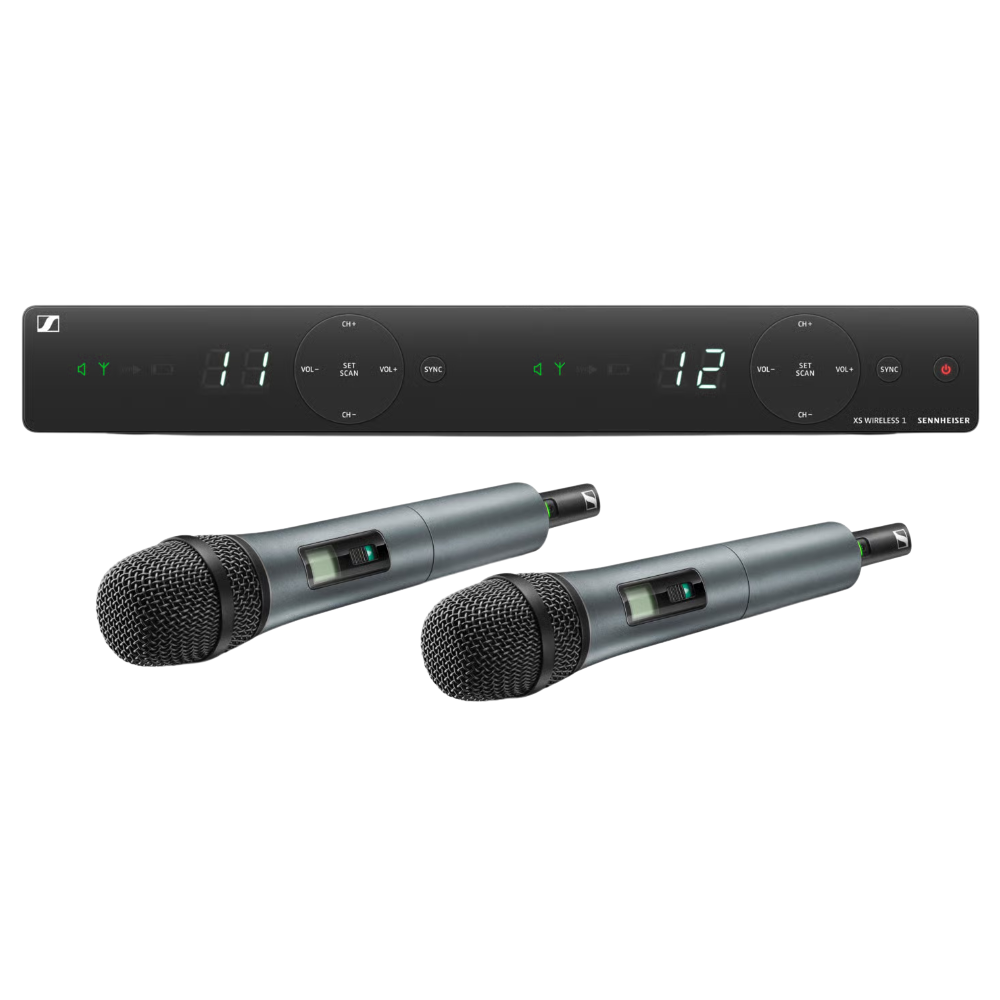

XSW 1-825 DUAL
XS Wireless 1 DUAL är ett 2-kanaligt trådlöst system för sångare och presentatörer. Dessa analoga UHF-system är utformade med användarvänlighet i åtanke och har en elegant tvåkanalig mottagare med inbyggda antenner och det strömlinjeformade gränssnittet från Sennheisers populära XS Wireless 1-serie.
- Telefonnummer: 040-546511
- E-Mail: contact@stagebrands.com
- TillverkareSennheiser
- VarumärkeSennheiser
Beskrivning
Art.nr: XSW 1-825 DUAL
Specifikationer
- Excellent live sound featuring Sennheiser's renowned evolution microphone capsules (e 825 or e 835)
- Antenna-switching 2-channel diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
- Excellent live sound featuring Sennheiser’s evolution microphone capsules
- Antenna-switching diversity via internal antennas
- Easy setup with automatic synchronization
Teknisk data
- Dimensions:
Ø 48 × L 180 mm
ca. 320 × 126.5 × 42 mm
ca. 260 × 50 mm - Connector:
XLR-3 - Microphone type:
Dynamic - Transducer principle:
Dynamic - Frequency response:
55 – 16,000 Hz - Pick-up pattern:
Cardioid - THD:
≤ 0.9% - Weight:
330 g (0.73 lbs)
ca. 620 g
ca. 245 g - Nominal impedance:
300 Ω (at 1 kHz) - Min. terminating impedance:
1 kΩ - Sensitivity:
1.8 mV/Pa (free field, no load at 1 kHz)
< 3 μV at 52 dB(A) rms S/N (at peak deviation) - Input sensitivity:
1.5 mV/Pa - AF frequency response:
50 – 16,000 Hz (–3 dB)
80 – 16,000 Hz - Audio adjustment range:
45 dB, adjustable in 5 dB steps - Line / Mic level:
20 dB, switchable - RF output power:
10 mW - Switching bandwidth:
Up to 24 MHz - Operating time:
Approx. 10 hrs - Modulation:
Wideband FM - Power supply:
12 V DC nom. / 300 mA
2 × AA batteries (1.5 V) - Output voltage:
1/4" (6.3 mm) unbalanced: +6 dBu (at peak deviation, 1 kHz AF) - Housing:
Rugged ABS housing - Frequency presets:
80 factory presets (8 banks × 10 channels) - Squelch:
Adjustable from 3 dBμV to 28 dBμV - Synchronization:
Transmitter: 2.4 GHz, low-power OQPSK (active during sync only) - Signal-to-noise ratio:
≥ 103 dBA - Receiver principle:
Double superheterodyne - Diversity principle:
Antenna switching diversity via internal antennas - Temperature range:
Storage: –20 °C to +70 °C
Operating: 0 °C to +40 °C
