Sennheiser
XSW 1-Cl1
Förstärk dina låtar. Välj XS WIRLESS 1 och lita på en solid trådlös överföring med upp till 10 kompatibla kanaler i ett stabilt UHF-band. XS WIRELESS 1 INSTRUMENT SET är ett lättanvänt allt-i-ett trådlöst system för gitarrister och basister, utmärkt för liveljud. Setet innehåller en intuitiv stationär mottagare för snabb installation och problemfri hantering, samt en kompakt sändare och en robust instrumentkabel.
- Telefonnummer: 040-546511
- E-Mail: contact@stagebrands.com
- TillverkareSennheiser
- VarumärkeSennheiser
Beskrivning
Art.nr: XSW 1-Cl1
Specifikationer
- Compact bodypack transmitter, robust instrument cable
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Teknisk data
- Dimensions:
Receiver: approx. 200 × 42 × 127 mm

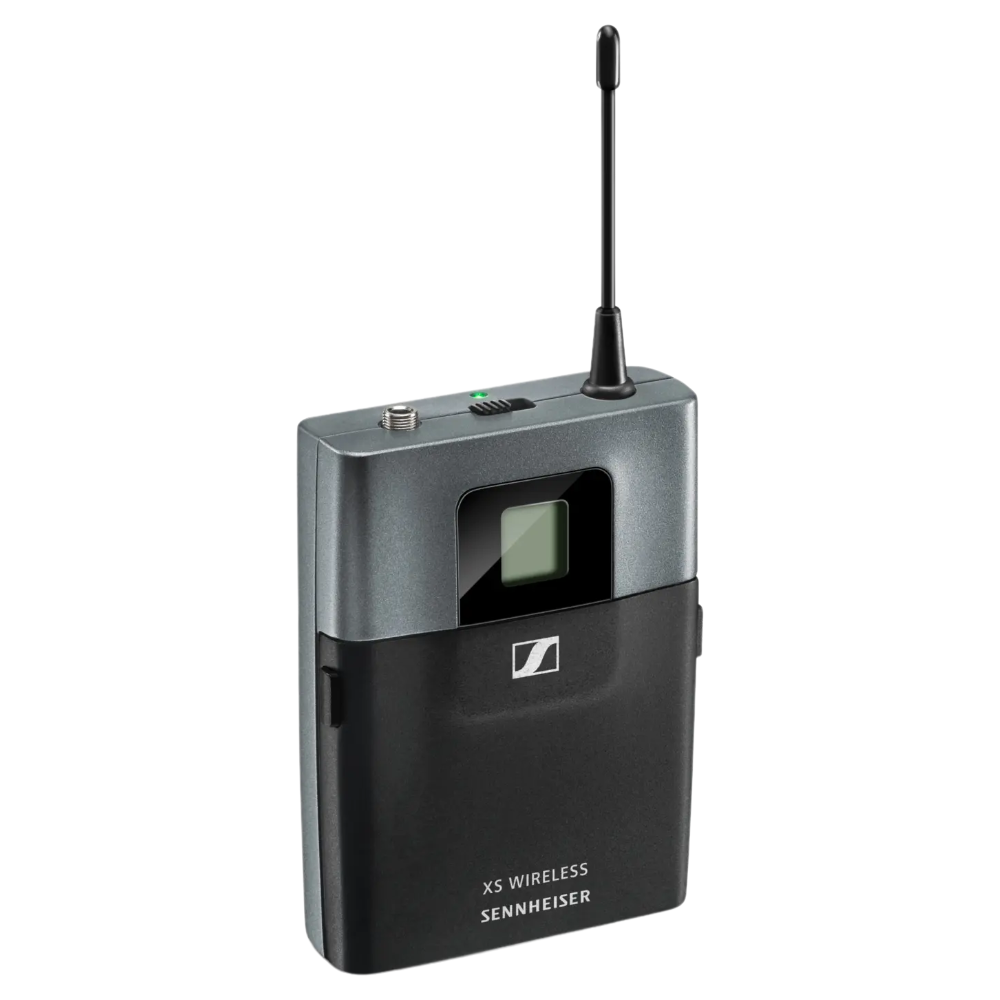

Bodypack transmitter: approx. 71 × 96 × 28 mm - THD (Total Harmonic Distortion):
≤ 0.9% - Weight:
Receiver: approx. 340 g
Transmitter: approx. 95 g - Signal-to-noise ratio:
≥ 103 dBA - RF output power:
10 mW - Switching bandwidth:
Up to 24 MHz - Operating time:
Approx. 10 hrs - Modulation:
Wideband FM - Power supply:

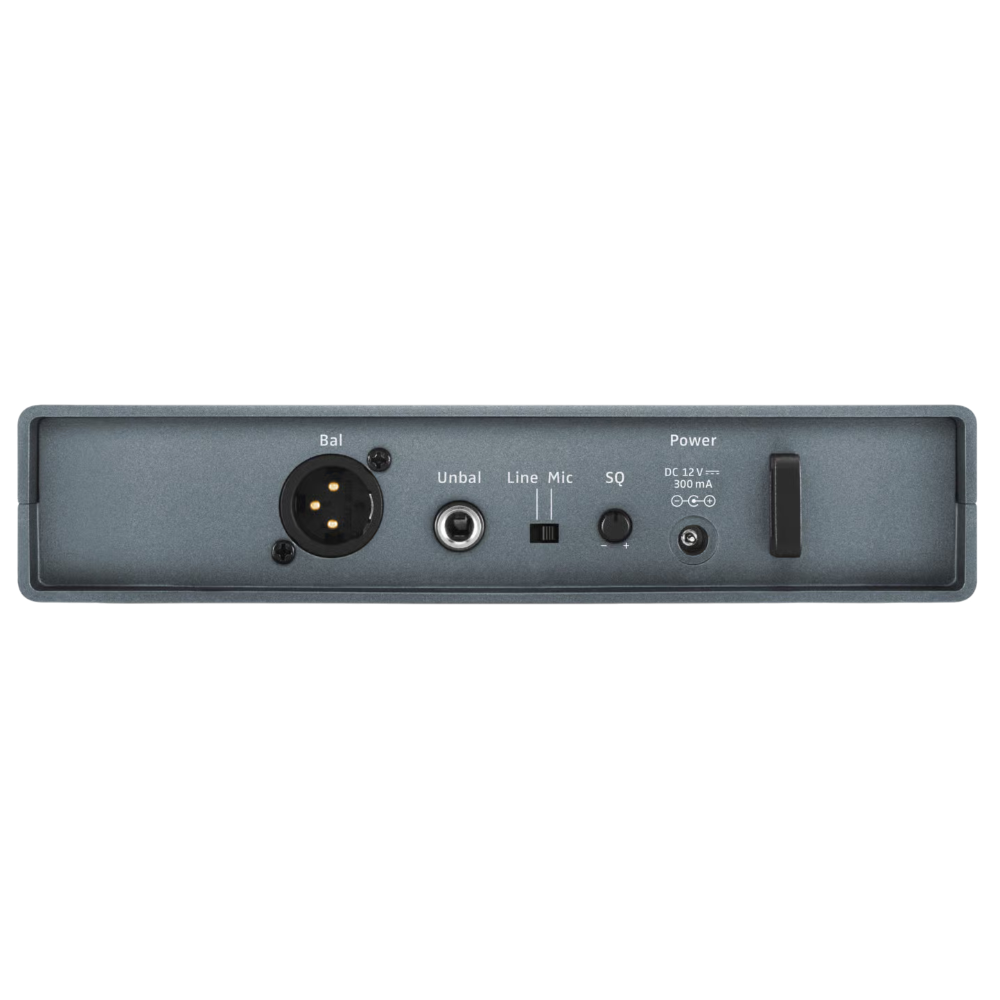

Receiver: 12 V DC nom. / 300 mA
Transmitter: 2 × AA batteries (1.5 V) - Output voltage:
1/4" (6.3 mm) unbalanced jack: +6 dBu
XLR balanced output: +12 dBu - Housing:
Rugged ABS housing - Frequency banks:
8 frequency banks, each with up to 10 factory-preset channels - Frequency range:
A: 548–572 MHz, GB: 606–630 MHz
B: 614–638 MHz
C: 766–790 MHz
D: 794–806 MHz
E: 821–832 MHz, 863–865 MHz
K: 925–937.5 MHz - Sensitivity:
< 3 μV at 52 dB(A) rms S/N - SPL for peak deviation:
130 dB - Squelch:
Adjustable from 3 dBμV to 28 dBμV (with pilot tone) - Synchronization:
2.4 GHz Low Power OQPSK (active only during sync) - Input sensitivity:
1.5 mV/Pa - AF frequency response:
Receiver: 50–16,000 Hz (–3 dB) - Adjustment range (transmitter):
0 to –30 dB, adjustable in 10 dB steps - Audio adjustment range:
45 dB, adjustable in 5 dB steps - Line / Mic level:
20 dB, switchable - Temperature range:
Operation: 0 °C to +40 °C
Storage: –20 °C to +70 °C - Receiver principle:
Double superheterodyne - Diversity principle:
Antenna switching diversity via internal antennas
